GSYVideoPlayer

中文文档

Supports IJKPlayer, Media3(EXOPlayer2), MediaPlayer, AliPlayer, implementing a multi-functional video player. (Please read the following instructions carefully, most questions can be answered below).

* HarmonyOS version openharmony-tpc/GSYVideoPlayer

If cloning is too slow or images are not visible, you can try to synchronize from the following addresses

• GitCode https://gitcode.com/ZuoYueLiang/GSYVideoPlayer
• Gitee：https://gitee.com/CarGuo/GSYVideoPlayer

Type	Function
Cache	Play while caching, using AndroidVideoCache; Media3(ExoPlayer) uses SimpleCache.
Protocols	h263\4\5, Https, concat, rtsp, hls, rtmp, crypto, mpeg, etc. (ijk mode format support)
Filters	Simple filters (mosaic, black and white, color filter, Gaussian, blur, etc. more than 20 kinds), animation, (watermark, multi-screen playback, etc.).
Frame images	Video first frame, video frame screenshots, composed player screenshots including UI, and video to gif function.
Playback	List playback, continuous list playback, gravity rotation and manual rotation, video's own rotation attribute, fast and slow playback, network video loading speed.
Screen	Adjust display ratio: default, 16:9, 4:3, fill; rotate screen angle during playback (0,90,180,270); mirror rotation.
Kernel	IJKPlayer, Media3(EXOPlayer), MediaPlayer, AliPlayer switching, custom kernel
Layout	Full screen and non-full screen two sets of layout switching, pure playback support without any operation controls, barrage function, inherited custom any layout.
Playback	Singleton playback, multiple simultaneous playback, video list sliding automatic playback, seamless playback of list switching detail pages.
Window	Small window, small window playback in multiple windows (including desktop).
Ads	Opening ads, skip ad support, interstitial ad function.
Subtitles	Unified external subtitle overlay supports SRT/WebVTT across IJK, Media3(EXOPlayer), and MediaPlayer; Media3 embedded cues can bridge to the same UI.
Dash	Media3(exo2) mode supports dash; the demo supports HLS master / DASH MPD adaptive quality track switching.
Stream	Supports metadata playback
Adapt 16k	ex_so adapts to 16K Page Size
openssl	Currently ex_so's arm64/x86_64 uses openssl 1.1.1w
FFmpeg	Currently ex_so's arm64/x86_64 uses FFmpeg 4.3
FFmpeg	Currently ex_so's arm64/x86_64 supports G711a(pcm_alaw)
More	No black screen when pausing front and back switching; multi-URL quality switching; Exo HLS/DASH adaptive quality; seamless switching support; keep-last-frame demo; WebVTT progress bar preview.
Customization	Customizable rendering layer, custom management layer, custom playback layer (control layer), custom cache layer.

Official Account	Juejin	Zhihu	CSDN	Jianshu
GSYTech	Click me	Click me	Click me	Click me

--------------Demo APK Download Address---------------

I. Using Dependencies

There are currently three hosting methods:

• MavenCentral: Available after version 11.0.0, all base class packages are published and hosted here.
• Github Package: Available from version 9.1.0, but before version 11.0.0, the basic dependencies of GSYIjkJava are still hosted on jitpack.
• Jitpack IO: Will continue to be released, but there is a random loss of packages on the hosting platform.

--- Version Update Instructions --- .

--- Recent Playback Features --- .

1. MavenCentral Reference (Recommended)

Since jitpack keeps losing packages, it has been migrated to MavenCentral. The usage is as follows:

First Add

groovyCopy
allprojects {
    repositories {
        ///...
        mavenCentral()
        maven { url "https://maven.aliyun.com/repository/public" }
    }
}

You can choose one of the following three and add it to the build.gradle under the module.

A. Direct Introduction

groovyCopy
 //Complete version introduction

implementation 'io.github.carguo:gsyvideoplayer:13.0.0'


//Whether AliPlayer mode is needed
implementation 'io.github.carguo:gsyvideoplayer-aliplay:13.0.0'

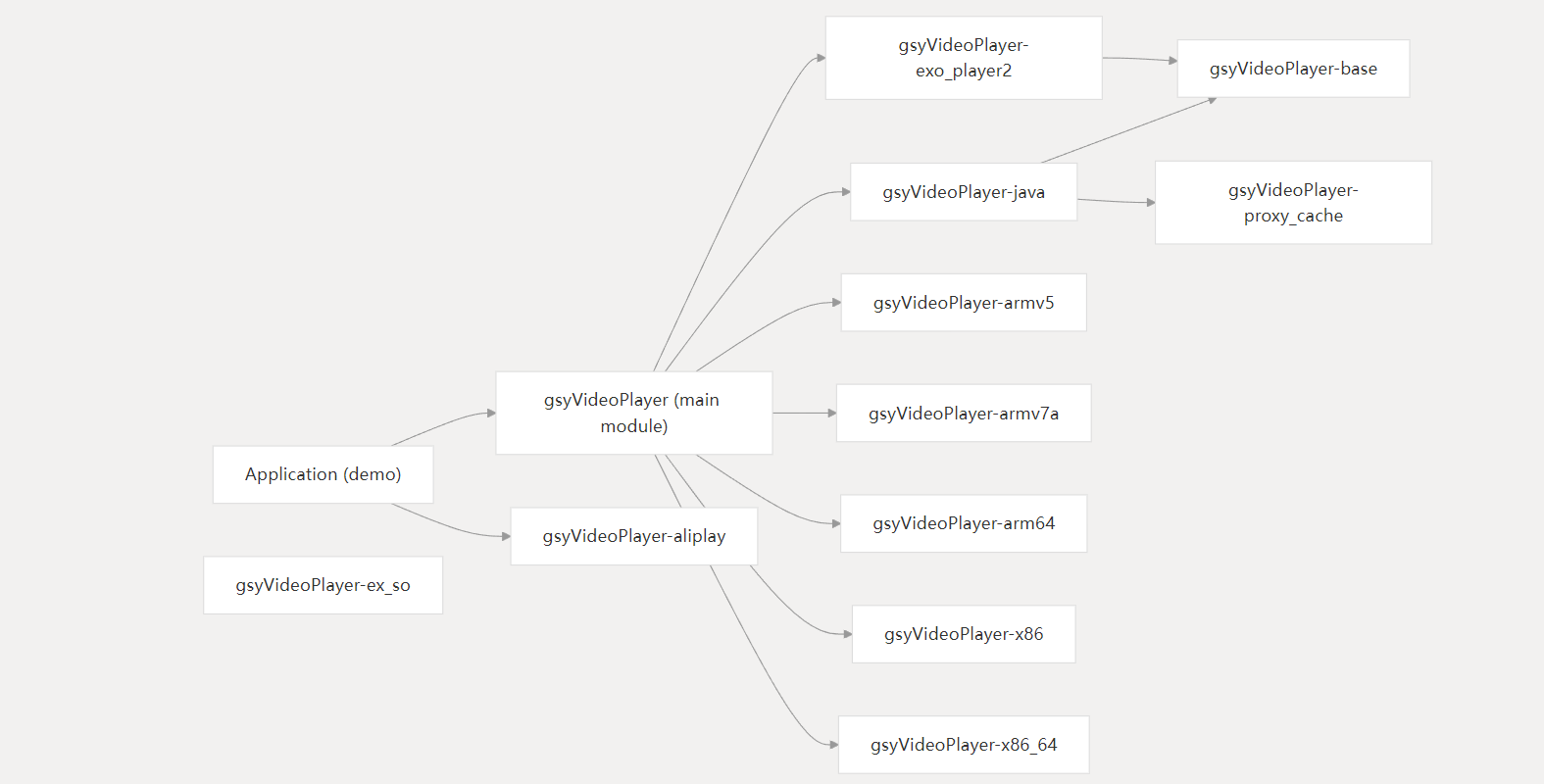

B. Add java and the so support you want:

groovyCopy
 implementation 'io.github.carguo:gsyvideoplayer-java:13.0.0'

 //Whether ExoPlayer mode is needed
 implementation 'io.github.carguo:gsyvideoplayer-exo2:13.0.0'

 //Whether AliPlayer mode is needed
 implementation 'io.github.carguo:gsyvideoplayer-aliplay:13.0.0'

 //so of ijk mode according to your needs
 implementation 'io.github.carguo:gsyvideoplayer-arm64:13.0.0'
 implementation 'io.github.carguo:gsyvideoplayer-armv7a:13.0.0'
 implementation 'io.github.carguo:gsyvideoplayer-armv5:13.0.0'
 implementation 'io.github.carguo:gsyvideoplayer-x86:13.0.0'
 implementation 'io.github.carguo:gsyvideoplayer-x64:13.0.0'

C. Support other format protocols (mpeg, rtsp, concat, crypto protocols, support 16k Page Size)

A and B normal versions support 263/264/265, etc. For mpeg encoding, there will be sound but no picture.
The so introduced by C supports mpeg encoding and other supplementary protocols, but the so package is relatively larger.

groovyCopy
 implementation 'io.github.carguo:gsyvideoplayer-java:13.0.0'

 //Whether ExoPlayer mode is needed
 implementation 'io.github.carguo:gsyvideoplayer-exo2:13.0.0'

 //Whether AliPlayer mode is needed
 implementation 'io.github.carguo:gsyvideoplayer-aliplay:13.0.0'

 //More ijk encoding support
 implementation 'io.github.carguo:gsyvideoplayer-ex_so:13.0.0'

D. Jetpack Compose Support (Optional, Unreleased)

⚠ The gsyvideoplayer-compose module is NOT yet published. The 13.0.0 coordinate below is reserved — it can only be resolved via ./gradlew :gsyVideoPlayer-compose:publishToMavenLocal, or by depending on the source module directly with implementation project(":gsyVideoPlayer-compose"). Wait for the official release tag for the first public artifact.

🛠 Toolchain note: the Compose module is verified on JDK 21 in CI (.github/workflows/*.yml — actions/setup-java java-version: 21) and JDK 17 locally (the module pins sourceCompatibility / targetCompatibility / jvmTarget = 17 in gsyVideoPlayer-compose/build.gradle). Both are fine; just make sure your local JDK is ≥ 17 so Kotlin 2.0.21 + AGP 8.6.1 can build.

The new gsyvideoplayer-compose module exposes Compose entries on top of the existing kernels and UI without touching any legacy code:

• Wrapper mode: a single Composable GSYVideoPlayerView { ... } embeds StandardGSYVideoPlayer into a Compose screen, with automatic Lifecycle bridge and release on dispose. An optional setUpKey: Any? parameter lets you trigger setUp again only when the data identity changes (idempotent).
• Native mode: GSYComposeHostPlayer + GSYPlayerController exposes a GSYPlayerSnapshot state stream plus an events: SharedFlow<GSYPlayerEvent> of one-shot edge events (Prepared / AutoComplete / Error), so the control UI can be drawn entirely in Compose while the rendering pipeline still uses the GSY multi-kernel core. The legacy setOnError / setOnComplete / setOnPrepared setters are still supported but @Deprecated in favour of the Flow API.

groovyCopy
// Source dependency (recommended for now while the module is unreleased):
implementation project(':gsyVideoPlayer-compose')

// Reserved coordinate — only resolves locally via publishToMavenLocal:
// implementation 'io.github.carguo:gsyvideoplayer-compose:13.0.0'
// compose-bom is api-exposed from the module; consumers still manage androidx.compose.* per their own project setup.

See doc/COMPOSE_USE.md. The sample app provides a Compose Demo entry with 24 runnable Compose Activities — covering Wrapper basics, Native detail/list/multi-window/auto-play/seamless-switch, plus P5 differentiating capabilities (filter, cache/download, ad pre-roll, subtitle, custom danmaku, EXO multi-source, parallel multi-window) and P5-2 modern app patterns (vertical short video, floating window, multi-type list, web mixed layout, audio-only, URL/local file, MediaCodec hardware switch, themed custom controls). DemoSamples.kt is a shared data object of test URLs, not a runnable Activity. Outstanding gaps and the rolling roadmap are tracked in doc/COMPOSE_BACKLOG.md.

2. Github Package Dependency Method (Recommended)

Since Jitpack often has the problem of random loss of historical packages, a new Github Package dependency method is added. The usage is as follows:

However, accessing github package requires a token to access, which is more troublesome, but it is stable.

groovyCopy
allprojects {
    repositories {
		//...
        maven {
            url 'https://maven.pkg.github.com/CarGuo/GSYVideoPlayer'

            // You can also use your own GitHub account and token
            // For convenience, I have provided a token for an infrequently used account here
            credentials {
                // your github name
                username = 'carsmallguo'
                // your github generate new token
                password = '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'
            }
        }
        maven {
            url "https://maven.aliyun.com/repository/public"
        }
        mavenCentral()

    }
}

• To generate your own token, you can see: https://docs.github.com/zh/authentication/keeping-your-account-and-data-secure/managing-your-personal-access-tokens

In theory, it is the avatar in the upper right corner - Settings - Developer Settings - Personal access tokens - tokens (classic) -
Generate new token (classic) - read:packages
Remember to choose permanent for the expiration time

Tip: this repository's root build.gradle already supports reading the GitHub Packages credentials from a Gradle property or environment variable, so you don't have to hard-code your own token in the source tree:

propertiesCopy
# ~/.gradle/gradle.properties (recommended for local builds)
githubReadUser=<your-github-name>
githubReadToken=<your-classic-token-with-read:packages>

Or in CI:

bashCopy
export GITHUB_READ_USER=<your-github-name>
export GITHUB_READ_TOKEN=<your-classic-token-with-read:packages>

The hard-coded carsmallguo / ghp_... pair is only kept as a fallback so first-time clones still build out of the box; it may be revoked at any time, so prefer providing your own.

You can choose one of the following three and add it to the build.gradle under the module.

A. Direct Introduction

groovyCopy
 //Complete version introduction
 implementation 'com.shuyu:gsyvideoplayer:13.0.0'


 //Whether AliPlayer mode is needed
 implementation 'com.shuyu:gsyvideoplayer-aliplay:13.0.0'

B. Add java and the so support you want:

groovyCopy
 implementation 'com.shuyu:gsyvideoplayer-java:13.0.0'

 //Whether ExoPlayer mode is needed
 implementation 'com.shuyu:gsyvideoplayer-exo2:13.0.0'

 //Whether AliPlayer mode is needed
 implementation 'com.shuyu:gsyvideoplayer-aliplay:13.0.0'

 //so of ijk mode according to your needs
 implementation 'com.shuyu:gsyvideoplayer-armv5:13.0.0'
 implementation 'com.shuyu:gsyvideoplayer-armv7a:13.0.0'
 implementation 'com.shuyu:gsyvideoplayer-arm64:13.0.0'
 implementation 'com.shuyu:gsyvideoplayer-x86:13.0.0'
 implementation 'com.shuyu:gsyvideoplayer-x64:13.0.0'

C. Support other format protocols (mpeg, rtsp, concat, crypto protocols, support 16k Page Size)

A and B normal versions support 263/264/265, etc. For mpeg encoding, there will be sound but no picture.
The so introduced by C supports mpeg encoding and other supplementary protocols, but the so package is relatively larger.

groovyCopy
 implementation 'com.shuyu:gsyvideoplayer-java:13.0.0'

 //Whether ExoPlayer mode is needed
 implementation 'com.shuyu:gsyvideoplayer-exo2:13.0.0'


 //Whether AliPlayer mode is needed
 implementation 'com.shuyu:gsyvideoplayer-aliplay:13.0.0'

 //More ijk encoding support
 implementation 'com.shuyu:gsyvideoplayer-ex_so:13.0.0'

3. Jitpack Introduction Method (will continue to be released, but not highly recommended)

Historical packages may have random packet loss, and it is not easy to supplement, see #4144:

First, add in the build.gradle under the project

groovyCopy
allprojects {
    repositories {
		//...
        maven { url 'https://jitpack.io' }
        maven { url "https://maven.aliyun.com/repository/public" }
        mavenCentral()
    }
}

You can choose one of the following three and add it to the build.gradle under the module.

A. Direct Introduction

groovyCopy
 //Complete version introduction

 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer:v13.0.0'


 //Whether AliPlayer mode is needed
 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer-aliplay:v13.0.0'

B. Add java and the so support you want:

groovyCopy
 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer-java:v13.0.0'

 //Whether ExoPlayer mode is needed
 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer-exo2:v13.0.0'

 //Whether AliPlayer mode is needed
 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer-aliplay:v13.0.0'

 //so of ijk mode according to your needs
 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer-arm64:v13.0.0'
 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer-armv7a:v13.0.0'
 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer-armv5:v13.0.0'
 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer-x86:v13.0.0'
 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer-x64:v13.0.0'

C. Support other format protocols (mpeg, rtsp, concat, crypto protocols, support 16k Page Size)

A and B normal versions support 263/264/265, etc. For mpeg encoding, there will be sound but no picture.
The so introduced by C supports mpeg encoding and other supplementary protocols, but the so package is relatively larger.

groovyCopy
 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer-java:v13.0.0'

 //Whether ExoPlayer mode is needed
 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer-exo2:v13.0.0'

 //Whether AliPlayer mode is needed
 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer-aliplay:v13.0.0'

 //More ijk encoding support
 implementation 'com.github.CarGuo.GSYVideoPlayer:gsyvideoplayer-ex_so:v13.0.0'

---

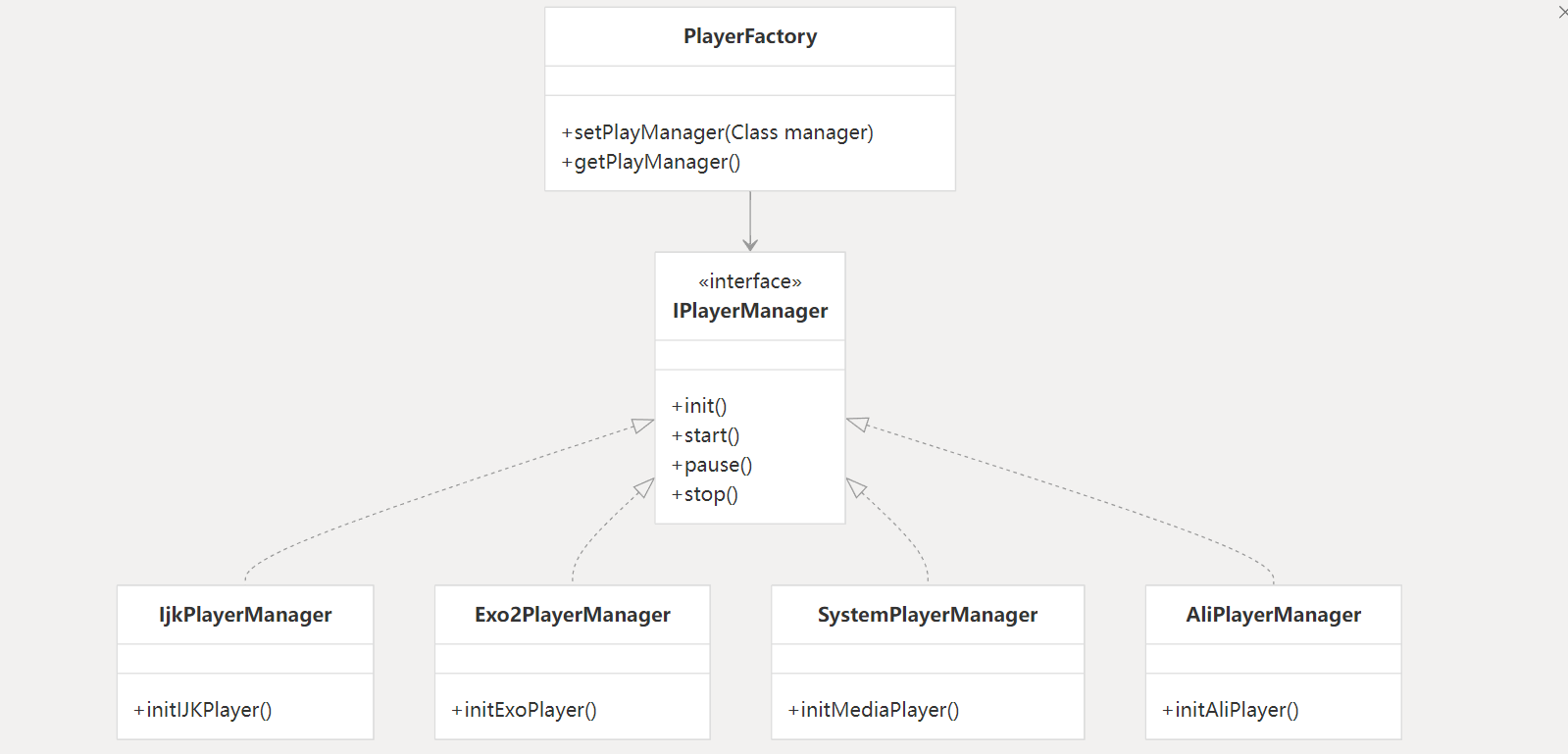

Global switching support in code (for more, please refer to the documentation and demo below)

//EXOPlayer kernel, supports more formats
PlayerFactory.setPlayManager(Exo2PlayerManager.class);
//System kernel mode
PlayerFactory.setPlayManager(SystemPlayerManager.class);
//ijk kernel, default mode
PlayerFactory.setPlayManager(IjkPlayerManager.class);
//aliplay kernel, default mode
PlayerFactory.setPlayManager(AliPlayerManager.class);

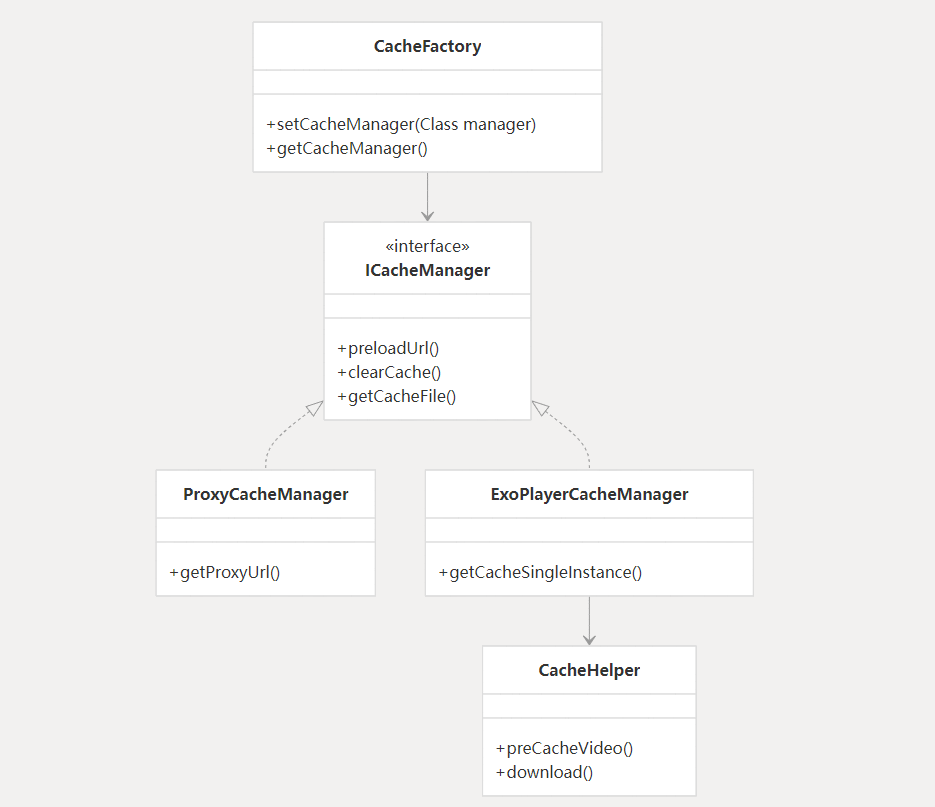

//exo cache mode, supports m3u8, only supports exo
CacheFactory.setCacheManager(ExoPlayerCacheManager.class);
//Proxy cache mode, supports all modes, does not support m3u8, etc., default
CacheFactory.setCacheManager(ProxyCacheManager.class);



//Switch rendering mode
GSYVideoType.setShowType(GSYVideoType.SCREEN_MATCH_FULL);
//Default display ratio
GSYVideoType.SCREEN_TYPE_DEFAULT = 0;
//16:9
GSYVideoType.SCREEN_TYPE_16_9 = 1;
//4:3
GSYVideoType.SCREEN_TYPE_4_3 = 2;
//Full screen cropping display, for normal display CoverImageView it is recommended to use FrameLayout as the parent layout
GSYVideoType.SCREEN_TYPE_FULL = 4;
//Full screen stretching display, when using this attribute, it is recommended to use FrameLayout for surface_container
GSYVideoType.SCREEN_MATCH_FULL = -4;
/***
 * Custom display ratio under SCREEN_TYPE_CUSTOM
 * @param screenScaleRatio Aspect ratio, such as 16:9
 */
public static void setScreenScaleRatio(float screenScaleRatio)


//Switch drawing mode
GSYVideoType.setRenderType(GSYVideoType.SUFRACE);
GSYVideoType.setRenderType(GSYVideoType.GLSURFACE);
GSYVideoType.setRenderType(GSYVideoType.TEXTURE);


//ijk close log
IjkPlayerManager.setLogLevel(IjkMediaPlayer.IJK_LOG_SILENT);


//exoplayer custom MediaSource
ExoSourceManager.setExoMediaSourceInterceptListener(new ExoMediaSourceInterceptListener() {
    @Override
    public MediaSource getMediaSource(String dataSource, boolean preview, boolean cacheEnable, boolean isLooping, File cacheDir) {
        //Customizable MediaSource
        return null;
    }
});

--- More dependency methods, please click -

II. Other Recommendations

* My technical community: Juejin

* QQ group, welcome if interested (usually a lot of chitchat and complaints, because the number of people is saturated, it's just daily nonsense, no one solves problems): ~~

174815284~~ , New group: 992451658 .

* Flutter Github Client , Compose Github Client , React Native Github Client , Weex Github Client , Native Kotlin Github Client

* RxFFmpeg Android audio and video editing tool

* oarplayer Rtmp player, based on MediaCodec and srs-librtmp, does not rely on ffmpeg

* HarmonyOS version openharmony-tpc/GSYVideoPlayer

III. Documentation Wiki

Document	Portal
Usage Instructions	--- Simple usage, quick start documentation
Recommended Reading	--- Basic audio and video knowledge that mobile developers must know 1, --- Basic audio and video knowledge that mobile developers must know 2
Project Analysis Description	--- Project analysis description, including project architecture and analysis
API Documentation Entrance	--- Usage instructions, API documentation - Entrance
FAQ Entrance	--- FAQ - Entrance (most of the problems you encounter are solved here)
Encoding Format	--- IJK so file configuration format description
Compile Custom SO	--- IJKPlayer Compile Custom SO - Entrance
Version Update Instructions	--- Version Update Instructions - Entrance
compileSdk too high	--- #3514

More visible: https://codewiki.google/github.com/carguo/gsyvideoplayer

IV. Running Effect

• 1. Open a playback (rotation, mirror, fill)

<img src="./img/11.gif" width="240px" height="426px"/>

• 2. List/Detail Mode (animation, rotation, small window)

<div> <img src="./img/22.gif" width="240px" height="426px"/> <img src="./img/33.gif" width="240px" height="426px"/> <img src="./img/44.gif" width="240px" height="426px"/> </div>

• 3. Barrage

<img src="./img/55.gif" width="240px" height="426px"/>

• 4. Filters and GL animation

<img src="./img/09.gif"/>

• 6. Background filled with blur playback

<img src="./img/99.png" width="426px" height="240px"/>

• 7. Progress bar small window preview

<img src="./img/07.gif" height="240px"/>

The demo now uses a WebVTT thumbnail track for seek preview instead of extracting many frames from the original video on the client. The VTT can point to separate images or sprite coordinates:

textCopy
WEBVTT

00:00:00.000 --> 00:00:01.000
160p-00001.jpg#xywh=0,0,284,160

Library APIs include GSYVideoPreviewVttParser, GSYVideoPreviewProvider, and GSYVideoPreviewFrame. The app layer loads the frame image and crops the sprite area if needed. See PreViewGSYVideoPlayer#setPreviewVttUrl(String previewVttUrl).

V. Recent Versions

v13.0.0 (2026-05-07)

• Add Exo HLS master / DASH MPD adaptive quality demo and recent playback feature guides.
• Add unified SRT/WebVTT external subtitle support across IJK, System, and Media3.
• Add WebVTT seek preview, keep-last-frame demo, player screenshots, and GL effect improvements.
• Improve multi-URL quality switching, player core error handling, Exo cache lifecycle, and GIF cleanup.
• Fix subtitle loader release/resume during detach, fullscreen, and small-window transitions.
• Fall back to non-cache playback when the Exo cache folder is locked, and avoid stale hadCached state.
• Fix SurfaceView screenshot bitmap cleanup and stale preview VTT async provider overwrite.

v12.1.0 (2026-04-01)

• update media3 1.10.0
• ex_so: fix ex_so (x86_64) https #4238

v12.0.0 (2026-03-13)

• ex_so: update ffmpeg 4.3
• ex_so: x86_64 support 16k page size
• ex_so: armv7a update ffmpeg n4.3
• ex_so: #4224 add common-page-size for 64-bit linker flags for Stack Canary
• fix #4225 ff_hevc_sao_band_filter_neon_8+100)
• #4178 exo player rtmp fix 16k
• #4226 Fix NPE in Kotlin implementations of ExoMediaSourceInterceptListener
• #4228 Fix fullscreen player requiring two clicks to resume from paused state
• Update mediaVersion to 1.9.2
• fix #4218 support export exo cache
• Update minSdk to 23 and media version to 1.9

v11.3.0 (2025-12-05)

• link #3019
• fix #4211

v11.2.0 (2025-11-25)

• fix #4169
• fix #4174
• fix #4171
• add new function with clearVideoSurface [IjkExo2MediaPlayer]
• fix #4199
• fix #4204

v11.1.0 (2025-08-04)

• update media3 1.8.0

v11.0.0 (2025-07-10)

• Update and migrate underlying dependencies
• fix #4140

More versions, please check: Version Update Instructions

VI. About Issues

Before asking questions, please refer to the documents and instructions above, and reproduce the problem in the Demo.

Problem description:

1. Which page in which Demo.
2. Problem manifestation and reproduction steps.
3. Supplementary video stream url and screenshots of the problem.
4. Supplementary model and Android version of the problem.

VII. Obfuscation

-keep class com.shuyu.gsyvideoplayer.video.** { *; }
-dontwarn com.shuyu.gsyvideoplayer.video.**
-keep class com.shuyu.gsyvideoplayer.video.base.** { *; }
-dontwarn com.shuyu.gsyvideoplayer.video.base.**
-keep class com.shuyu.gsyvideoplayer.utils.** { *; }
-dontwarn com.shuyu.gsyvideoplayer.utils.**
-keep class com.shuyu.gsyvideoplayer.player.** {*;}
-dontwarn com.shuyu.gsyvideoplayer.player.**
-keep class tv.danmaku.ijk.** { *; }
-dontwarn tv.danmaku.ijk.**
-keep class androidx.media3.** {*;}
-keep interface androidx.media3.**

-keep class com.shuyu.alipay.** {*;}
-keep interface com.shuyu.alipay.**

-keep public class * extends android.view.View{
    *** get*();
    void set*(***);
    public <init>(android.content.Context);
    public <init>(android.content.Context, java.lang.Boolean);
    public <init>(android.content.Context, android.util.AttributeSet);
    public <init>(android.content.Context, android.util.AttributeSet, int);
}

If it is an Alibaba Cloud player, you can refer to its documentation ( https://help.aliyun.com/document_detail/124711.html?spm=a2c4g.124711.0.0.7fa0125dkwUPoU
), you need to add some keep rules:

-keep class com.alivc.**{*;}
-keep class com.aliyun.**{*;}
-keep class com.cicada.**{*;}
-dontwarn com.alivc.**
-dontwarn com.aliyun.**
-dontwarn com.cicada.**

Warm Reminder

If cloning is too slow, you can try downloading from Gitee

Regarding customization and problems, please refer to the FAQ, demo, and issues first.

Learn more about basic audio and video common sense, and understand containers, audio and video encoding, ffmpeg, and the differences in mediacodec.
Try to avoid asking why others can play.

The player is highly customizable. For customization, please refer to the demo and read the source code. There are many functions now, and the demo is constantly being updated.

Some new functions and project structures are also constantly being adjusted.

Welcome to ask questions, thank you.

Dependency Size Reference

It is recommended to use ndk filtering, please refer to Reference 4: 4. NDK so support

Star History Chart

Warm Reminder

Open source projects mainly provide communication and learning, do not provide technical support, and do not accept business cooperation, purely public interest open source

License

Please refer to the IJKPlayer and AndroidVideoCache related agreements.
The project started from jiecao, and was refactored after some changes.
Occasionally, some variable and method names may still have a shadow of jiaozi, but it is basically a new project.
