Features

Production Features

Manage and dynamically update lower thirds for casters
Track matchups and scores to automatically generate overlays for ingame, talks and breaks
Apply consistent theming across all generated overlays
Twitch integration to create predictions and show state in stream (requires a Twitch-App)

League Features

Pregame

Lobby information with all players and op.gg links
Custom Champ Select overlay (Implementation of lol-pick-ban-ui)
Recording and Replay of Champselect
Rune overview (to kill time during spectator delay, game needs to be live)

Ingame

[!IMPORTANT]
A lot of these features are impacted by the removal of the LiveEvents API and the introduction of Vanguard. Level ups, item purchases, the killfeed and inhibitor timers should still work.

Custom Scoreboard
Leader boards for Gold and Level + XP
Animations for level ups and item purchases
Animations for events (Baron | Dragons | Herald)
Custom killfeed
Power-Play timer for Baron and Elder Dragon
Inhibitor timers

Postgame

Screens showing postgame stats

Overview
Pick order
Item builds
Damage graphs
Gold graph

Valorant Features

Status 13.03.2023: VALORANT features are currently not maintained. While we focus on League, we will not actively support Valorant Features of the toolkit.

Pregame

Custom Agent select overlay
Loading screen overlay

Postgame

Stats for the winning team
MVP screen

Requirements & Limitations

Champion Select / ingame overlays require our Observer Tool to send game data
Some features require a Riot API Key
Some features do not work on Tournament Realm

Installation & Docs

Troubleshooting & Help

Some common issues are listed in the Wiki.

If your problem is not listed in the Wiki, please check if there are any open issues. If not, open a new issue and include any error messages you see and steps to reproduce the problem.

About Prod Toolkit

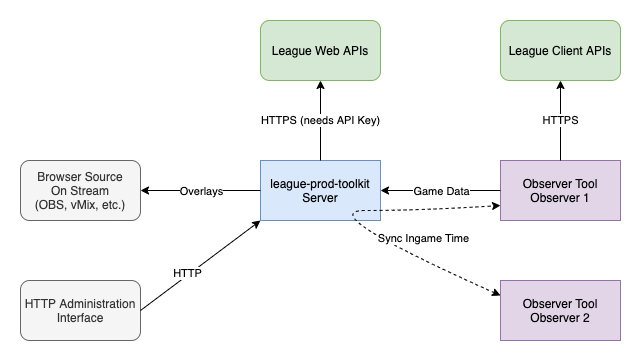

Architecture/Sample setup

This shows the prod toolkit running on a dedicated server, with observer PCs sending data and overlays integrated into OBS/vMix with a browser source.

Example Setup

Legend:

Magenta - Clients running the observer tool
Blue - The prod-toolkit
Green - An external API that is being connected to
Grey - Prod-toolkit interfaces

Developing

The developer documentation can be found in the wiki.

Legal Disclaimer

league-prod-toolkit was created under Riot Games' "Legal Jibber Jabber" policy using assets owned by Riot Games. Riot Games does not endorse or sponsor this project.
