SnakeOil XY

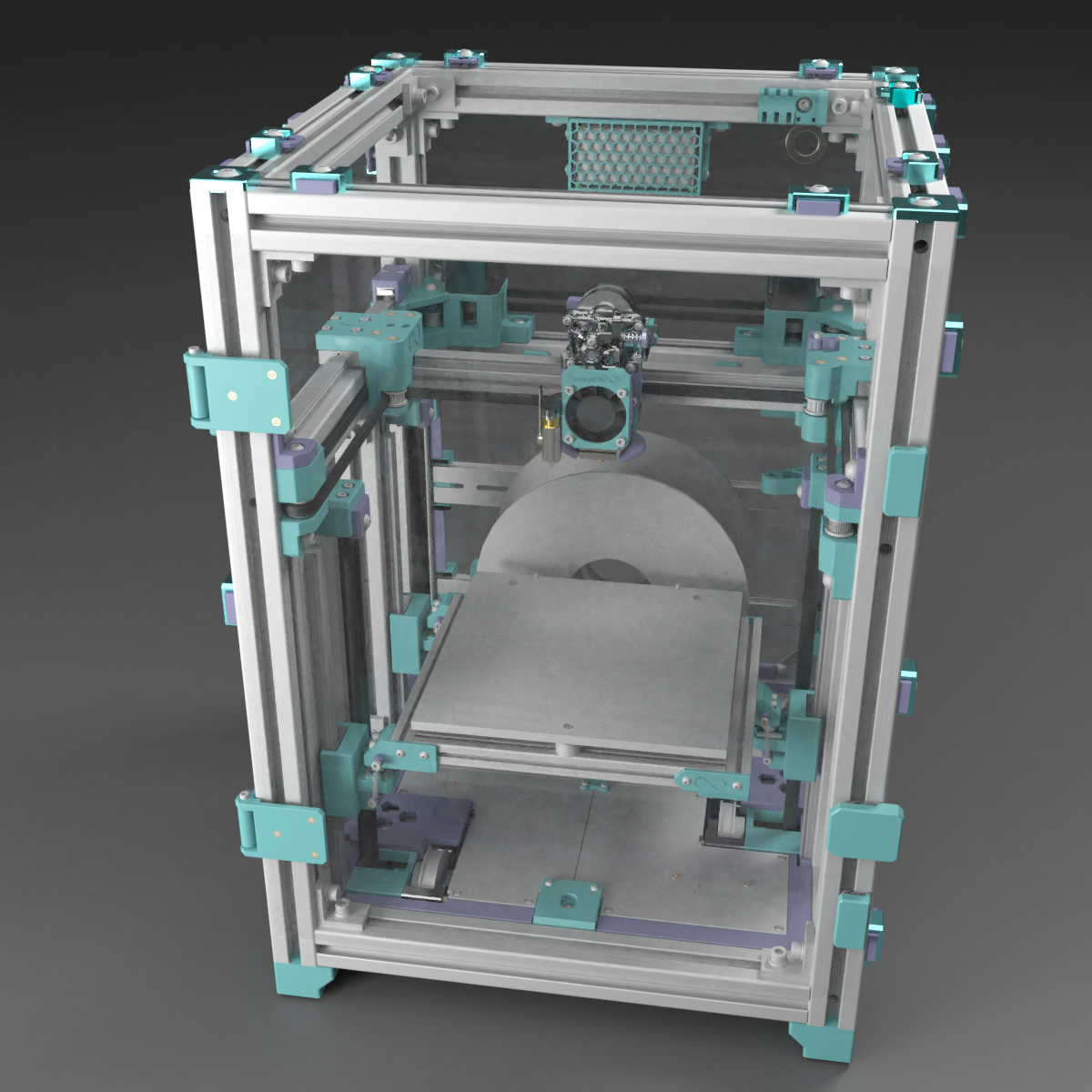

Fully open source configurable high speed CoreXY 3D printer. Inspired by HevORT, Voron, Annex Engineering and EVA2 design.

• Does not require any custom-machined parts or custom-cut panels.
• Can be selected one of the follwing kinematics.
  • Standard : Traditional corexy kinematic.
  • 4PR : High-performance machine with automatic squaring gantry capacity. This configuration uses custom Extended CoreXY kinematic (Mixed cartesian and corexy).
  • IDEX : Hybrid corexy IDEX.
• CoreXY, IDEX, and Extended-CoreXY kinematics.
• Designed to last, parts under stress are embedded with long bolts to handle the load.
• And our industry-leading SnakeOil technology :3

Beta 3 release (2023-01-28)

• Add IDEX variant(by Charles)
• Add 4PR variant with new Extended CoreXY kinematic
• Add klicky probe support(by Charles)
• New bed coupling kinematic using silicon spacers
• Add side-blower aux fan module
• Add EBB can toolhead board support
• Remove outdated components
• Merge toolhead design(1515 and 2020 gantry now use the same toolhead front/back/bottom design) and some small improvements on geometry

Features

<table> <thead> <tr> <th>Feature</th> <th>Credit/Inspiration by/Description</th> </tr> </thead> <tbody> <tr> <td>Selectable kinematic : CoreXY, Hibryd-CoreXY </td> <td>Added on beta3 release</td> </tr> <tr> <td>Selectable single or dual toolhead </td> <td>Added on beta3 release</td> </tr> <tr> <td>3 Point auto bed tramming</td> <td>HevORT, Wobble ring</td> </tr> <tr> <td>Belted Z</td> <td>Lulz bot, Voron</td> </tr> <tr> <td>Din mounter</td> <td>Voron</td> </tr> <tr> <td>Cross belt corexy belt path</td> <td>HevORT</td> </tr> <tr> <td>Eva compatible toolhead</td> <td>EVA</td> </tr> <tr> <td>Filament spoll in side chamber</td> <td>-</td> </tr> <tr> <td>Quick release panels</td> <td>Added on beta2 release</td> </tr> <tr> <td>Built-in chamber air filter</td> <td>Added on beta1 release</td> </tr> <tr> <td>Auto build sheet detect and profile loader</td> <td>Work in progress</td> </tr> <tr> <td>AIO filament runout + jam detector + width sensor</td> <td>Work in progress</td> </tr> <tr> <td>Modular sensor add-on system</td> <td>Work in progress</td> </tr> <tr> <td>Probe(bed mesh) on print area only</td> <td>Added on beta2 using klipper macro</td> </tr> <tr> <td>Screwless belt mounter</td> <td>VzBot</td> </tr> <tr> <td>Bed fan</td> <td>Qholia</td> </tr> </tbody> </table>

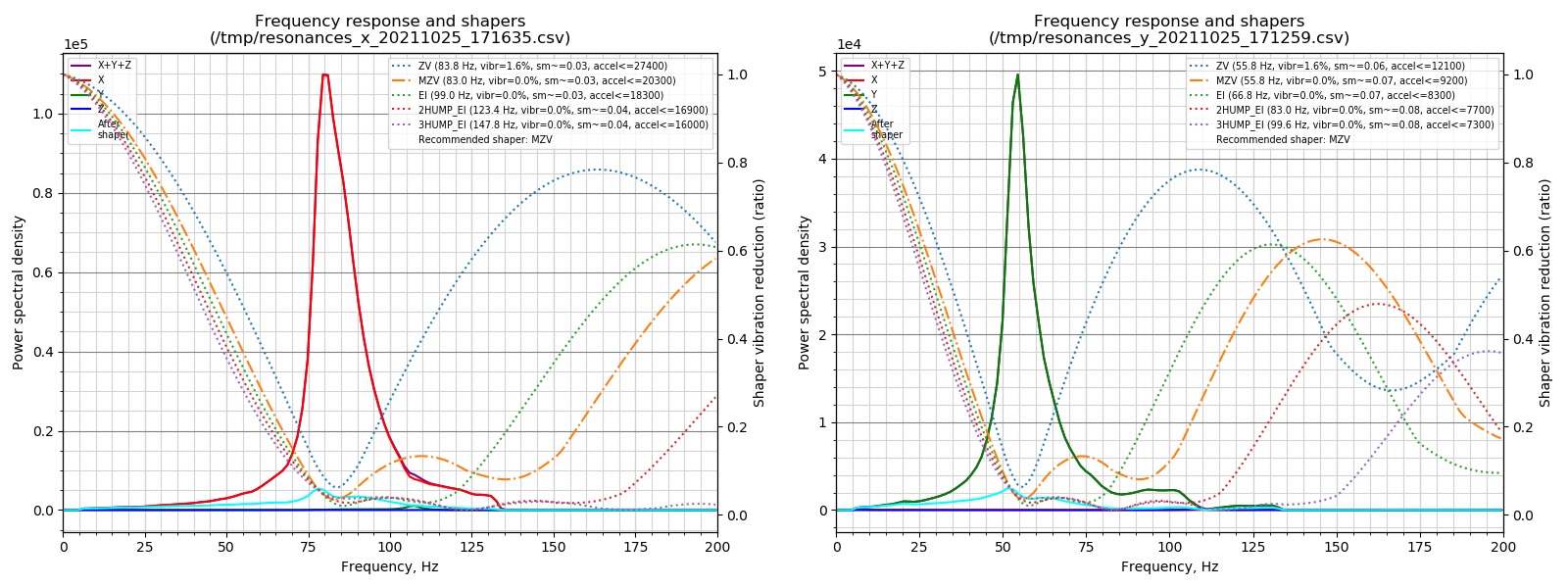

Input shaper test result (beta2 1515 gantry with Sherpa mini extruder)

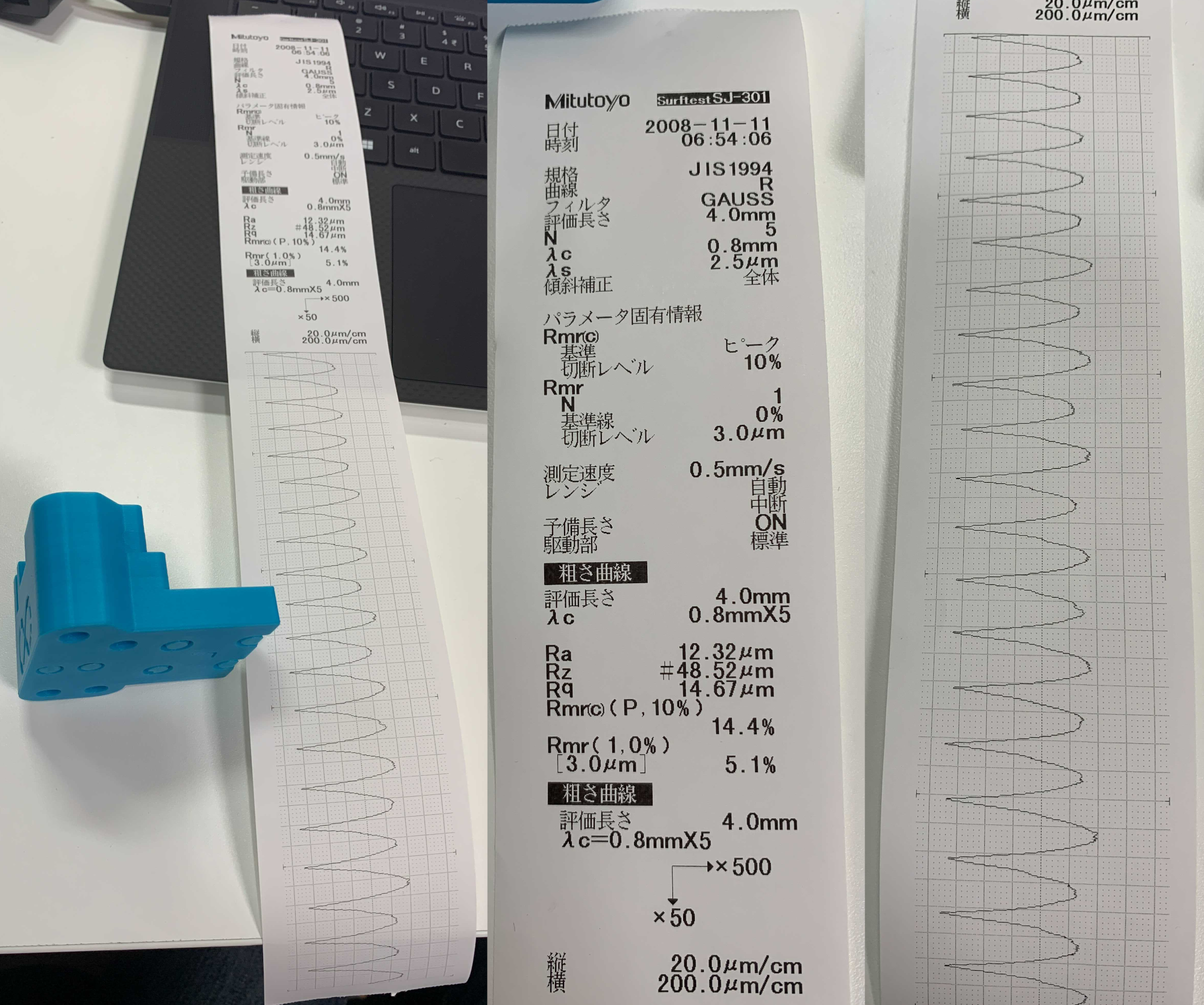

Layer pitch measure (beta2 1515 gantry with Sherpa mini extruder)

• Measure result provided by 株式会社グーテンベルク
• PLA, 0.4mm nozzle, sliced with Cura 4.12.1 using "CoreXY FAST" profile.

Demo videos

<table> <thead> <tr> <th></th> <th align="center">Bed coupling</th> <th align="center">SpeedBoatRace</th> <th align="center">Slow benchy</th> </tr> </thead> <tbody> <tr> <td>Video</td> <td align="center"><a href="https://youtu.be/pQPhEykthEg" rel="nofollow"> <img src="https://img.youtube.com/vi/pQPhEykthEg/0.jpg" alt="Bed coupling"/></a></td> <td align="center"><a href="https://youtu.be/tPoP6zmxsCY" rel="nofollow"> <img src="https://img.youtube.com/vi/tPoP6zmxsCY/0.jpg" alt="Speed benchy"/></a></td> <td align="center"><a href="https://youtu.be/kLawpgAUUPE" rel="nofollow"> <img src="https://img.youtube.com/vi/kLawpgAUUPE/0.jpg" alt="Speed benchy"/></a></td> </tr> <tr> <td>Hardware version</td> <td align="center">beta1</td> <td align="center">beta2</td> <td align="center">beta2</td> </tr> </tbody> </table>

BOM

SnakeOil-XY currently has 2 versions

<code>Both machines are practicaly identical, only difference is the build volume. </code>

180x180x180mm build volume (Standard)

• 180³mm BOM

250x240x230mm build volume (Large)

• 250³mm BOM

Manual

>>> Click here <<<

Firmware

>>> Click here <<<

Copyright Notice

• Sherpa mini extruder is an original work of Annex Engineering, modified parts using their source code/design files are re-released under ANNEX Engineering License.
• EVA2 is an original work of EVA-3D, modified parts using their source code/design files are re-released under GNU General Public License v3.0
• This printer design(SnakeOil XY), it's document and software are released under GNU General Public License v3.0
