Sonar Cryptography Plugin (CBOMkit-hyperion)

<!--- long-description-skip-begin -->

This repository contains a SonarQube Plugin that detects cryptographic assets
in source code and generates CBOM.
It is part of the CBOMKit toolset.

Table of Contents

• Version compatibility
• Supported languages and libraries
• Installation
• Using
• Example Output
• Build
• Help and troubleshooting
• Contribution Guidelines
• License

Version compatibility

Plugin Version	SonarQube Version
1.3.7 and up	SonarQube 9.9 (LTS) and up
1.3.2 and 1.3.6	SonarQube 9.8 (LTS) up to 10.8
1.2.0 to 1.3.1	SonarQube 9.8 (LTS) up to 10.4

Supported languages and libraries

Language	Cryptographic Library	Coverage
Java	JCA	100%
	BouncyCastle (light-weight API)	100%1
Python	pyca/cryptography	100%
Go	crypto (standard library)	100%2
	golang.org/x/crypto	Partial3

[!NOTE]
The plugin is designed in a modular way so that it can be extended to support additional languages and recognition rules to support more libraries.

• To add support for another language or cryptography library, see Extending the Sonar Cryptography Plugin to add support for another language or cryptography library
• If you just want to know more about the syntax for writing new detection rules, see Writing new detection rules for the Sonar Cryptography Plugin

Installation

[!NOTE]
To run the plugin, you need a running SonarQube instance with one of the supported
versions. If you don't have one but want to try the plugin, you can use the
included Docker Compose to set up a development environment. See
here for instructions.

Copy the plugin (the JAR file from the latest releases)
to $SONARQUBE_HOME/extensions/plugins and restart
SonarQube (more).

Using

The plugin provides new inventory rules (Cbomkit Cryptography Repository) regarding the use of cryptography for
the supported languages.
If you enable these rules, a source code scan creates a cryptographic inventory by creating a
CBOM with all cryptographic assets and writing
a cbom.json to the scan directory.

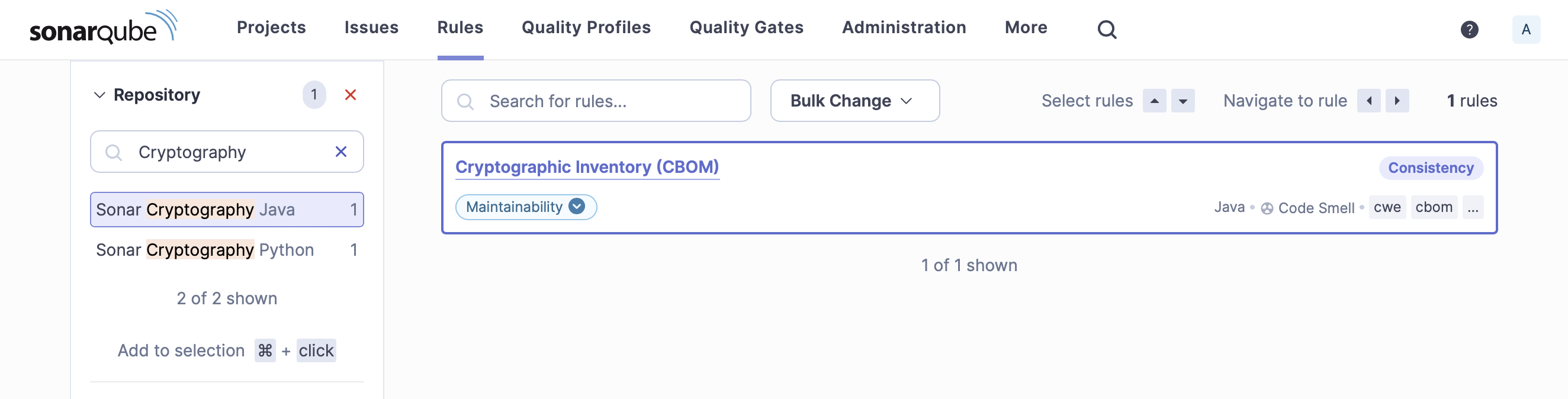

Add Cryptography Rules to your Quality Profile

This plugin incorporates rules specifically focused on cryptography.

To generate a Cryptography Bill of Materials (CBOM), it is mandatory to activate at
least one of these cryptography-related rules.

As of the current version, the plugin contains one single rule for creating a cryptographic inventory.
Future updates may introduce additional rules to expand functionality.

Scan Source Code

Now you can follow the SonarQube documentation
to start your first scan.

Visualizing your CBOM

Once you have scanned your source code with the plugin, and obtained a cbom.json file, you can use CBOMkit service to know more about it.
It provides you with general insights about the cryptography used in your source code and its compliance with post-quantum safety.
It also allows you to explore precisely each cryptography asset and its detailed specification, and displays where it appears in your code.

Example Output

The plugin generates a cbom.json file in CycloneDX CBOM format. Here's an example showing detected cryptographic assets:

jsonCopy
{
  "bomFormat": "CycloneDX",
  "specVersion": "1.6",
  "version": 1,
  "metadata": {
    "timestamp": "2026-01-20T10:58:39Z",
    "tools": {
      "services": [
        {
          "name": "CBOMkit",
          "provider": { "name": "PQCA" }
        }
      ]
    }
  },
  "components": [
    {
      "name": "SHA256",
      "type": "cryptographic-asset",
      "bom-ref": "0f4f522b-ef99-43b7-9f98-6e83b3b233ca",
      "evidence": {
        "occurrences": [
          {
            "line": 51,
            "location": "src/main/java/com/example/EncryptionConfig.java",
            "additionalContext": "java.security.MessageDigest#getInstance"
          }
        ]
      },
      "cryptoProperties": {
        "oid": "2.16.840.1.101.3.4.2.1",
        "assetType": "algorithm",
        "algorithmProperties": {
          "primitive": "hash",
          "cryptoFunctions": ["digest"],
          "parameterSetIdentifier": "256"
        }
      }
    },
    {
      "name": "AES128-GCM",
      "type": "cryptographic-asset",
      "bom-ref": "e006c3f1-912a-4de5-8399-79bf0f350cb9",
      "evidence": {
        "occurrences": [
          {
            "line": 29,
            "location": "src/main/java/com/example/aes/AESGCM.java",
            "additionalContext": "javax.crypto.Cipher#getInstance"
          }
        ]
      },
      "cryptoProperties": {
        "oid": "2.16.840.1.101.3.4.1",
        "assetType": "algorithm",
        "algorithmProperties": {
          "mode": "gcm",
          "primitive": "ae",
          "cryptoFunctions": ["decrypt"],
          "parameterSetIdentifier": "128"
        }
      }
    },
    {
      "name": "RSA-OAEP",
      "type": "cryptographic-asset",
      "bom-ref": "ff238e09-dd3d-44c4-ad49-34350f1d9cc7",
      "cryptoProperties": {
        "oid": "1.2.840.113549.1.1.7",
        "assetType": "algorithm",
        "algorithmProperties": {
          "mode": "ecb",
          "padding": "oaep",
          "primitive": "pke",
          "parameterSetIdentifier": "2048"
        }
      }
    }
  ],
  "dependencies": [
    {
      "ref": "secret-key-ref",
      "dependsOn": ["AES128-ref"]
    }
  ]
}

The CBOM includes:

• Algorithms: Hash functions, ciphers, key exchange mechanisms with their parameters
• Keys and secrets: Private keys, secret keys, and other cryptographic materials
• Evidence: Source file locations where each asset was detected
• Dependencies: Relationships between cryptographic assets (e.g., a secret key depending on an algorithm)

Build

bashCopy
# Build with tests
mvn clean package

# Build without tests (faster)
mvn clean package -DskipTests

# Build specific module
mvn clean package -pl java

# Format code (Google Java Format, AOSP style)
mvn spotless:apply

# Check formatting
mvn spotless:check

<details> <summary><strong>Adding packages to sonar-go-to-slang (Go support)</strong></summary>

Go cryptographic detection relies on sonar-go-to-slang for type resolution. The default binary includes common packages, but some cryptographic packages may require you to rebuild it with additional package export data.

When is this needed?

If you see "undefined: <identifier>" errors during type checking for packages like crypto/hmac, crypto/elliptic, or crypto/ecdsa, you need to add the missing package export data.

Steps to add a package

1. Generate the package export data file (.o file):

goCopy
//go:build ignore

package main

import (
    "fmt"
    "go/importer"
    "go/token"
    "os"
    "golang.org/x/tools/go/gcexportdata"
)

func main() {
    fset := token.NewFileSet()
    imp := importer.ForCompiler(fset, "gc", nil)
    pkg, err := imp.Import("crypto/hmac")  // <-- target package
    if err != nil {
        fmt.Fprintf(os.Stderr, "Error importing package: %v\n", err)
        os.Exit(1)
    }
    file, err := os.Create("packages/crypto_hmac.o")  // <-- output file
    if err != nil {
        fmt.Fprintf(os.Stderr, "Error creating file: %v\n", err)
        os.Exit(1)
    }
    defer file.Close()
    // CRITICAL: Pass nil for fset, NOT the fset used for import
    if err := gcexportdata.Write(file, nil, pkg); err != nil {
        fmt.Fprintf(os.Stderr, "Error writing export data: %v\n", err)
        os.Exit(1)
    }
    fmt.Printf("Successfully created package export data for %s\n", pkg.Path())
}

Run with go run gen_package.go, then delete the script.

CRITICAL: The gcexportdata.Write call must pass nil for the fset parameter. Passing the same fset used for import will embed absolute file paths, causing runtime errors.

2. Check for dependencies: Some packages depend on types from other packages. Common dependencies:

Package	May require
crypto/hmac	hash
crypto/cipher	io
crypto/* (most)	io, hash

3. Add mapping entry to mapping_generated.go in alphabetical order:

goCopy
"crypto/hmac": "crypto_hmac.o",

4. Rebuild the binary: ./make.sh build

File naming convention

Package Path	Export Data File
crypto/hmac	crypto_hmac.o
crypto/elliptic	crypto_elliptic.o
golang.org/x/crypto/bcrypt	x_crypto_bcrypt.o

</details>

Help and troubleshooting

If you encounter difficulties or unexpected results while installing the plugin with SonarQube, or when trying to scan a repository, please check out our guide Testing your configuration and troubleshooting to run our plugin with step-by-step instructions.

Contribution Guidelines

If you'd like to contribute to Sonar Cryptography Plugin, please take a look at our
contribution guidelines. By participating, you are expected to uphold our code of conduct.

We use GitHub issues for tracking requests and bugs. For questions
start a discussion using GitHub Discussions.

License

Apache License 2.0

Footnotes

1. We only cover the BouncyCastle light-weight API according to this specification ↩

2. All packages under crypto are covered except crypto/x509 ↩

3. Covers golang.org/x/crypto/hkdf, golang.org/x/crypto/pbkdf2, and golang.org/x/crypto/sha3 ↩
