Font23D
Font23D is a C++ library for creating a 3d mesh of any Text in the given True type font.
Demo: Font23D running on browser using webassembly
Compile the code
Install the dependancies
shsudo apt install libfreetype6-dev
Now just run the bash script to get the OBJ file output.
shsh compile.sh

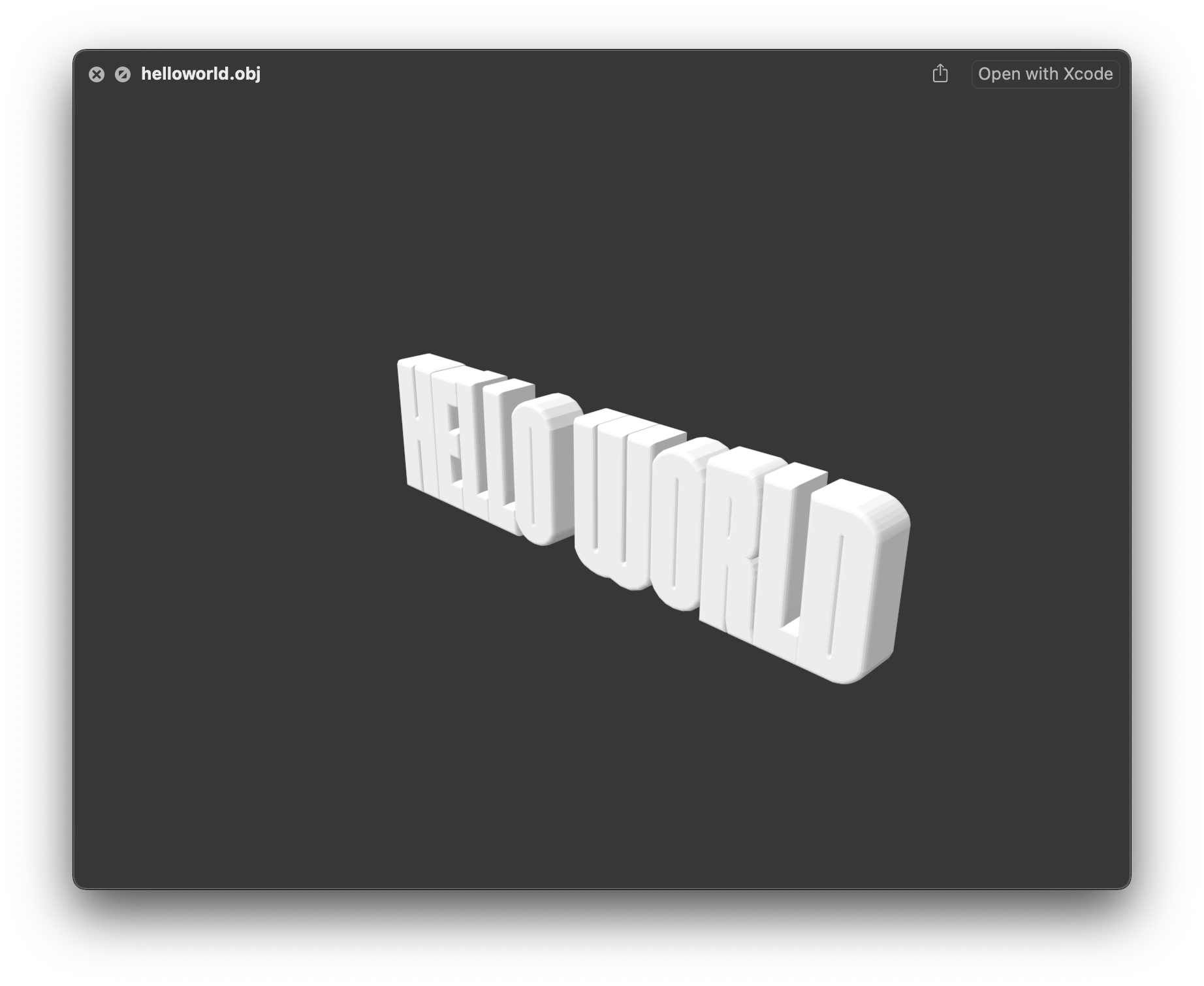

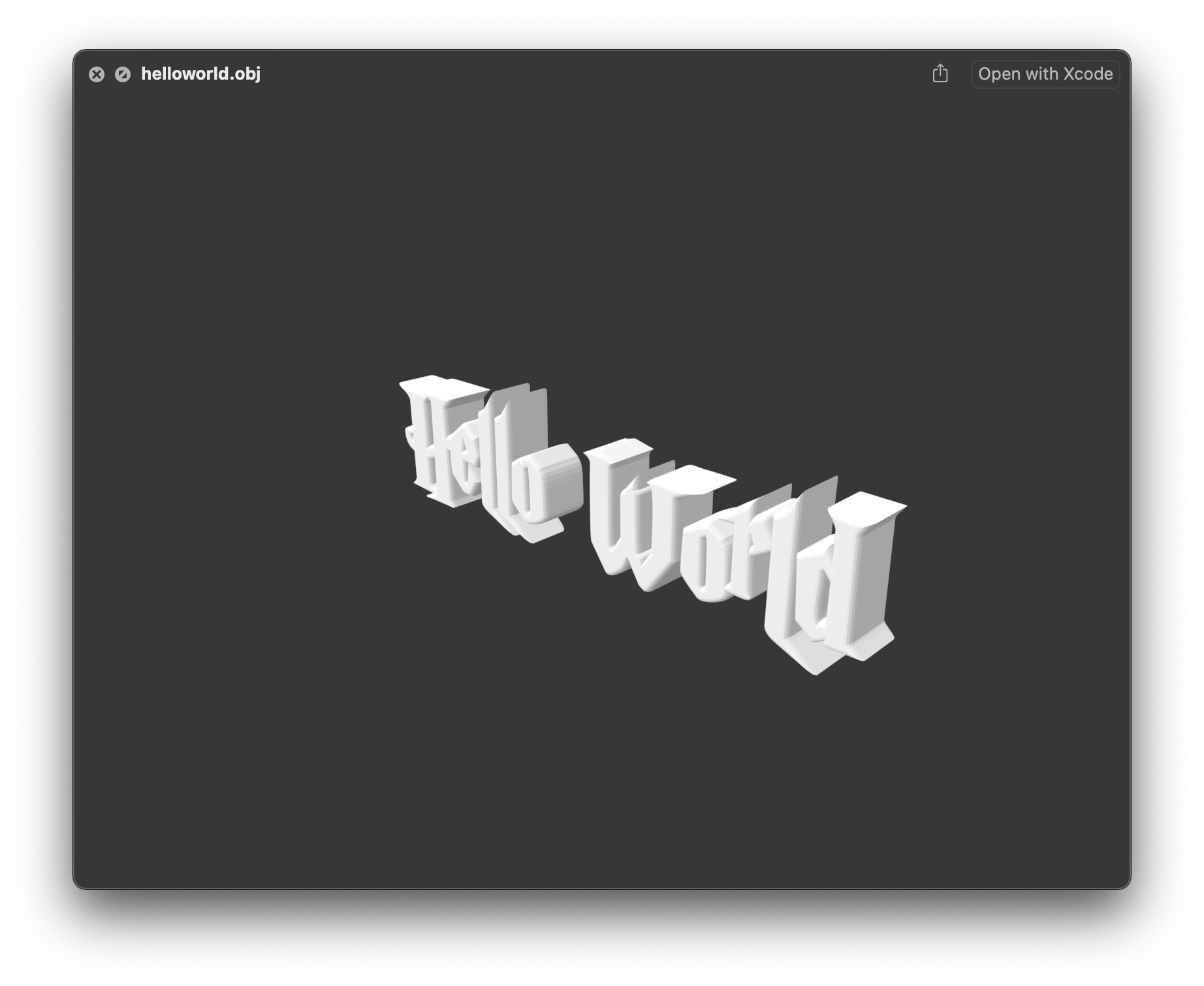

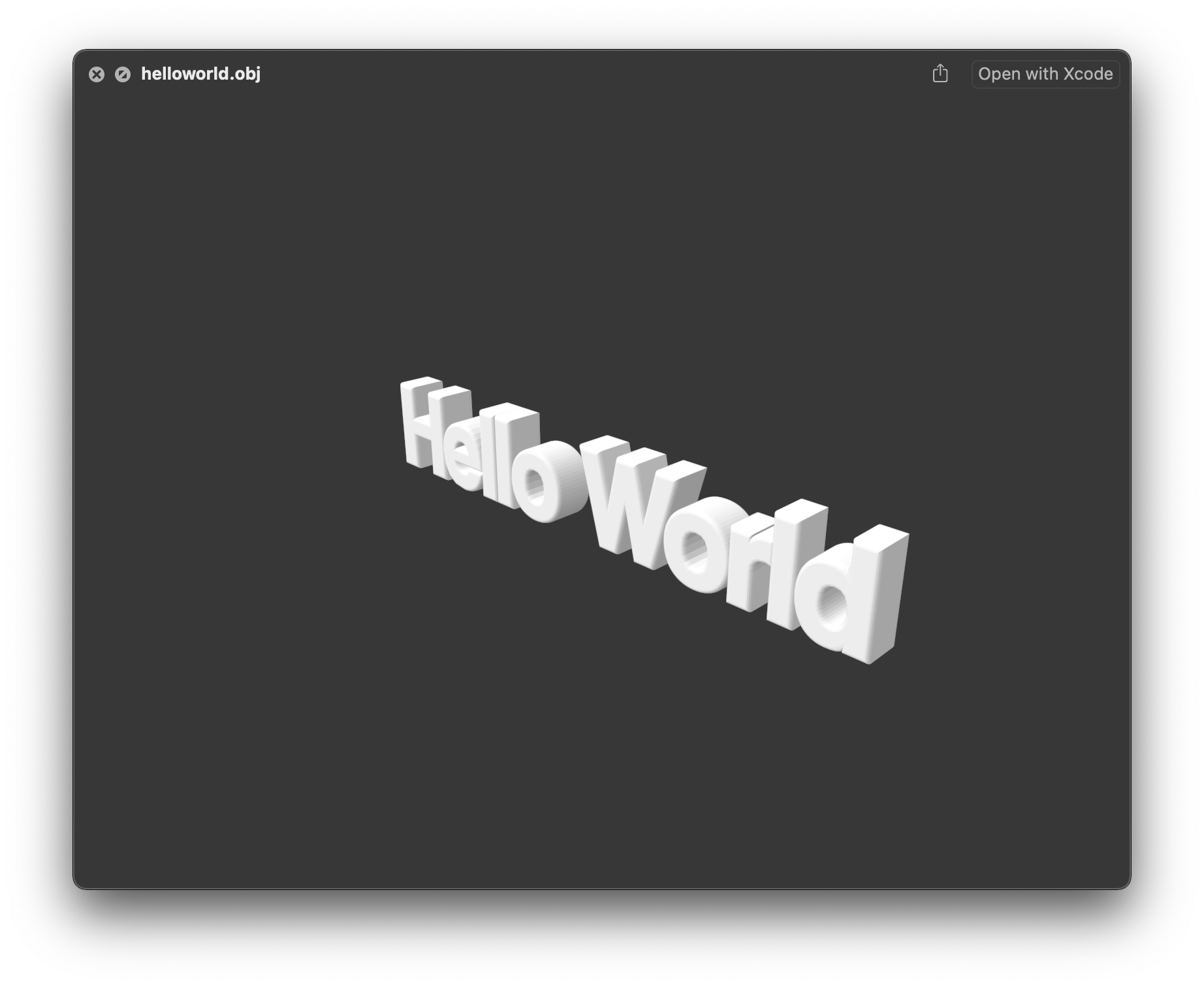

Sample Outputs
Below outputs are generated using different fonts

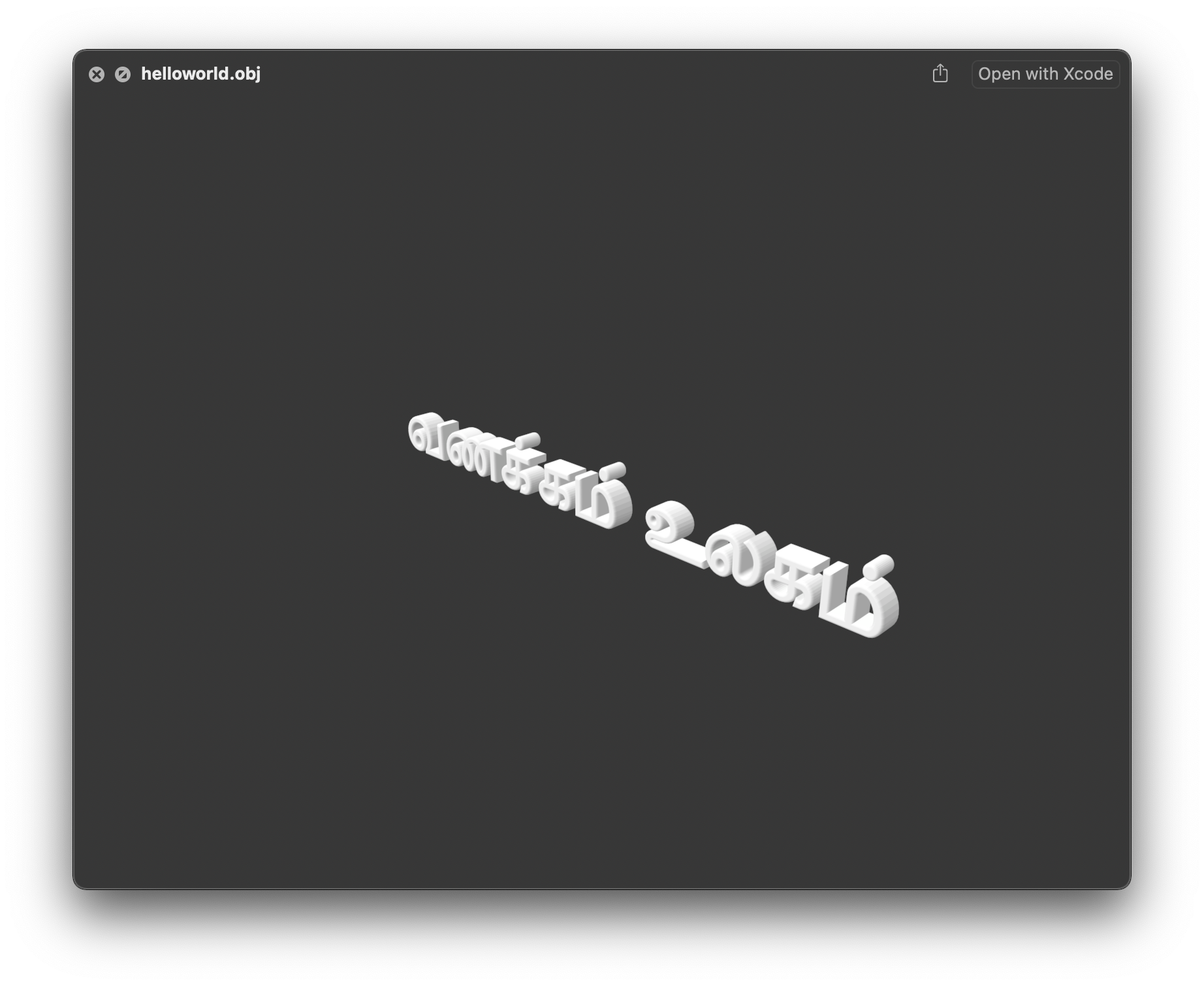

Unicode Support
Instruction to use:
- The Library uses FreeType Library to decode the fonts and converts the Text into Vector.
- Then the vector data is converted into triangles using Ploy2Tri library.
- This gives us the triangles of the complete text in a plane.
- The plane is then extruded into 3d object and then creates a closed mesh.
- The Mesh is then saved as OBJ file.
Plans for Future:
- Support WebAssembly and create sample web page to convert input text using uploaded font to 3D mesh.
Contributions:
- Thanks to J.Scheurich from White Dune Project for suggesting fixes for Face culling.
- Thanks to DaegyuMin for fixing a bug in missing triangle.
