INT_FP_MAC

About Design

The design is a multiplier accumulator (MAC) support both INT8 and FP16 data format. The whole design is ASIC-specific and fully sythesizable independent of any IPs.

About Principle

This design is provide for someone learning digital circuits Design, Verification and Synthesis.

Design

The basic MAC element is multiplier and adder. We use Vedic Multiplier and Carry Look-ahead Adder (CLA) to perform multiply and accumulator.

Synthesis

The Synthesis process is completed by Design compile with TCL script, Maximum operating frequency is about 200M Under the tsmc090 process.

Verification

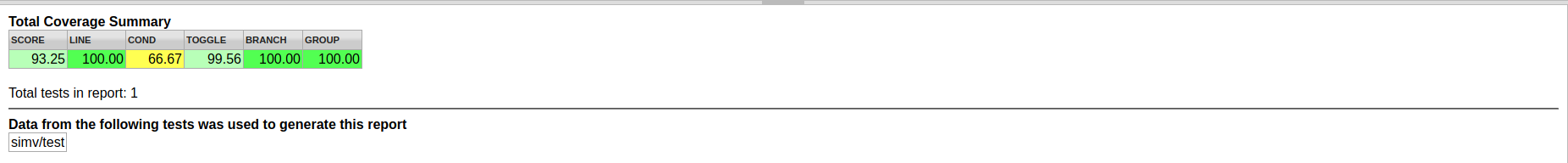

The verification process is carried out with directed testing and UVM (a state-of-art constraint-random verification methodology). Test plan is made as follows.

Purpose	Methodology	Language	Status
Adder Function	Directed	Verilog	Passed
Multiplier Function	Directed	Verilog	Passed
Adder in FP16 mode	Directed	Verilog	Passed
Multiplier in FP16 mode	Directed	Verilog	Passed
MAC Function	UVM (Constraint Random)	SystemVerilog	Passed
