Lenovo-Ideapad-320-15ISK-14ISK-Laptop-Hackintosh

Goal of this repo is to run macOS on Lenovo Ideapad 320 15ISK Laptop

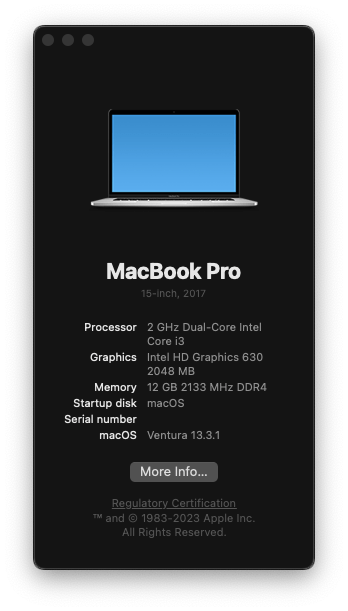

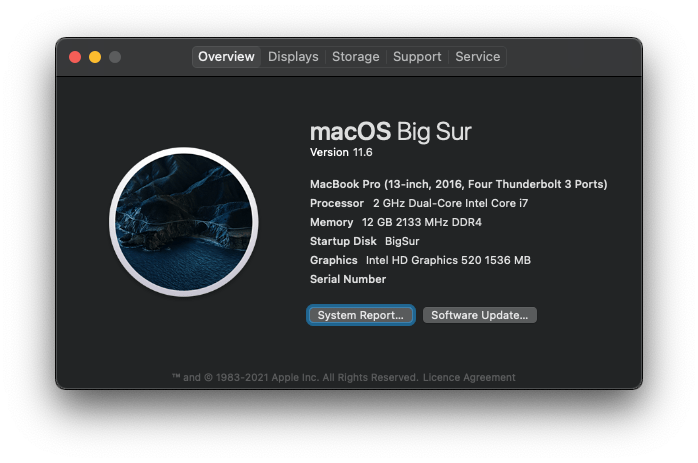

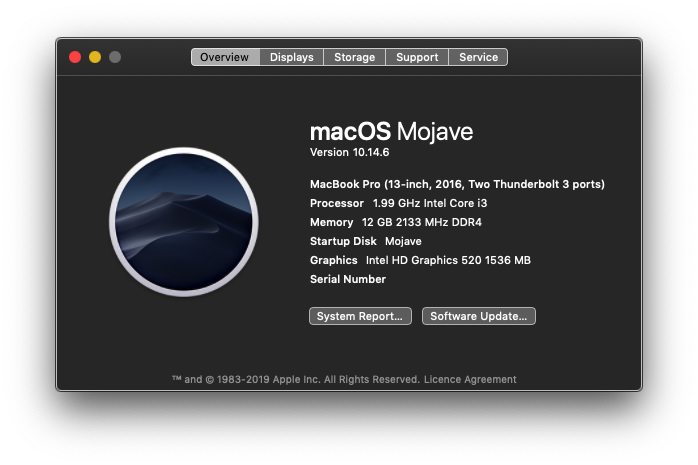

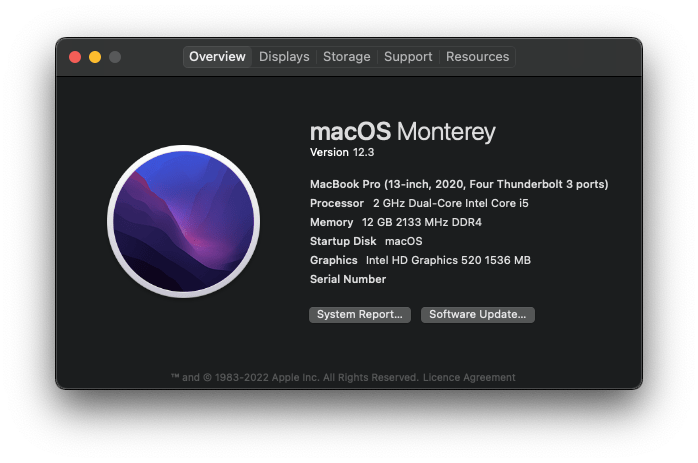

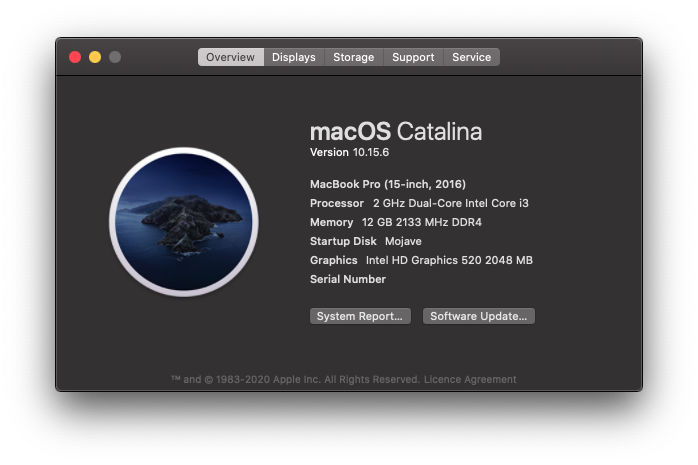

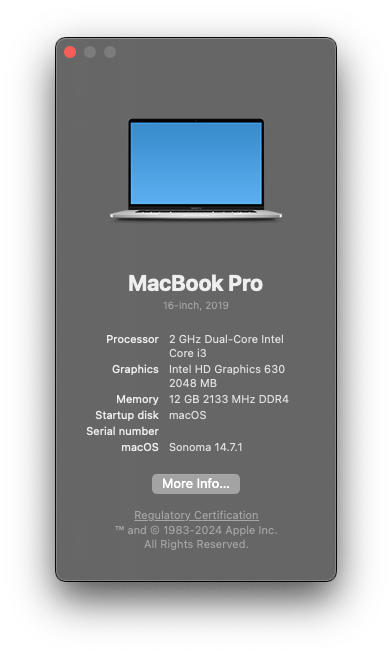

macOS Mojave 10.14.6	macOS Catalina 10.15.6	macOS Big Sur 11.6	macOS Monterey 12.3	macOS Ventura 13.3.1	macOS Sonoma 14.7.1

macOS Catalina to Big Sur direct upgrade note:

Download latest OpenCore zip folder from release and overwrite with existing one.

macOS Monterey to Ventura direct upgrade note:

Please inject Kabylake graphics.

OpenCore Installation Guide

Go to INSTALLATION_GUIDE_OPENCORE.md(Detailed guide)

Clover Installation Guide (Deprecated)

Go to INSTALLATION_GUIDE_BEGINNERS.md(For beginners)

Go to INSTALLATION_GUIDE.md(Detailed guide - Advanced user only)

Other Guide

Go to WIRELESS_CARD_BUYING_GUIDE.md(Supported Wi-Fi adapters and buying guide)

About this Laptop

Original Hardware Info 💻

Type	Spec	Status	Link
Computer	Lenovo Ideapad 320-15ISK 80XH01DNIN	Working	-
BIOS Version	LENOVO Insyde EFI(4WCN29WW)	Working	-
CPU	DualCore Intel Core i3, 2000 MHz (20 x 100)	Working	-
Chipset	Intel Sunrise Point-LP, Intel Skylake-U	Working	-
Graphics	Intel HD Graphics 520, NVIDIA GeForce 920MX (Using Intel GPU only)	Working	Guide
Audio	Realtek ALC3240, Codec ID:10EC0230h / 17AA3809h	Working	Guide
Ethernet	Realtek RTL8168/8111 PCI-E Gigabit Ethernet Adapter()	Working	-
WiFi	Intel(R) Dual Band Wireless-AC 3165	Working	-
Bluetooth	Intel(R) Wireless Bluetooth(R)	Working	-
Touchpad	I2C ELAN0608	Working	Guide
Keyboard	-	Working	-
Webcam	Ven id: 0x04f2(Chicony Electronics Co.,Ltd.) Product id: 0xb5d8	Working	-
Battery	Serial Number: L16M2PB2- 1229 Manufacturer: SMP Device Name: L16M2PB2	Working	-

Modifications 🔨

Type	Spec	Status
D-Link DWA-131 Wireless N Nano USB Adapter (Black)	-	Working
BCM94360CS2 Wireless WIFI Bluetooth 4.0 Airport Card For Macbook Air 11" A1465 13" A1466 2013 MD711LL/A MD760 BCM94360CS2AX	-	Working
Wireless Bluetooth Mouse Rechargeable Mouse	-	Working
Universal for 9.5mm CD/DVD Drive Slot (for SSD and HDD)	-	Working
15.6 inch IPS LCD matrix LP156WF4 LP156WF6	-	Working
G.Skill Ripjaws SO-DIMM 16GB (1 * 16GB) DDR4 3200 CL22-22-22-52 1.20V Laptop Memory	Max 20GB (4GB Soldred + 16GB G.Skill)	Working

Software Status 👨‍💻

Type	Spec	Status
Battery Status	-	Working
Brightness With keys(F11 - F12)	-	Working
Sleep	-	Working

Kext Used

Kext	Info
AirportItlwm.kext	Intel Wi-Fi Drivers for macOS.
AppleALC.kext	For Audio.
BlueToolFixup.kext	Required for macOS 12 or newer, as in macOS 12 Apple has changed parts of the Bluetooth stack from kernel-space to user-space
BrightnessKeys.kext	Handler for brightness keys without DSDT patches
CpuTscSync.kext	It is a Lilu plugin, combining functionality of VoodooTSCSync and disabling xcpm_urgency if TSC is not in sync. It should solve kernel panics after wake.
FeatureUnlock.kext	Add Sidecar support to unsupported models
HibernationFixup.kext	A Lilu plugin intended to fix hibernation compatibility issues.
HoRNDIS.kext	Android USB tethering driver for Mac OS X
HWPEnabler.kext	HWP is a technology introduced in Skylake which lets the CPU select its own stepping speed without the usage of the CPU Multiplier. Additionally it trottles/boosts itself much faster, which improoves overall CPU performance. With enabled HWP you dont need to create SSDTs with CPU P-States anymore.
IntelBluetoothFirmware.kext	Intel Bluetooth Drivers for macOS.
IntelBTPatcher.kext	A Lilu base patcher that fix Intel Bluetooth on Bigsur, Catalina, Mojave, High sierra etc, tested with Bigsur and Catalina all working good.
Lilu.kext	Arbitrary kext and process patching on macOS.
RealtekRTL8111.kext	RTL8111/8168/8411 PCI Express Gigabit Ethernet.
RestrictEvents.kext	Lilu Kernel extension for blocking unwanted processes causing compatibility issues on different hardware and unlocking the support for certain features restricted to other hardware.
RTCMemoryFixup.kext	open source kernel extension providing a way to emulate some offsets in your CMOS (RTC) memory
SMCBatteryManager.kext	Battery Status Monitoring.
SMCProcessor.kext	Processor Temp Monitoring.
SMCSuperIO.kext	Fan Reading.
USBPorts.kext	For USB Port mapping.
VirtualSMC.kext	SMC Emulator Layer.
VoodooInput.kext	Generic Multitouch Handler kernel extension for macOS.
VoodooI2CELAN.kext	For ELAN Touchpad.
VoodooI2C.kext	For I2C Touchpad.
VoodooPS2Controller.kext	Contains updated Voodoo PS/2 Controller, improved Keyboard & Synaptics TouchPad.
YogaSMC.kext	ACPI driver for OEM hardware.
WhateverGreen.kext	Various patches necessary for certain ATI/AMD/Intel/Nvidia GPUs. This is needed for Intel HD 520.

SSDT Used

Kext	Info	Refrence Link
SSDT-EC-USBX.aml	Fix Embedded Controllers. For Skylake laptops and newer.	Link
SSDT-EHCx_OFF.aml	USB compatibility table for disable phantoms EHC1, EHC2. Only for 7,8,9-series chipsets and 10.11 and newer!	Link
SSDT-GPRW.aml	_PRW USB wake up patch.	Link
SSDT-I2C.aml	Fix trackpad	Link
SSDT-ECRW.aml	EC reading	Link
SSDT-SBUS-MCHC.aml	Mainly handles the System Management Bus.	Link
SSDT-MEM2.aml	Add missing MEM2 Device to enhance performance like a real Mac	-
SSDT-PMCR.aml	Add missing PMCR Device to enhance performance like a real Mac	-
SSDT-PNLF.aml	Fix Backlight. For most users.	Link
SSDT-UIAC.aml	Block empty USB ports. Created using HackinTool. USBPorts.kext is also required.	Link
SSDT-XOSI.aml	This SSDT can be used instead of an OS Check Fix patch to simulate a version of Windows for Darwin.	Link
SSDT-PrtSc-F13.aml	PrtSc Screenshot	-

TODO

USB mapping tutorial.
Separate guide for audio, graphics etc.
Suggest to me via issue.

Telegram Channel

Credits

Apple for macOS.
Acidanthera for most of the kexts.
goodwin for ALCPlugFix.
RehabMan for some patches.
Steve Zheng for some patches.
Sniki for some patches.
daliansky for some patches.
Moh_Ameen for some patches.
OpenIntelWireless for Intel WiFi drivers.
And anyone else that helped to develop and improve hackintoshing.

Contributors ✨

Thanks goes to these wonderful people (emoji key):

<table> <tr> <td align="center"><a href="https://netrix.cc"><img src="https://avatars0.githubusercontent.com/u/30347409?v=4?s=100" width="100px;" alt=""/><br /><sub><b>btx3</b></sub></a><br /><a href="https://github.com/gajjartejas/Lenovo-Ideapad-320-15ISK-14ISK-Laptop-Hackintosh/commits?author=btx3" title="Tests">⚠️</a></td> </tr> </table>

This project follows the all-contributors specification. Contributions of any kind welcome!
