GithubSearchKMM

Github Repos Search - Kotlin Multiplatform Mobile using Jetpack Compose, SwiftUI,
FlowRedux, Coroutines Flow, Dagger Hilt, Koin Dependency Injection, shared KMP ViewModel, Clean Architecture

Minimal Kotlin Multiplatform project with SwiftUI, Jetpack Compose.

Android (Jetpack compose)
iOS (SwiftUI)

Liked some of my work? Buy me a coffee (or more likely a beer)

Modern Development

Kotlin Multiplatform
Jetpack Compose
Kotlin Coroutines & Flows
Dagger Hilt
SwiftUI
Koin Dependency Injection
FlowRedux State Management
Shared KMP ViewModel
Clean Architecture

Tech Stacks

Functional & Reactive programming with Kotlin Coroutines with Flow
Clean Architecture with MVI (Uni-directional data flow)
Multiplatform ViewModel and SavedStateHandle (save and restore states across process death), by @hoc081098
Multiplatform FlowRedux State Management
Λrrow - Functional companion to Kotlin's Standard Library
Dependency injection
- iOS: Koin
- Android: Dagger Hilt
Declarative UI
- iOS: SwiftUI
- Android: Jetpack Compose
Ktor client library for networking
Kotlinx Serialization for JSON serialization/deserialization.
Napier for Multiplatform Logging.
FlowExt provides many kotlinx.coroutines.Flow operators, by @hoc081098
Touchlab SKIE a Swift-friendly API Generator for Kotlin Multiplatform.
kotlinx.collections.immutable: immutable collection interfaces and implementation prototypes for Kotlin..
Testing
- Kotlin Test for running tests with Kotlin Multiplatform.
- Turbine for KotlinX Coroutines Flows testing.
- Mockative: mocking for Kotlin/Native and Kotlin Multiplatform using the Kotlin Symbol Processing API.
- Kotlinx-Kover for Kotlin Multiplatform code coverage.

Screenshots

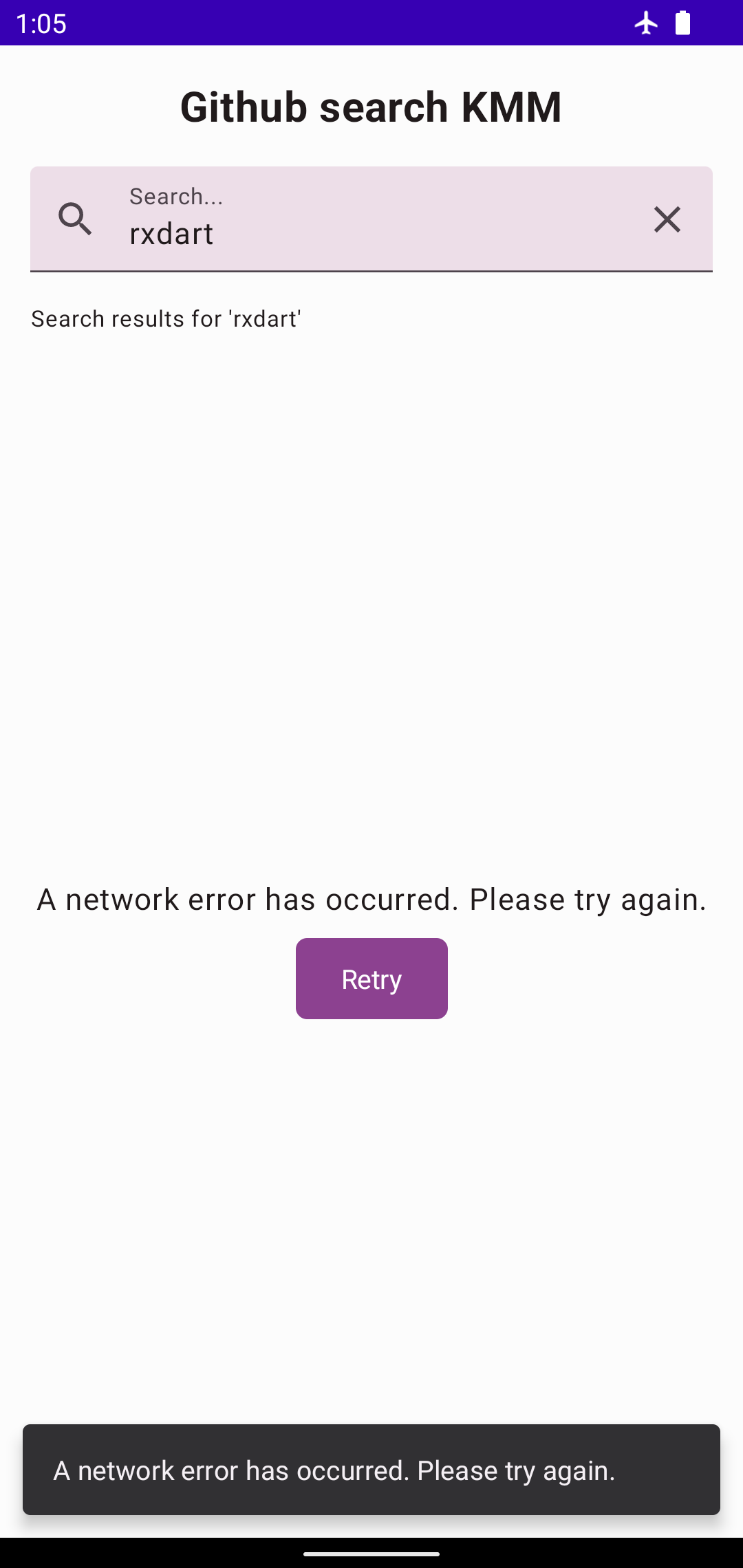

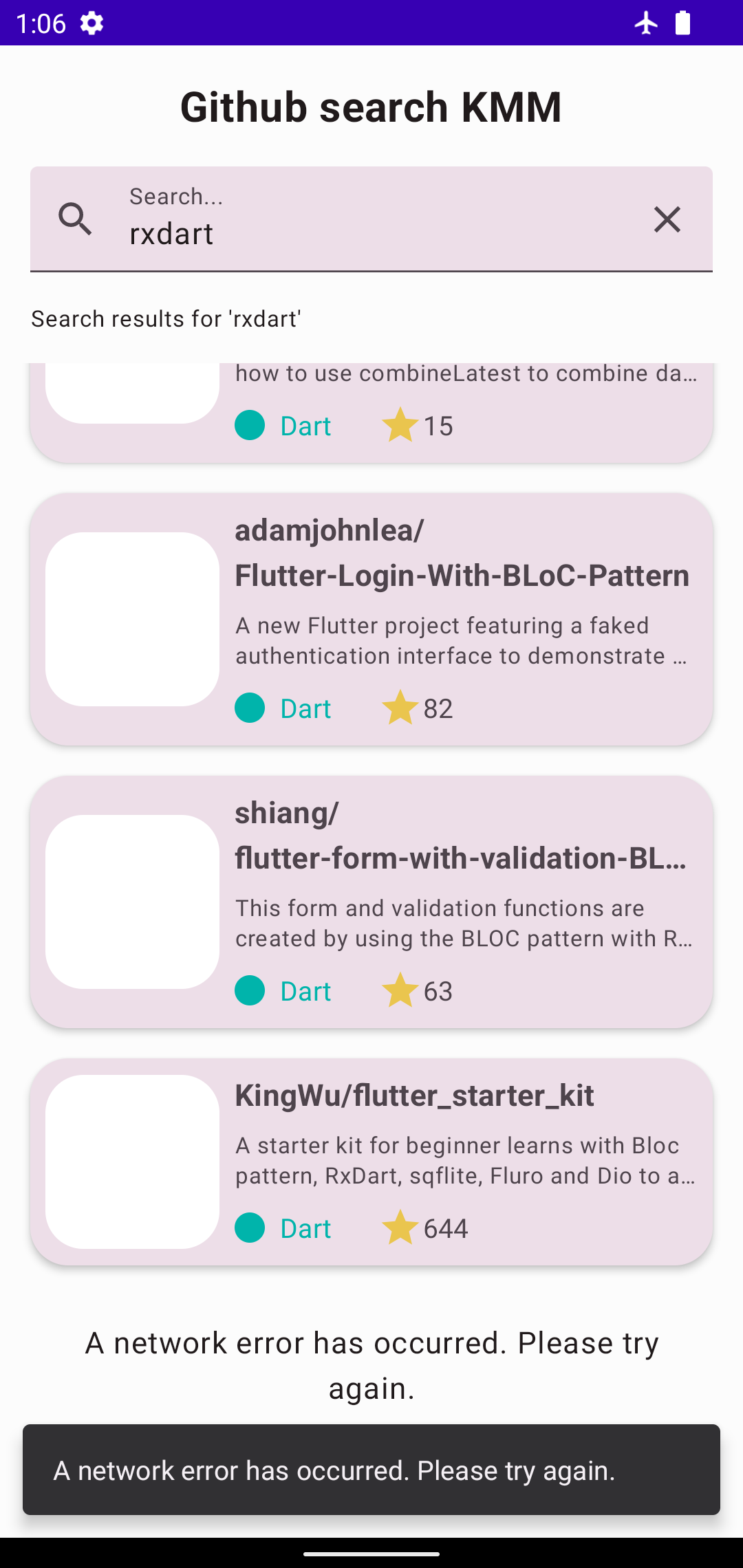

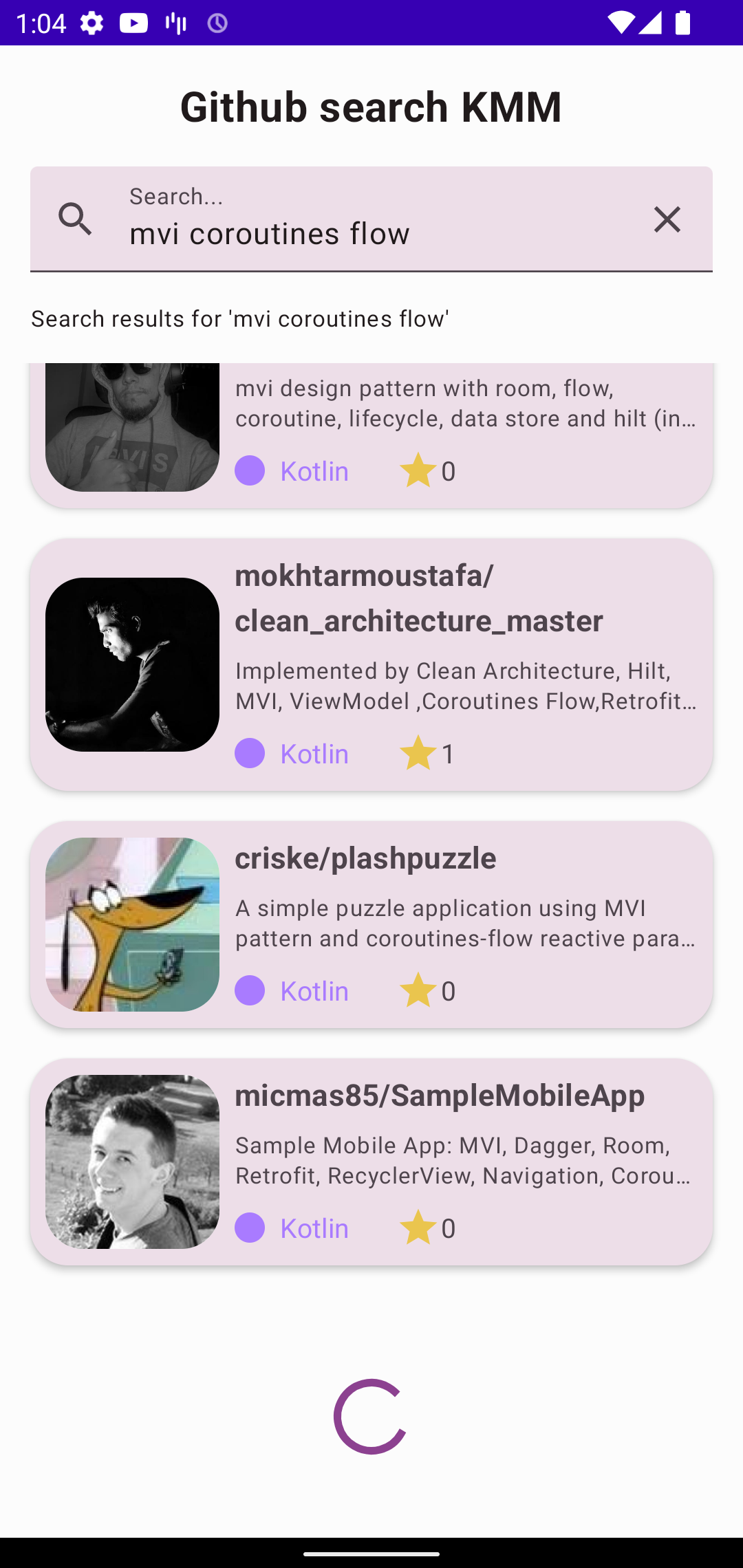

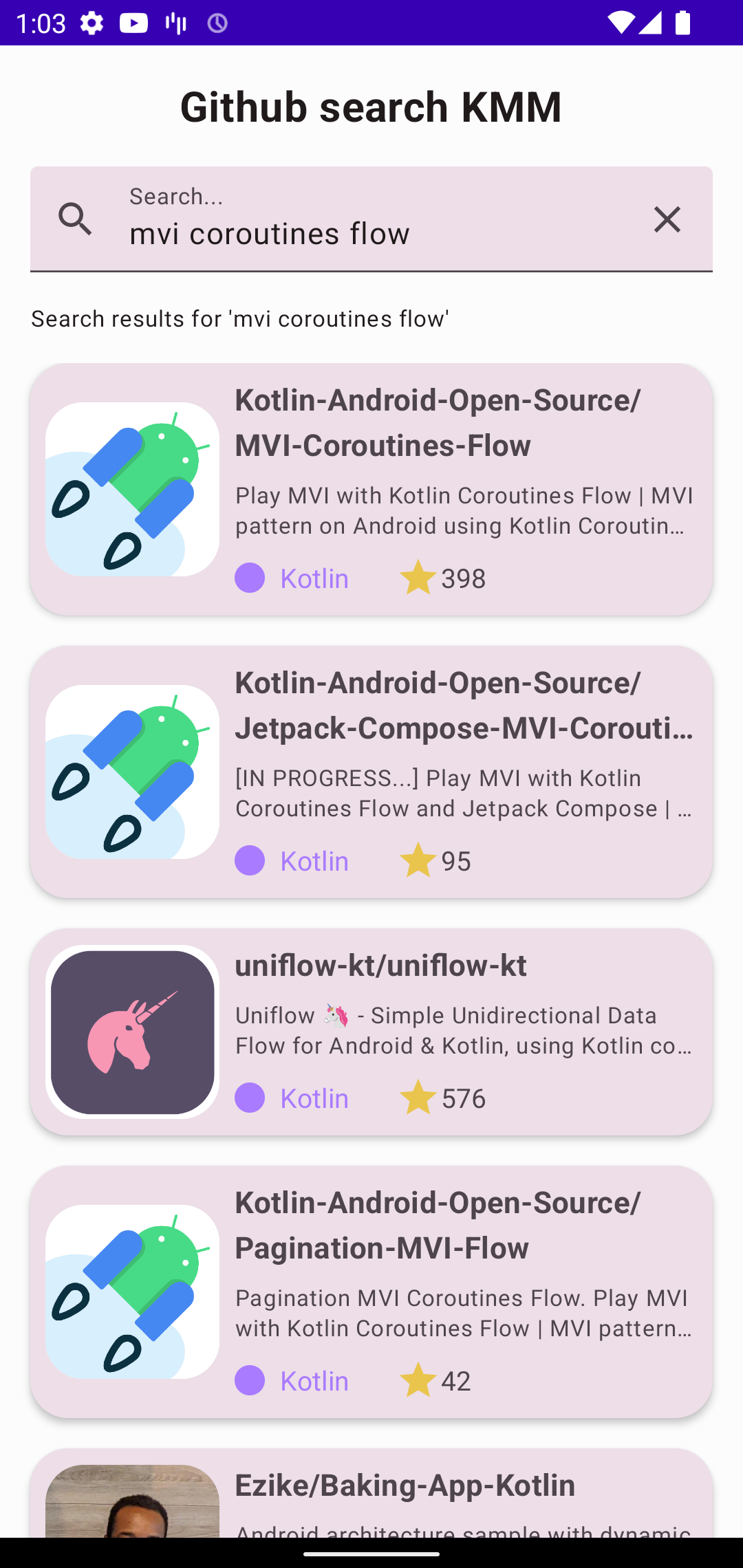

Android (Light theme)

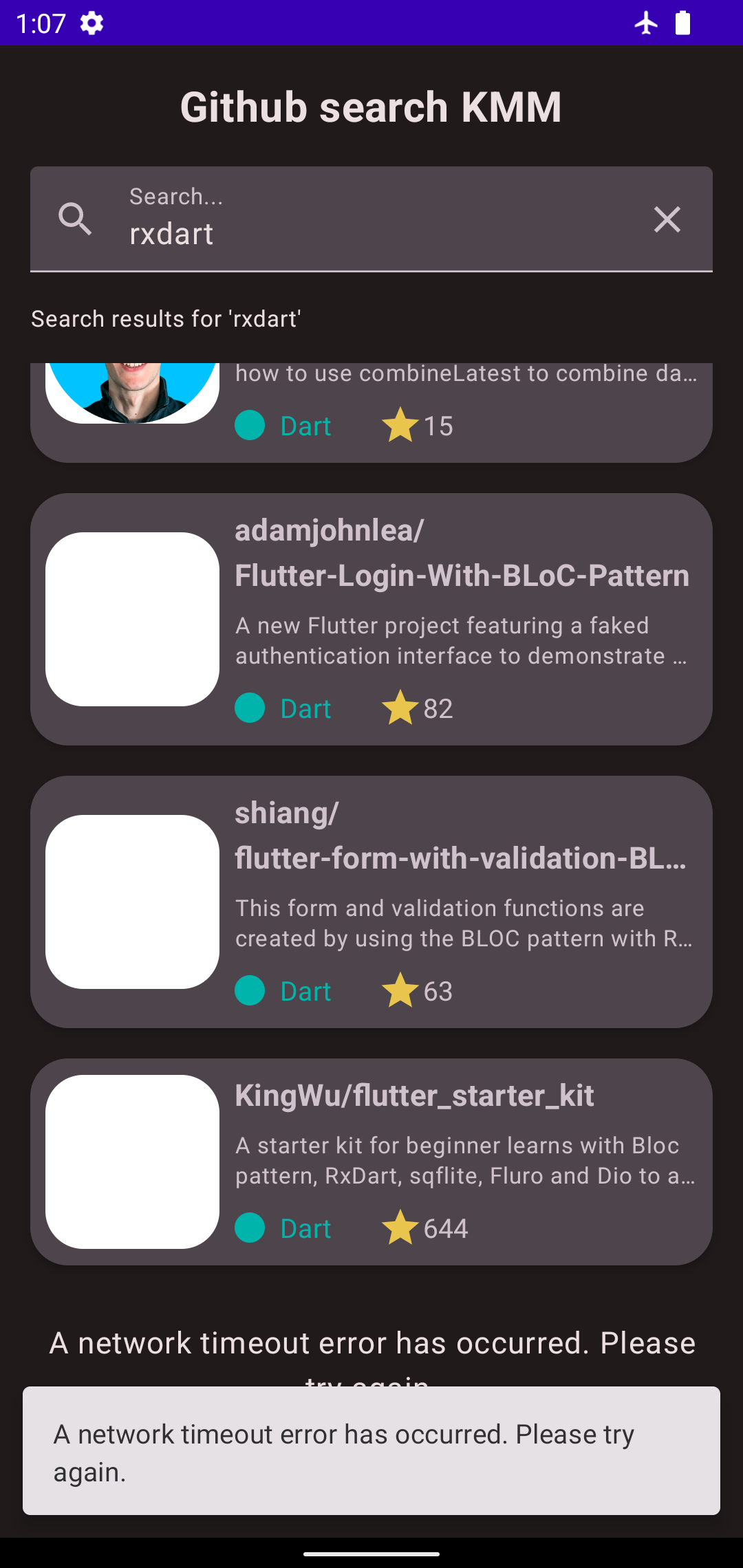

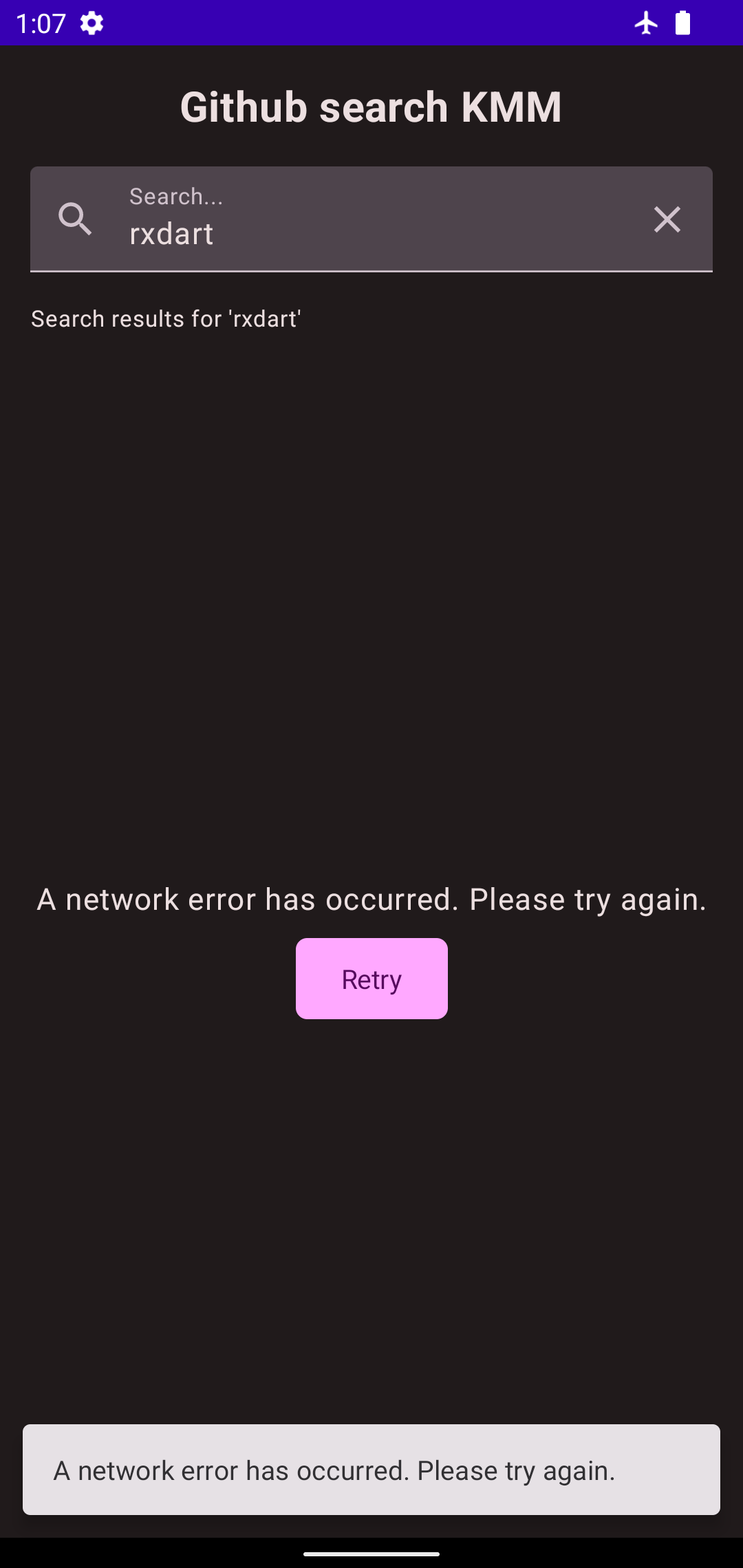

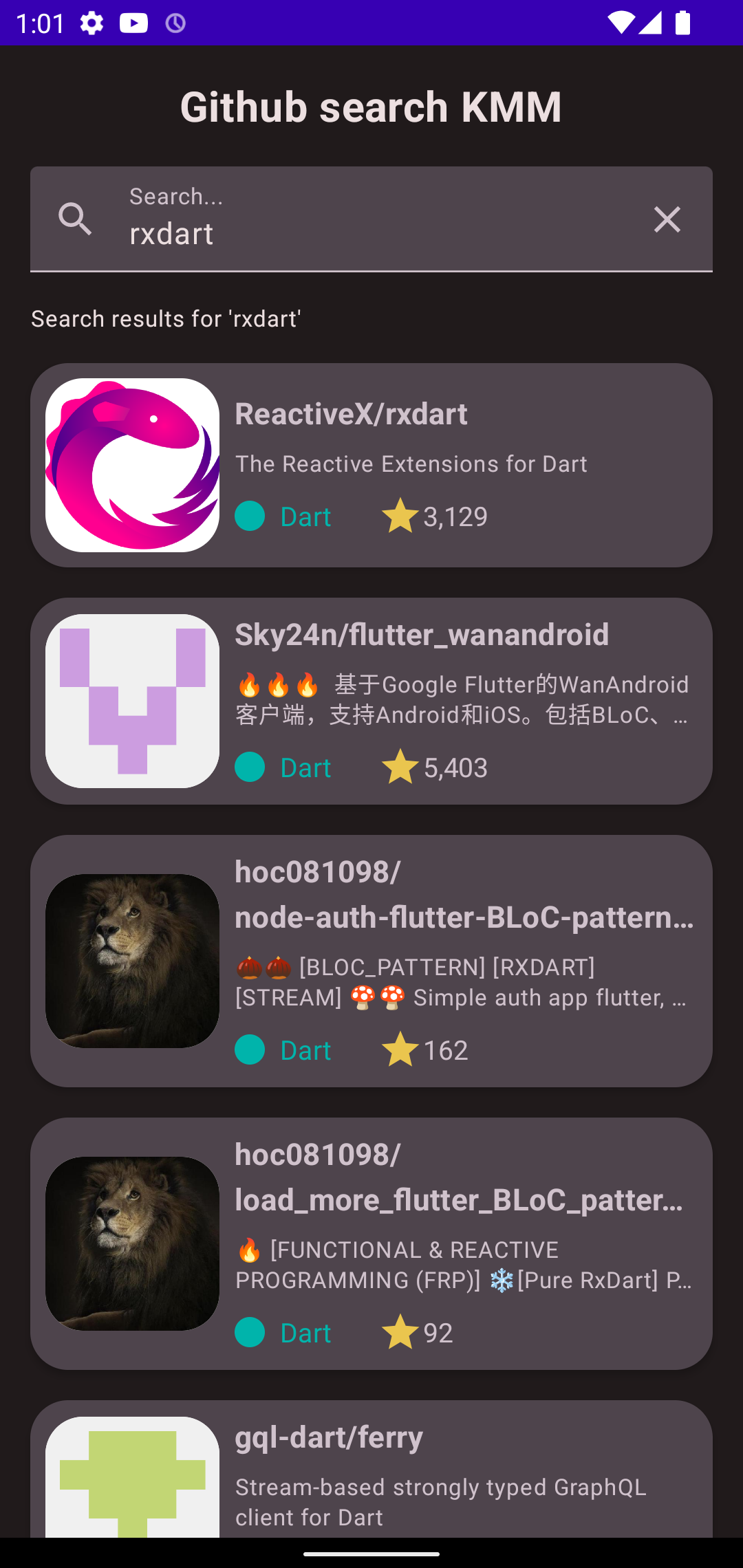

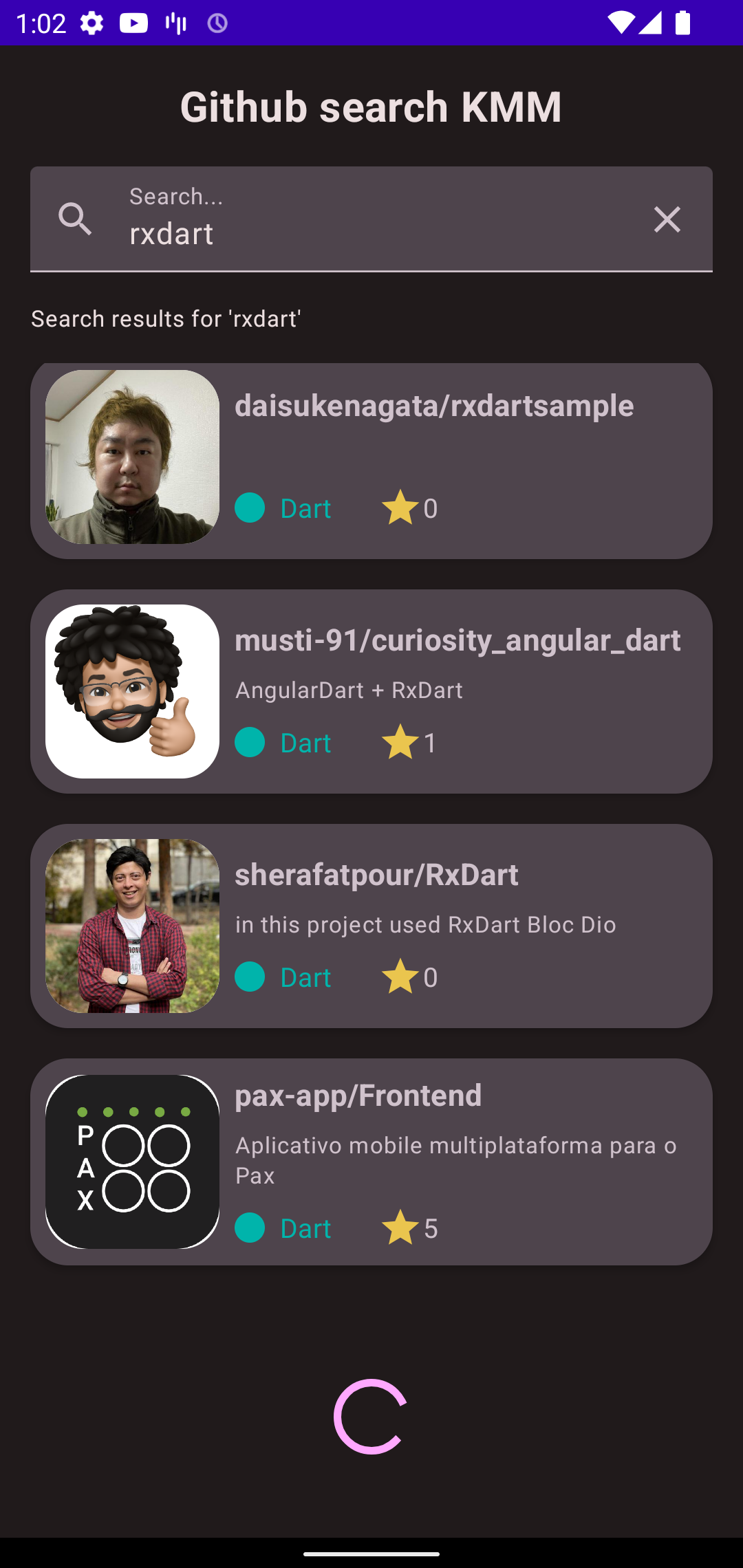

Android (Dark theme)

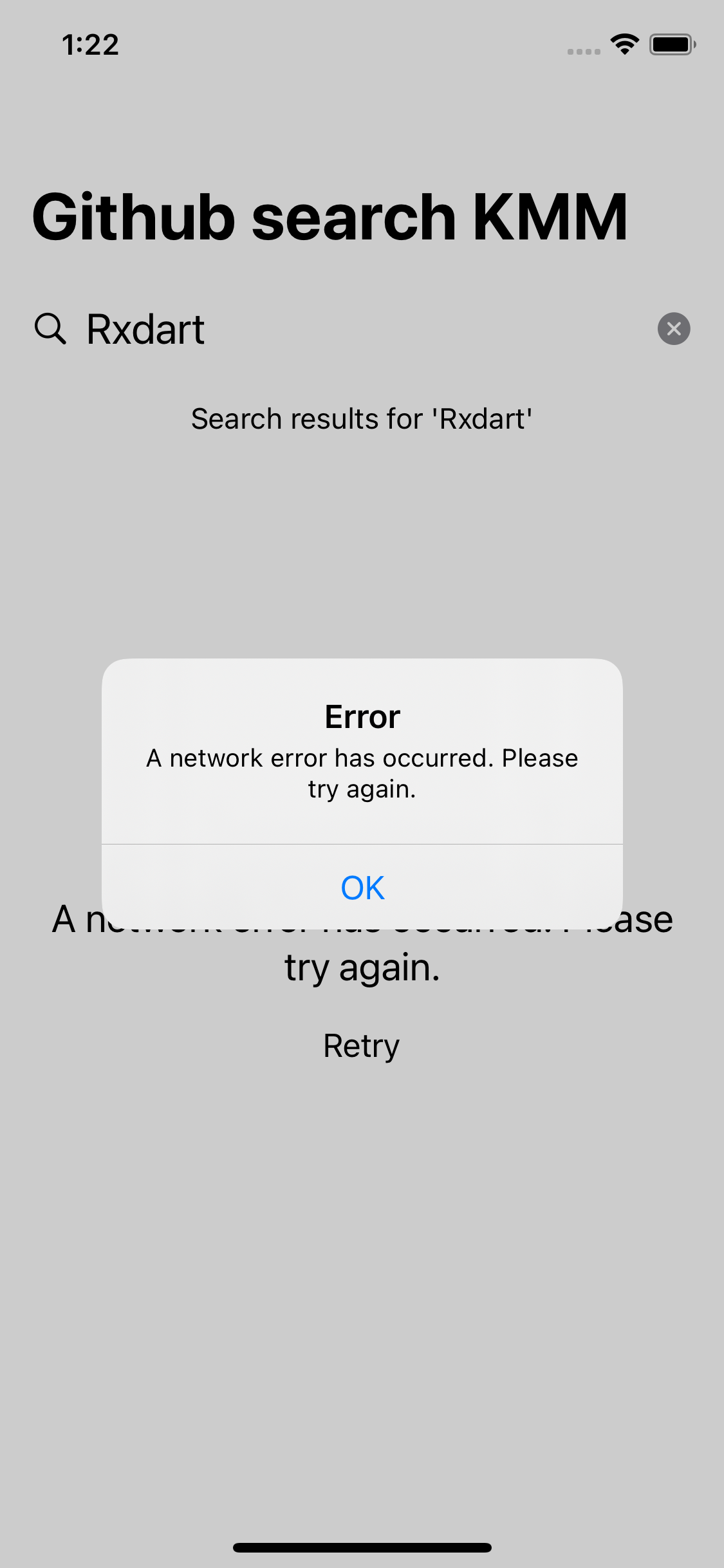

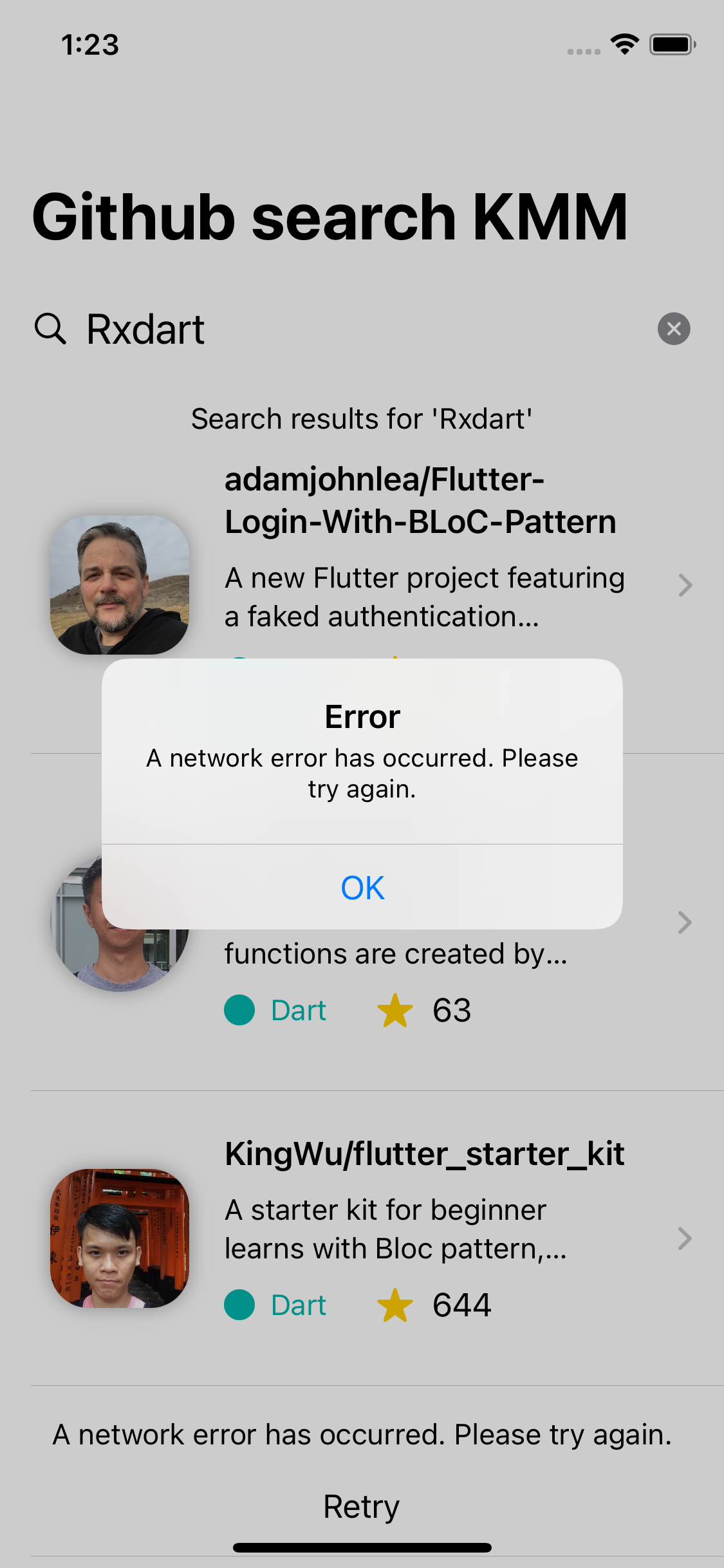

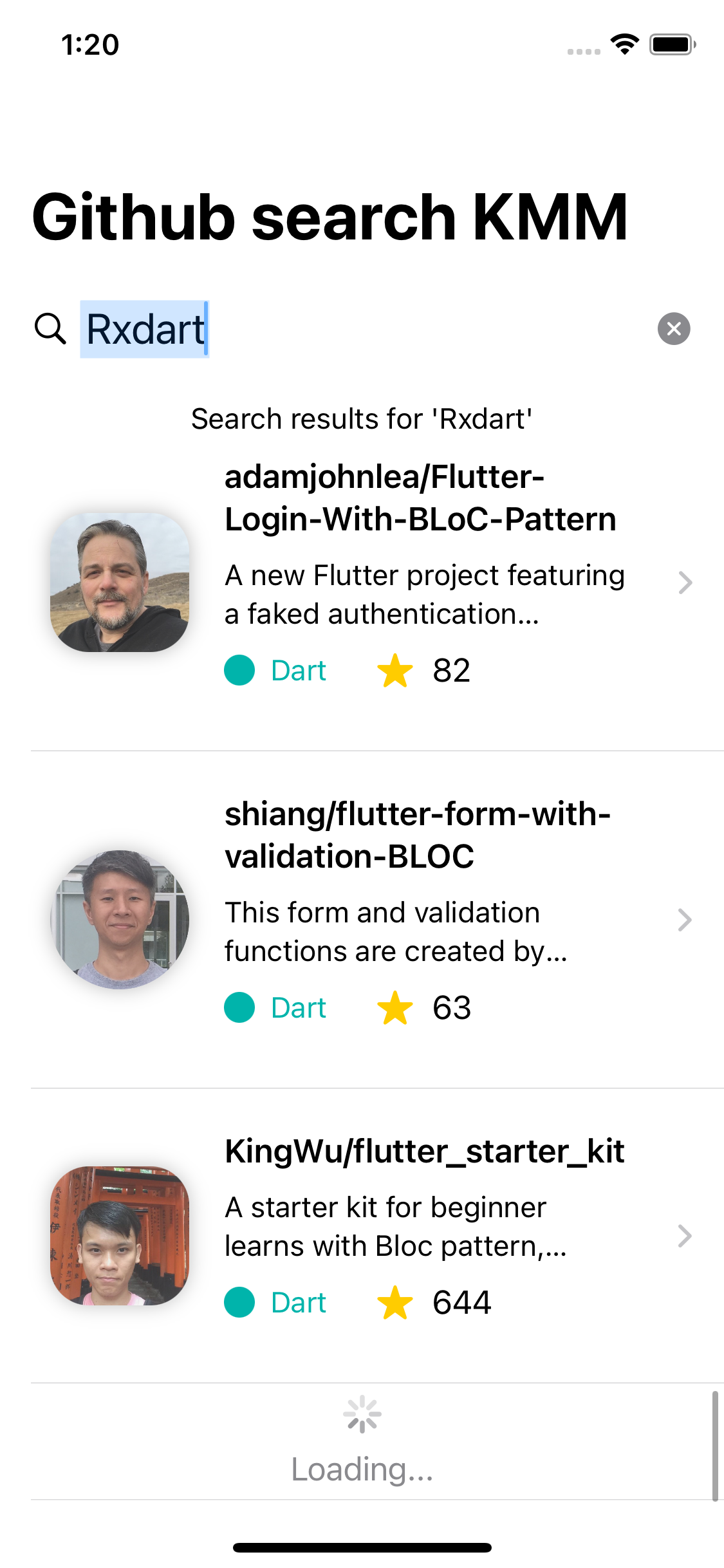

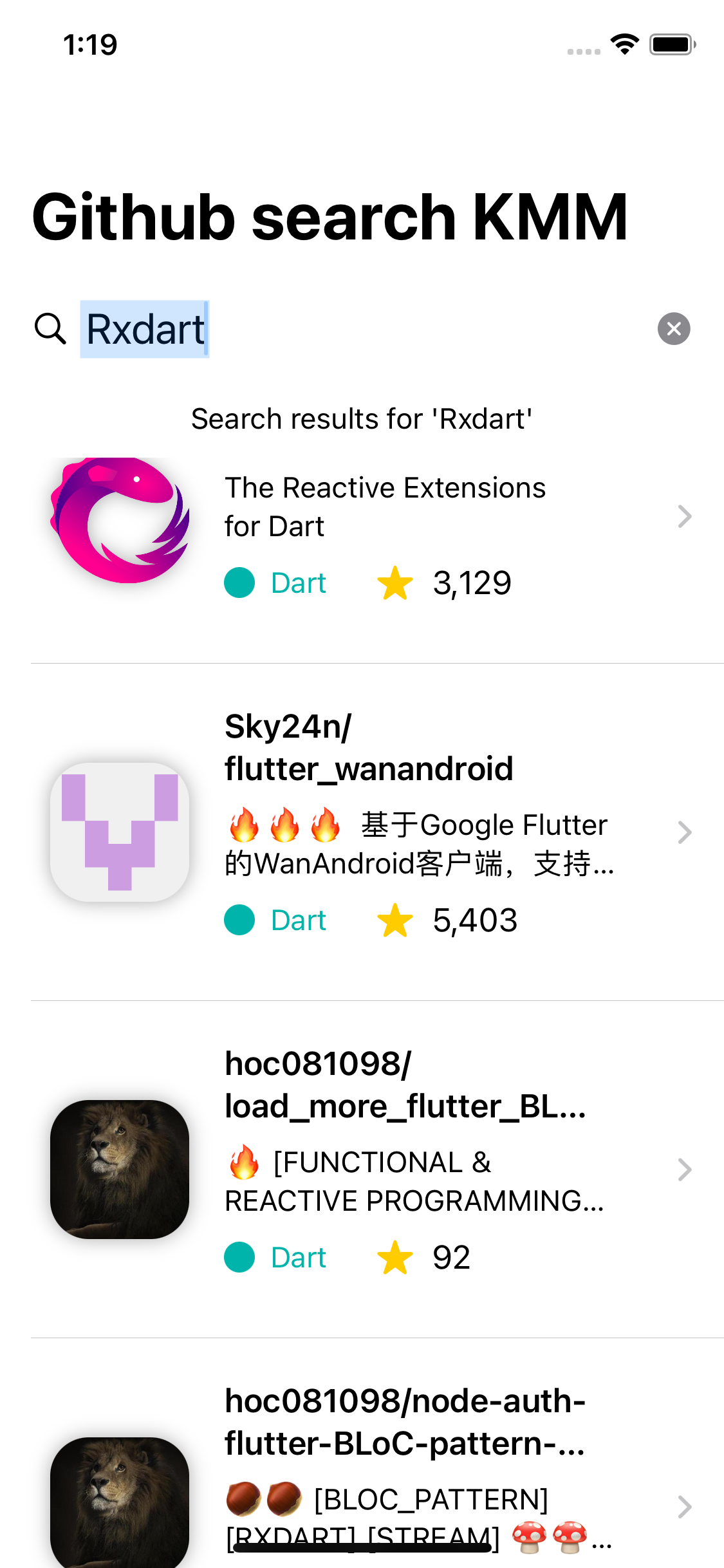

iOS (Light theme)

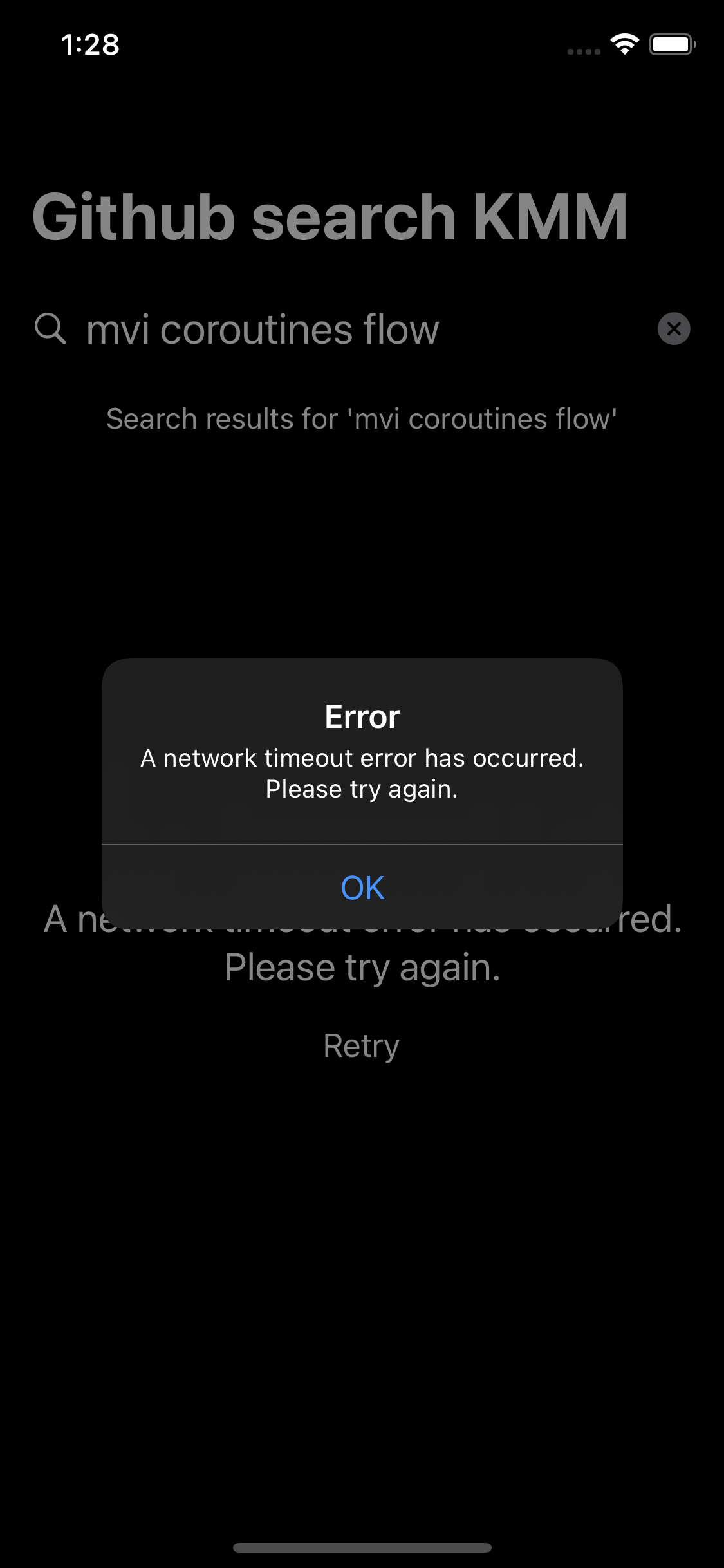

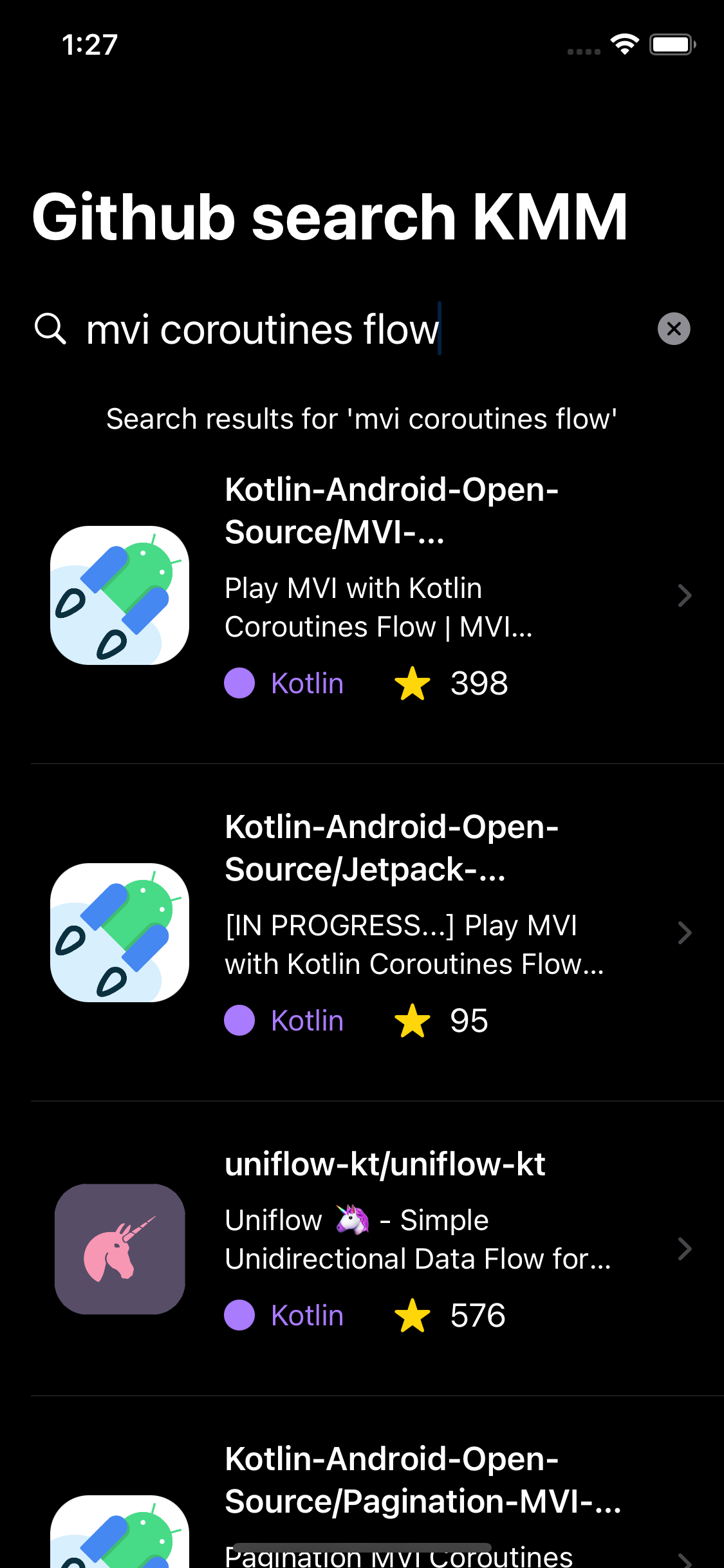

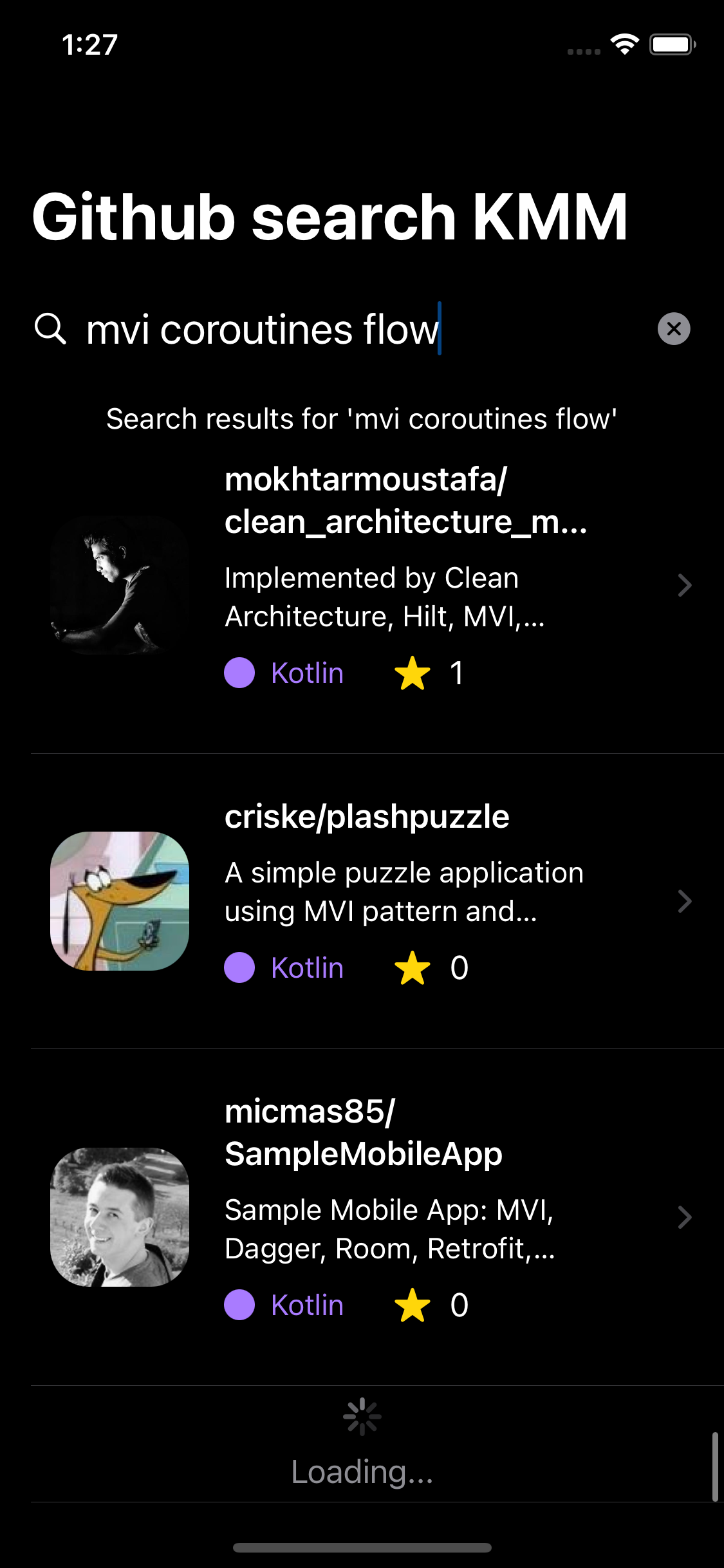

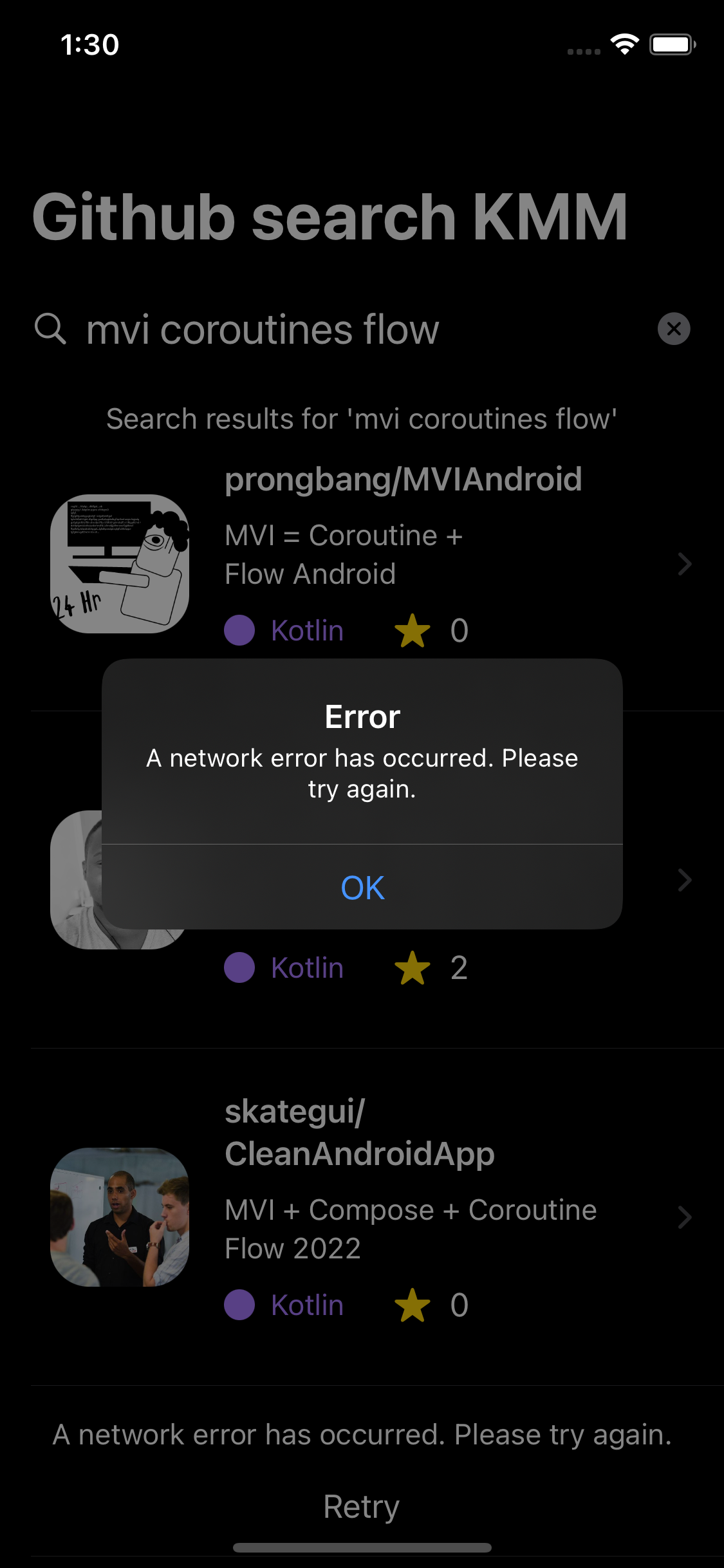

iOS (Dark theme)

Overall Architecture

What is shared?

domain: Domain models, UseCases, Repositories.
presentation: ViewModels, ViewState, ViewSingleEvent, ViewAction.
data: Repository Implementations, Remote Data Source, Local Data Source.
utils: Utilities, Logging Library

Unidirectional data flow - FlowRedux

My implementation. Credits: freeletics/FlowRedux
See more docs and concepts at freeletics/RxRedux

kotlin
public sealed interface FlowReduxStore<Action, State> {
  /**
   * The state of this store.
   */
  public val stateFlow: StateFlow<State>

  /**
   * @return false if cannot dispatch action (this store was closed).
   */
  public fun dispatch(action: Action): Boolean

  /**
   * Call this method to close this store.
   * A closed store will not accept any action anymore, thus state will not change anymore.
   * All [SideEffect]s will be cancelled.
   */
  public fun close()

  /**
   * After calling [close] method, this function will return true.
   *
   * @return true if this store was closed.
   */
  public fun isClosed(): Boolean
}

Multiplatform ViewModel

kotlin
open class GithubSearchViewModel(
  searchRepoItemsUseCase: SearchRepoItemsUseCase,
  private val savedStateHandle: SavedStateHandle,
) : ViewModel() {
  private val effectsContainer = GithubSearchSideEffectsContainer(searchRepoItemsUseCase)

  private val store = viewModelScope.createFlowReduxStore(
    initialState = GithubSearchState.initial(),
    sideEffects = effectsContainer.sideEffects,
    reducer = Reducer(flip(GithubSearchAction::reduce))
      .withLogger(githubSearchFlowReduxLogger())
  )

  val termStateFlow: NonNullStateFlowWrapper<String> = savedStateHandle.getStateFlow(TERM_KEY, "").wrap()
  val stateFlow: NonNullStateFlowWrapper<GithubSearchState> = store.stateFlow.wrap()
  val eventFlow: NonNullFlowWrapper<GithubSearchSingleEvent> = effectsContainer.eventFlow.wrap()

  init {
    store.dispatch(InitialSearchAction(termStateFlow.value))
  }

  @MainThread
  fun dispatch(action: GithubSearchAction): Boolean {
    if (action is GithubSearchAction.Search) {
      savedStateHandle[TERM_KEY] = action.term
    }
    return store.dispatch(action)
  }

  companion object {
    private const val TERM_KEY = "com.hoc081098.github_search_kmm.presentation.GithubSearchViewModel.term"

    /**
     * Used by non-Android platforms.
     */
    fun create(searchRepoItemsUseCase: SearchRepoItemsUseCase): GithubSearchViewModel =
      GithubSearchViewModel(searchRepoItemsUseCase, SavedStateHandle())
  }
}

Platform ViewModel

Android

Extends GithubSearchViewModel to use Dagger Constructor Injection.

kotlin
@HiltViewModel
class DaggerGithubSearchViewModel @Inject constructor(
  searchRepoItemsUseCase: SearchRepoItemsUseCase,
  savedStateHandle: SavedStateHandle,
) : GithubSearchViewModel(searchRepoItemsUseCase, savedStateHandle)

iOS

Conform to ObservableObject and use @Published property wrapper.

swift
import Foundation
import Combine
import shared

@MainActor
class IOSGithubSearchViewModel: ObservableObject {
  private let vm: GithubSearchViewModel

  @Published private(set) var state: GithubSearchState
  @Published private(set) var term: String = ""
  let eventPublisher: AnyPublisher<GithubSearchSingleEventKs, Never>

  init(vm: GithubSearchViewModel) {
    self.vm = vm

    self.eventPublisher = vm.eventFlow.asNonNullPublisher()
      .assertNoFailure()
      .map(GithubSearchSingleEventKs.init)
      .eraseToAnyPublisher()

    self.state = vm.stateFlow.value
    vm.stateFlow.subscribe(
      scope: vm.viewModelScope,
      onValue: { [weak self] in self?.state = $0 }
    )

    self.vm
      .termStateFlow
      .asNonNullPublisher(NSString.self)
      .assertNoFailure()
      .map { $0 as String }
      .assign(to: &$term)
  }

  @discardableResult
  func dispatch(action: GithubSearchAction) -> Bool {
    self.vm.dispatch(action: action)
  }

  deinit {
    Napier.d("\(self)::deinit")
    vm.clear()
  }
}

Download APK

Download latest debug APK here

Building & Develop

Android Studio Hedgehog | 2023.1.1 (note: Java 17 is now the minimum version required).
Xcode 13.2.1 or later (due to use of new Swift 5.5 concurrency APIs).
Clone project: git clone https://github.com/hoc081098/GithubSearchKMM.git
Android: open project by Android Studio and run as usual.
iOS
```
shell
# Cd to root project directory
cd GithubSearchKMM

# Setup
sh scripts/run_ios.sh
```
There's a Build Phase script that will do the magic. 🧞 <br>
<kbd>Cmd</kbd> + <kbd>B</kbd> to build
<br>
<kbd>Cmd</kbd> + <kbd>R</kbd> to run.

You can also build and run iOS app from Xcode as usual.

LOC

shell
--------------------------------------------------------------------------------
 Language             Files        Lines        Blank      Comment         Code
--------------------------------------------------------------------------------
 Kotlin                 116         7942          996          453         6493
 JSON                     7         3938            0            0         3938
 Swift                   16          960          124          102          734
 Markdown                 1          281           53            0          228
 Bourne Shell             2          249           28          116          105
 Batch                    1           92           21            0           71
 XML                      6           69            6            0           63
--------------------------------------------------------------------------------
 Total                  149        13531         1228          671        11632
--------------------------------------------------------------------------------
