PROJECT NOT UNDER ACTIVE MANAGEMENT

This project will no longer be maintained by Intel.
Intel has ceased development and contributions including, but not limited to, maintenance, bug fixes, new releases, or updates, to this project.
Intel no longer accepts patches to this project.
If you have an ongoing need to use this project, are interested in independently developing it, or would like to maintain patches for the open source software community, please create your own fork of this project.

ZoeDepth: Combining relative and metric depth (Official implementation)

ZoeDepth: Zero-shot Transfer by Combining Relative and Metric Depth

Shariq Farooq Bhat, Reiner Birkl, Diana Wofk, Peter Wonka, Matthias Müller

[Paper]

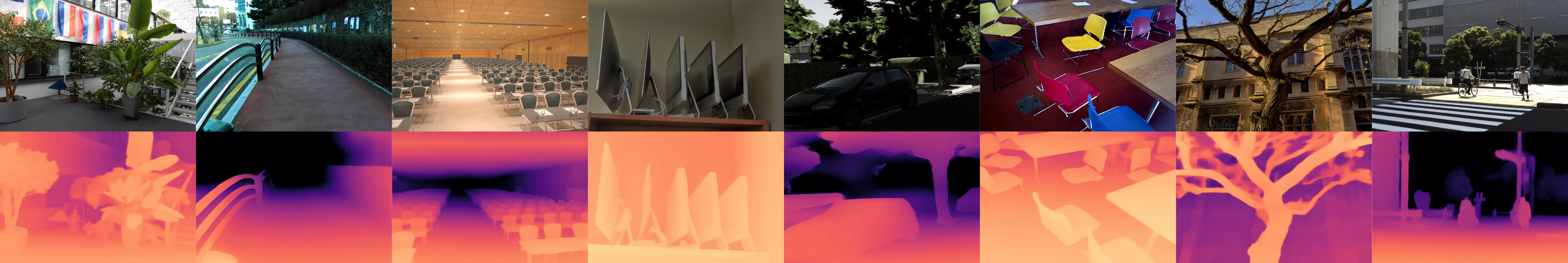

teaser

Table of Contents

Usage
Environment setup
Sanity checks (Recommended)
Model files
Evaluation
- Evaluating offical models
- Evaluating local checkpoint
Training
Gradio demo
Citation

Usage

It is recommended to fetch the latest MiDaS repo via torch hub before proceeding:

python
import torch

torch.hub.help("intel-isl/MiDaS", "DPT_BEiT_L_384", force_reload=True)  # Triggers fresh download of MiDaS repo

ZoeDepth models

Using torch hub

python
import torch

repo = "isl-org/ZoeDepth"
# Zoe_N
model_zoe_n = torch.hub.load(repo, "ZoeD_N", pretrained=True)

# Zoe_K
model_zoe_k = torch.hub.load(repo, "ZoeD_K", pretrained=True)

# Zoe_NK
model_zoe_nk = torch.hub.load(repo, "ZoeD_NK", pretrained=True)

Using local copy

Clone this repo:

bash
git clone https://github.com/isl-org/ZoeDepth.git && cd ZoeDepth

Using local torch hub

You can use local source for torch hub to load the ZoeDepth models, for example:

python
import torch

# Zoe_N
model_zoe_n = torch.hub.load(".", "ZoeD_N", source="local", pretrained=True)

or load the models manually

python
from zoedepth.models.builder import build_model
from zoedepth.utils.config import get_config

# ZoeD_N
conf = get_config("zoedepth", "infer")
model_zoe_n = build_model(conf)

# ZoeD_K
conf = get_config("zoedepth", "infer", config_version="kitti")
model_zoe_k = build_model(conf)

# ZoeD_NK
conf = get_config("zoedepth_nk", "infer")
model_zoe_nk = build_model(conf)

Using ZoeD models to predict depth

python
##### sample prediction
DEVICE = "cuda" if torch.cuda.is_available() else "cpu"
zoe = model_zoe_n.to(DEVICE)


# Local file
from PIL import Image
image = Image.open("/path/to/image.jpg").convert("RGB")  # load
depth_numpy = zoe.infer_pil(image)  # as numpy

depth_pil = zoe.infer_pil(image, output_type="pil")  # as 16-bit PIL Image

depth_tensor = zoe.infer_pil(image, output_type="tensor")  # as torch tensor



# Tensor
from zoedepth.utils.misc import pil_to_batched_tensor
X = pil_to_batched_tensor(image).to(DEVICE)
depth_tensor = zoe.infer(X)



# From URL
from zoedepth.utils.misc import get_image_from_url

# Example URL
URL = "https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS4W8H_Nxk_rs3Vje_zj6mglPOH7bnPhQitBH8WkqjlqQVotdtDEG37BsnGofME3_u6lDk&usqp=CAU"


image = get_image_from_url(URL)  # fetch
depth = zoe.infer_pil(image)

# Save raw
from zoedepth.utils.misc import save_raw_16bit
fpath = "/path/to/output.png"
save_raw_16bit(depth, fpath)

# Colorize output
from zoedepth.utils.misc import colorize

colored = colorize(depth)

# save colored output
fpath_colored = "/path/to/output_colored.png"
Image.fromarray(colored).save(fpath_colored)

Environment setup

The project depends on :

pytorch (Main framework)
timm (Backbone helper for MiDaS)
pillow, matplotlib, scipy, h5py, opencv (utilities)

Install environment using environment.yml :

Using mamba (fastest):

bash
mamba env create -n zoe --file environment.yml
mamba activate zoe

Using conda :

bash
conda env create -n zoe --file environment.yml
conda activate zoe

Sanity checks (Recommended)

Check if models can be loaded:

bash
python sanity_hub.py

Try a demo prediction pipeline:

bash
python sanity.py

This will save a file pred.png in the root folder, showing RGB and corresponding predicted depth side-by-side.

Model files

Models are defined under models/ folder, with models/<model_name>_<version>.py containing model definitions and models/config_<model_name>.json containing configuration.

Single metric head models (Zoe_N and Zoe_K from the paper) have the common definition and are defined under models/zoedepth while as the multi-headed model (Zoe_NK) is defined under models/zoedepth_nk.

Evaluation

Download the required dataset and change the DATASETS_CONFIG dictionary in utils/config.py accordingly.

Evaluating offical models

On NYU-Depth-v2 for example:

For ZoeD_N:

bash
python evaluate.py -m zoedepth -d nyu

For ZoeD_NK:

bash
python evaluate.py -m zoedepth_nk -d nyu

Evaluating local checkpoint

bash
python evaluate.py -m zoedepth --pretrained_resource="local::/path/to/local/ckpt.pt" -d nyu

Pretrained resources are prefixed with url:: to indicate weights should be fetched from a url, or local:: to indicate path is a local file. Refer to models/model_io.py for details.

The dataset name should match the corresponding key in utils.config.DATASETS_CONFIG .

Training

Download training datasets as per instructions given here. Then for training a single head model on NYU-Depth-v2 :

bash
python train_mono.py -m zoedepth --pretrained_resource=""

For training the Zoe-NK model:

bash
python train_mix.py -m zoedepth_nk --pretrained_resource=""

Gradio demo

We provide a UI demo built using gradio. To get started, install UI requirements:

bash
pip install -r ui/ui_requirements.txt

Then launch the gradio UI:

bash
python -m ui.app

The UI is also hosted on HuggingFace🤗 here

Citation

@misc{https://doi.org/10.48550/arxiv.2302.12288,
  doi = {10.48550/ARXIV.2302.12288},

  url = {https://arxiv.org/abs/2302.12288},

  author = {Bhat, Shariq Farooq and Birkl, Reiner and Wofk, Diana and Wonka, Peter and Müller, Matthias},

  keywords = {Computer Vision and Pattern Recognition (cs.CV), FOS: Computer and information sciences, FOS: Computer and information sciences},

  title = {ZoeDepth: Zero-shot Transfer by Combining Relative and Metric Depth},

  publisher = {arXiv},

  year = {2023},

  copyright = {arXiv.org perpetual, non-exclusive license}
}
