CYD-Klipper

An implementation of a wireless Klipper, Bambu and Octoprint status display on an ESP32 + screen. Uses Moonraker to fetch data.

A simple and cheap solution to use a dedicated screen with Klipper, a 3d printing Firmware.
Also now with Bambu Lab and Octoprint printers!

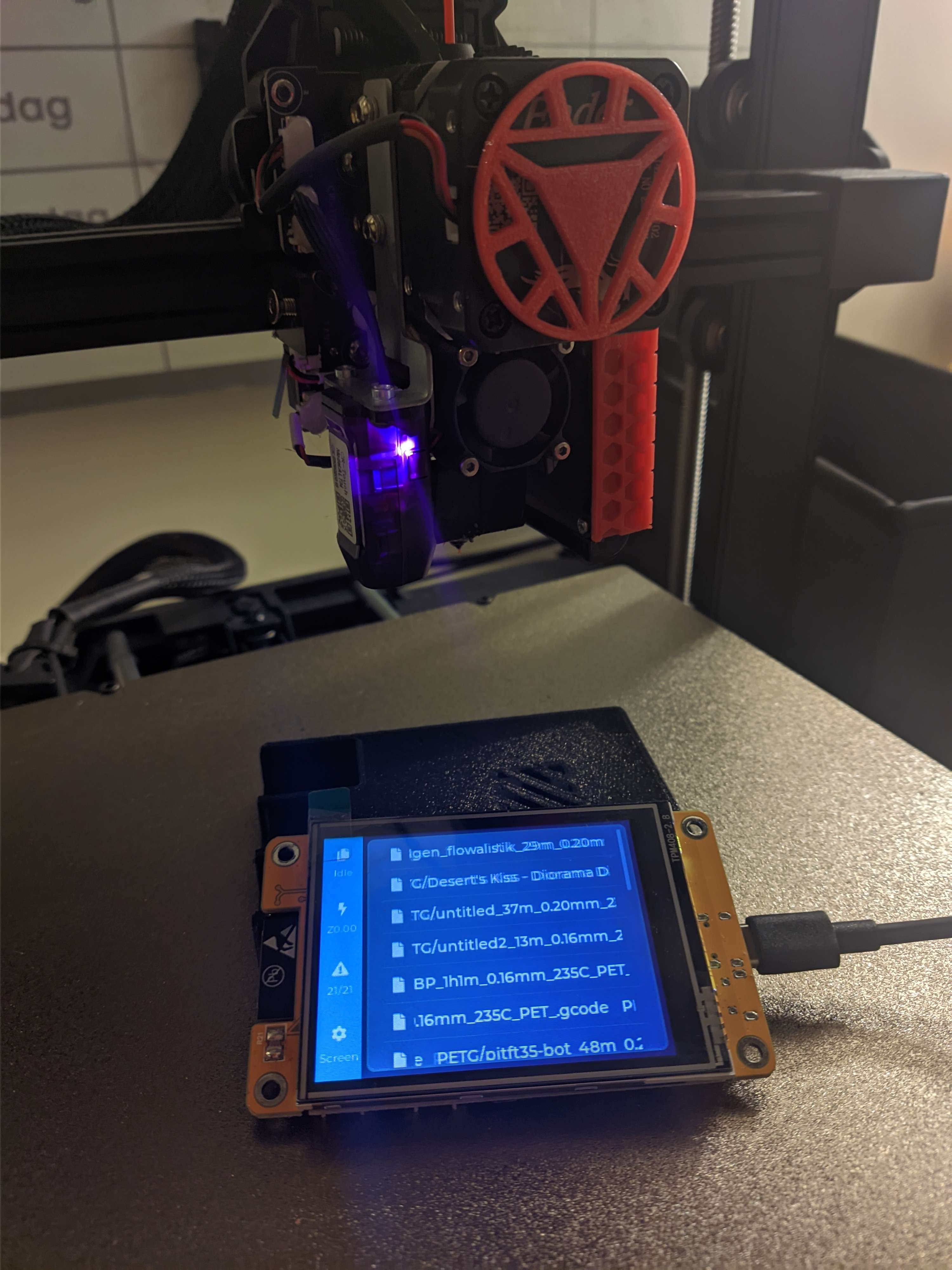

showcase_image

Required hardware

A ESP32-2432S028R is required to run this project. You can find out where to buy these on the "ESP32 Cheap Yellow Display" repository.

Features

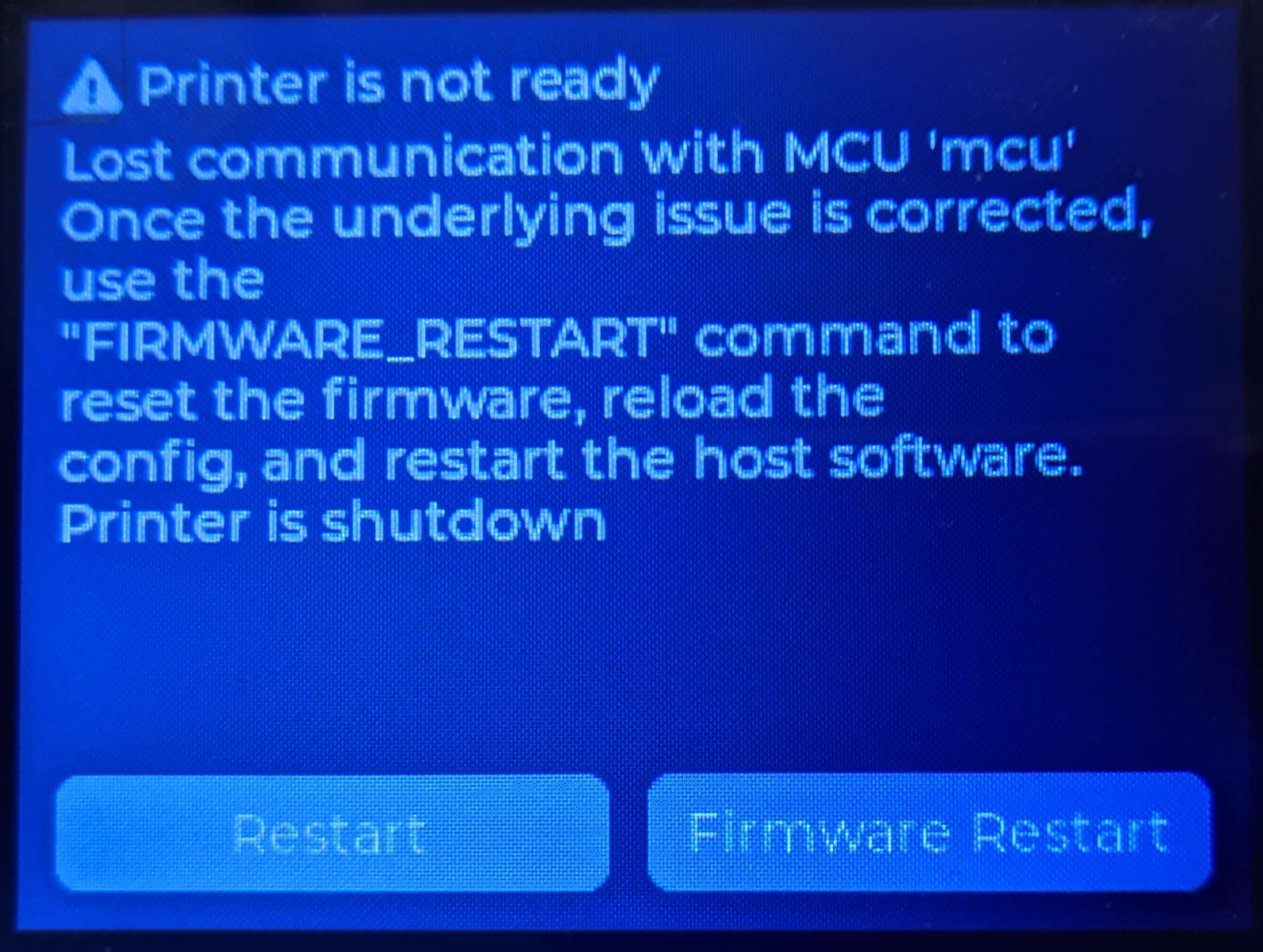

View printer status

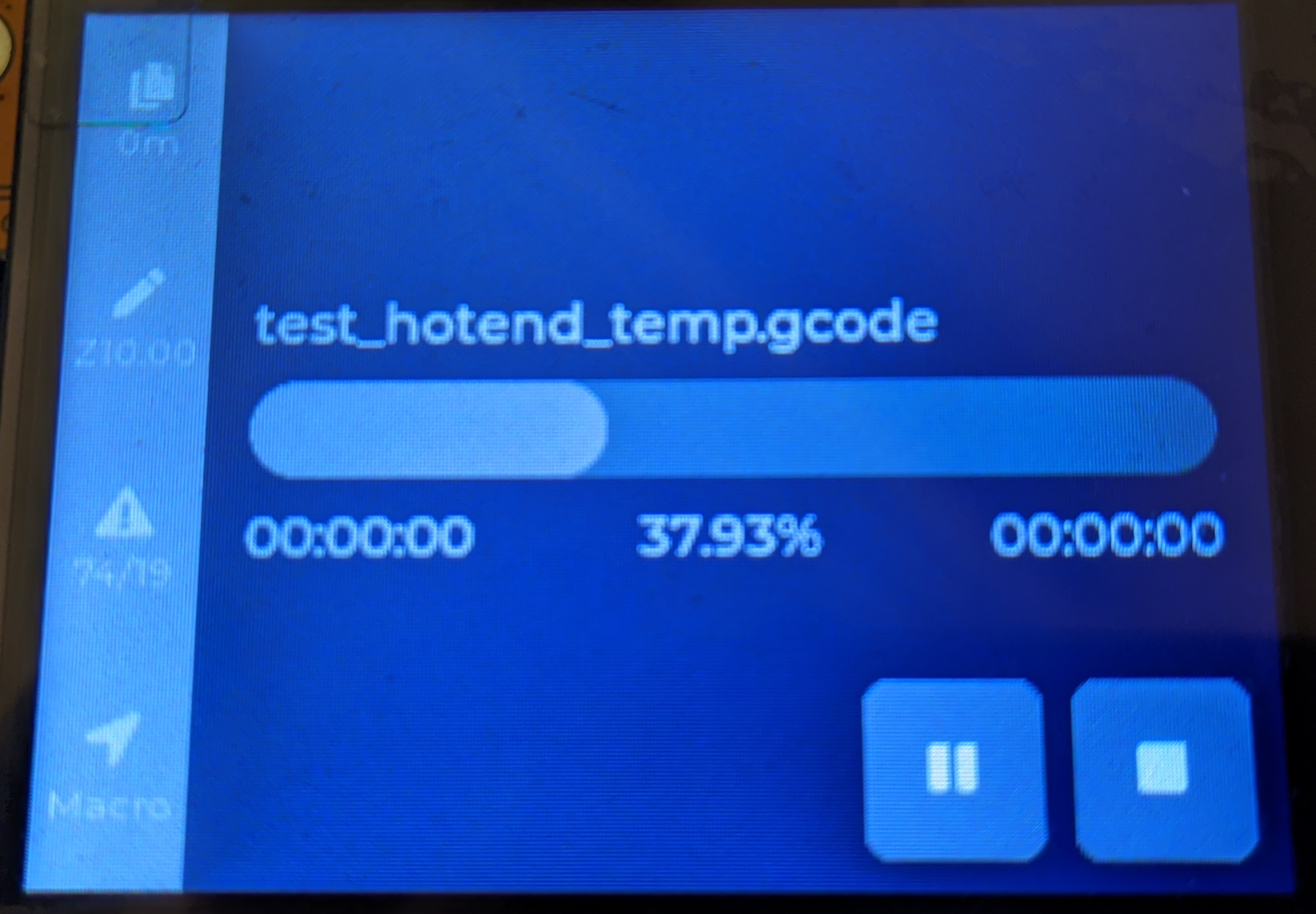

View print progress and print statistics

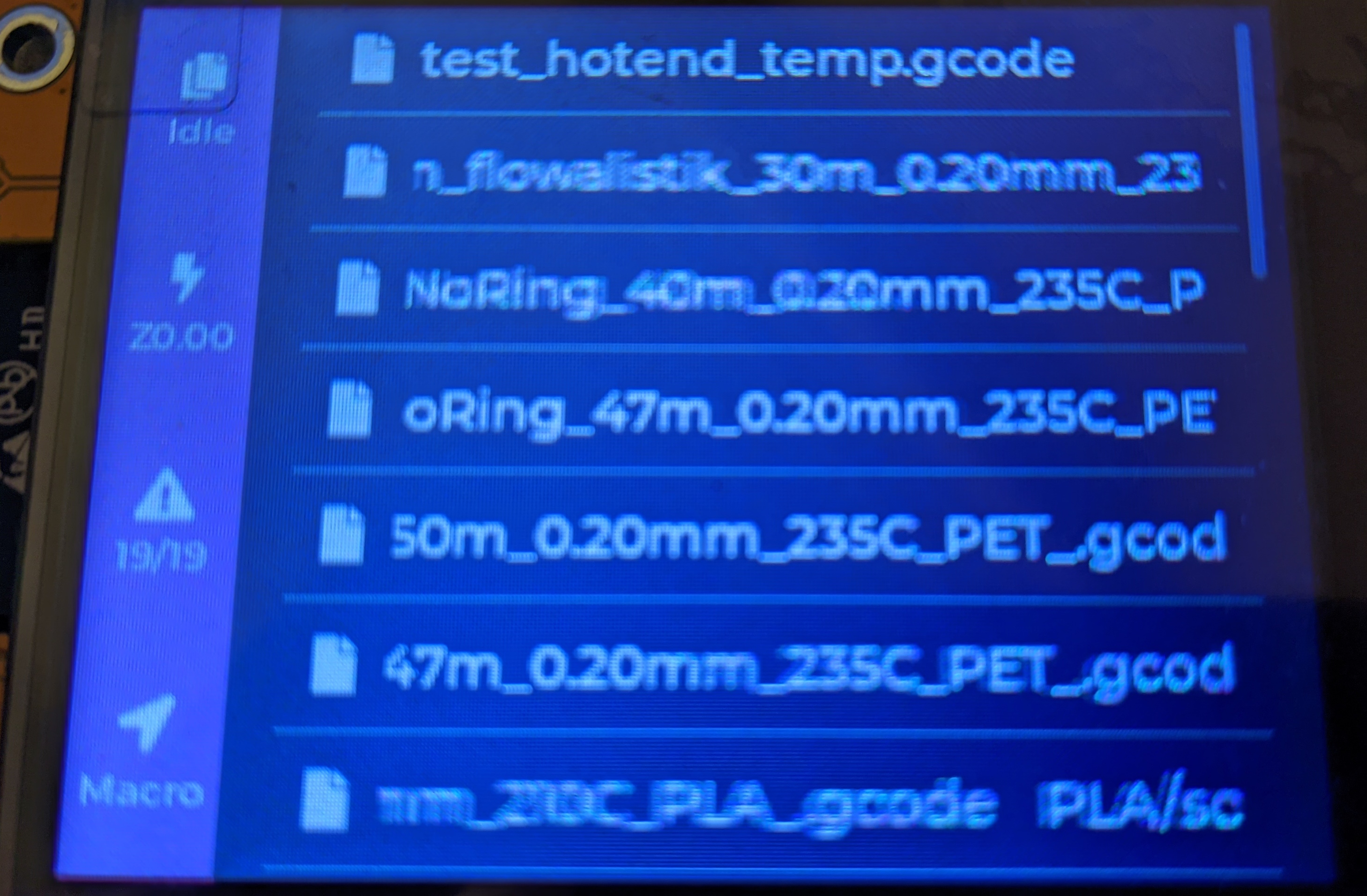

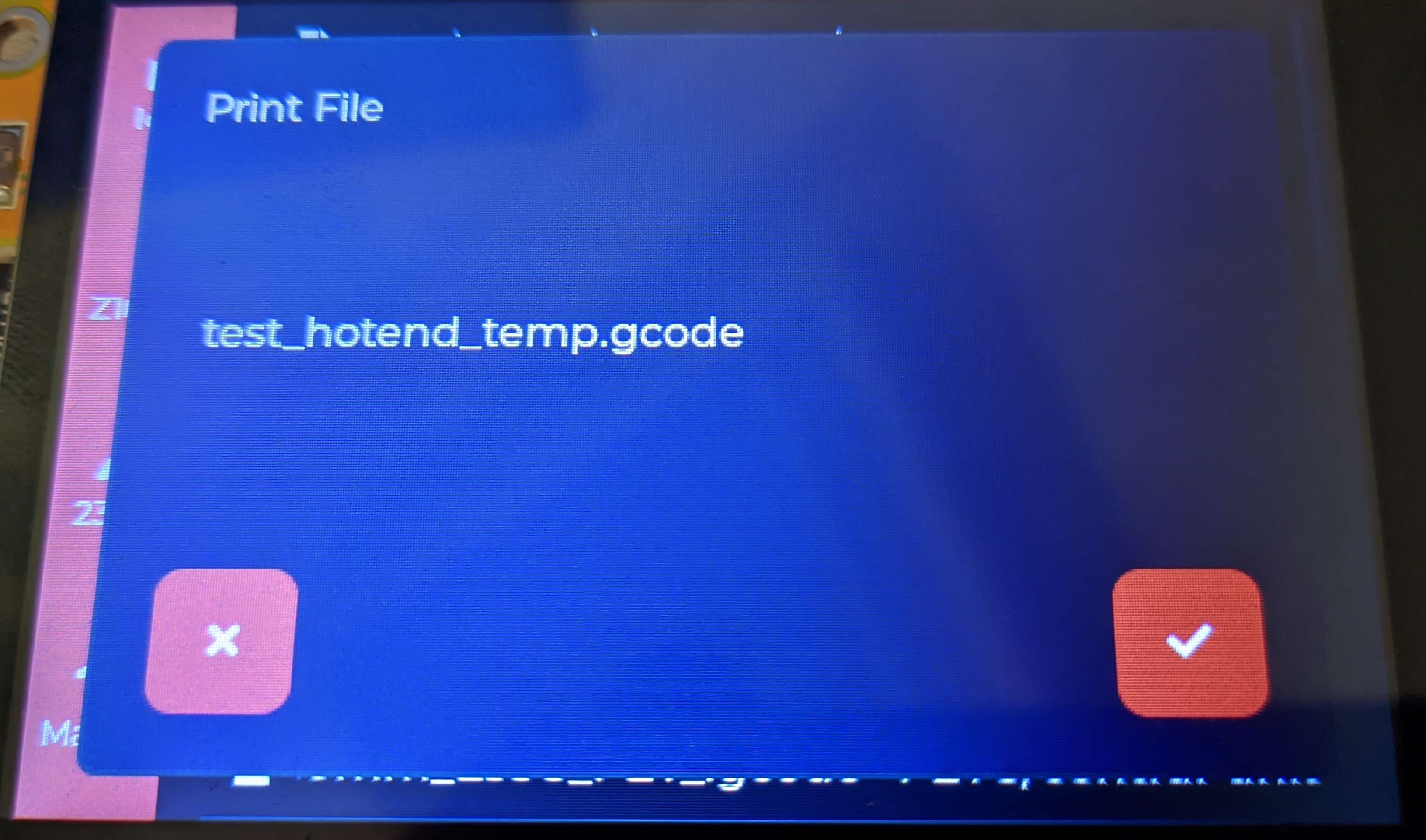

Start a print

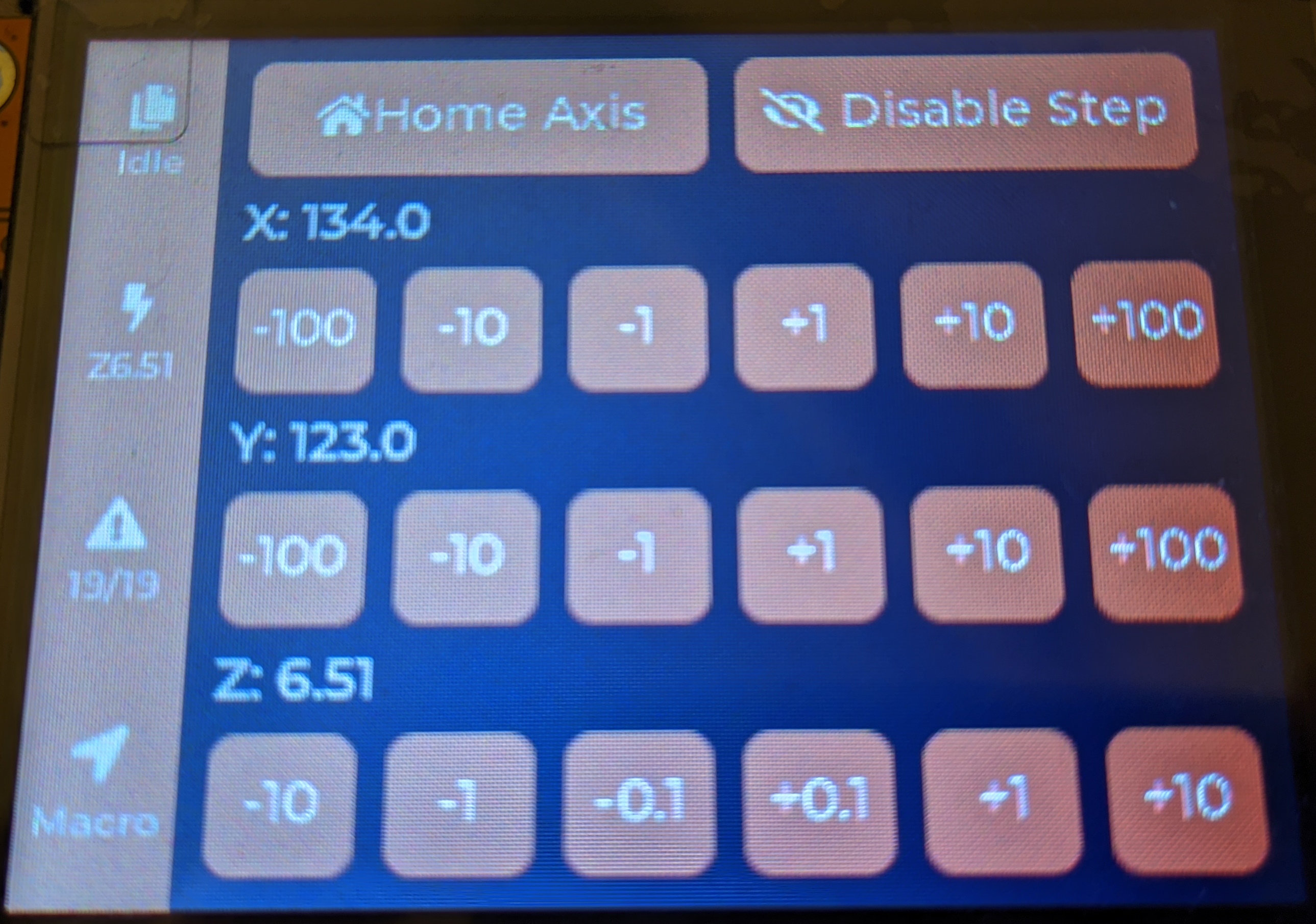

(When the printer is idle) move the printer

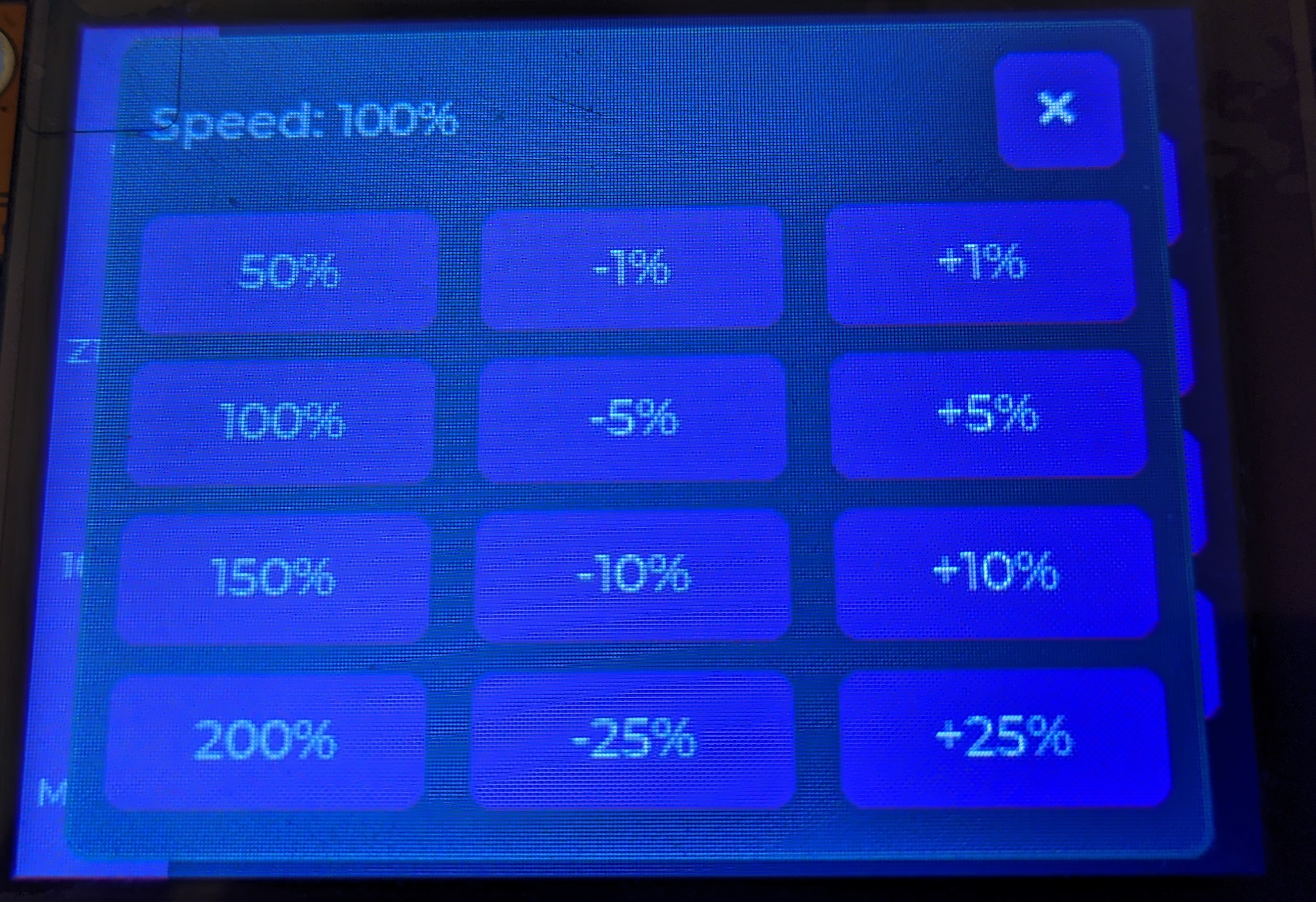

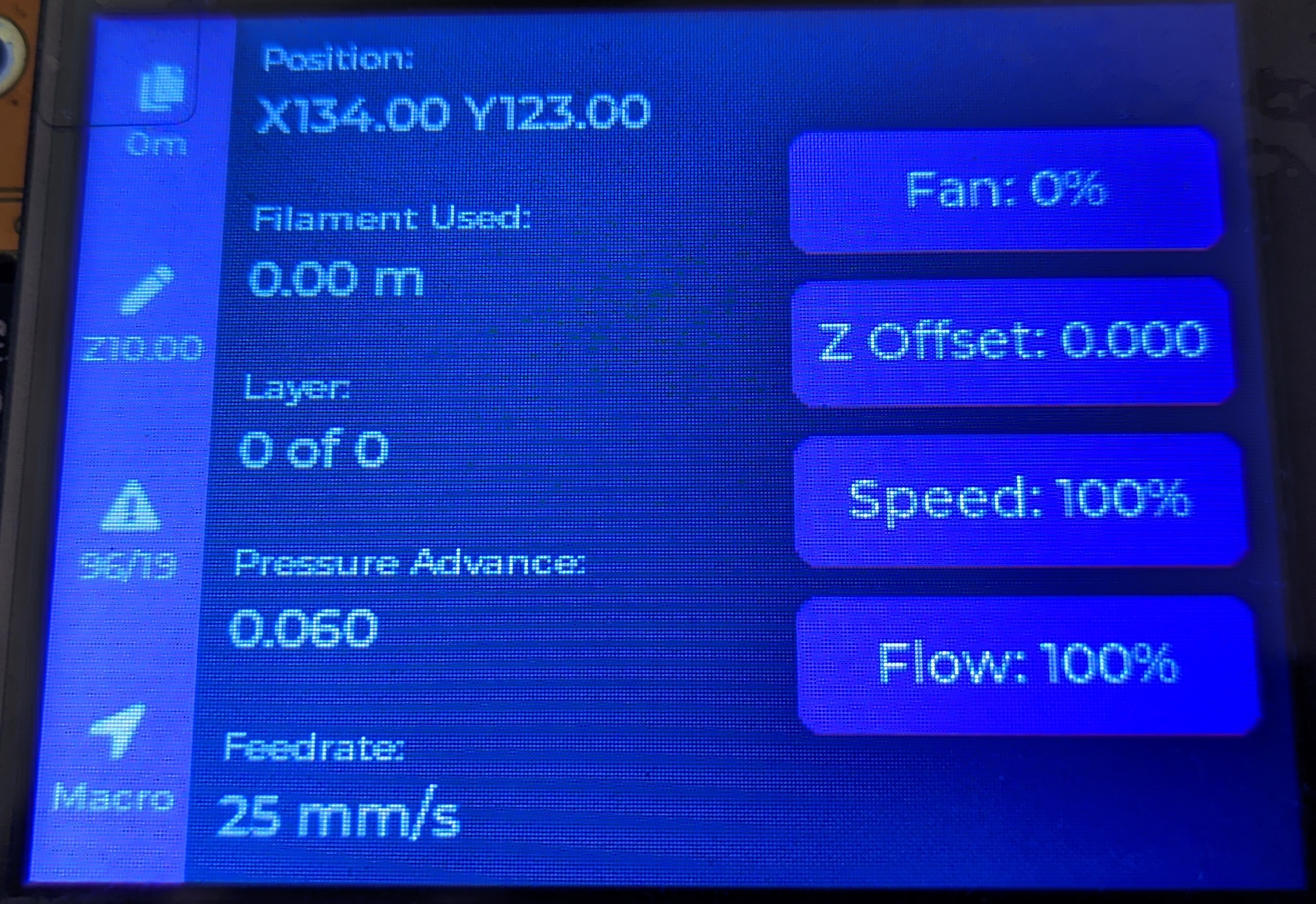

(During a print) set fan speed, flow rate, speed and z offset

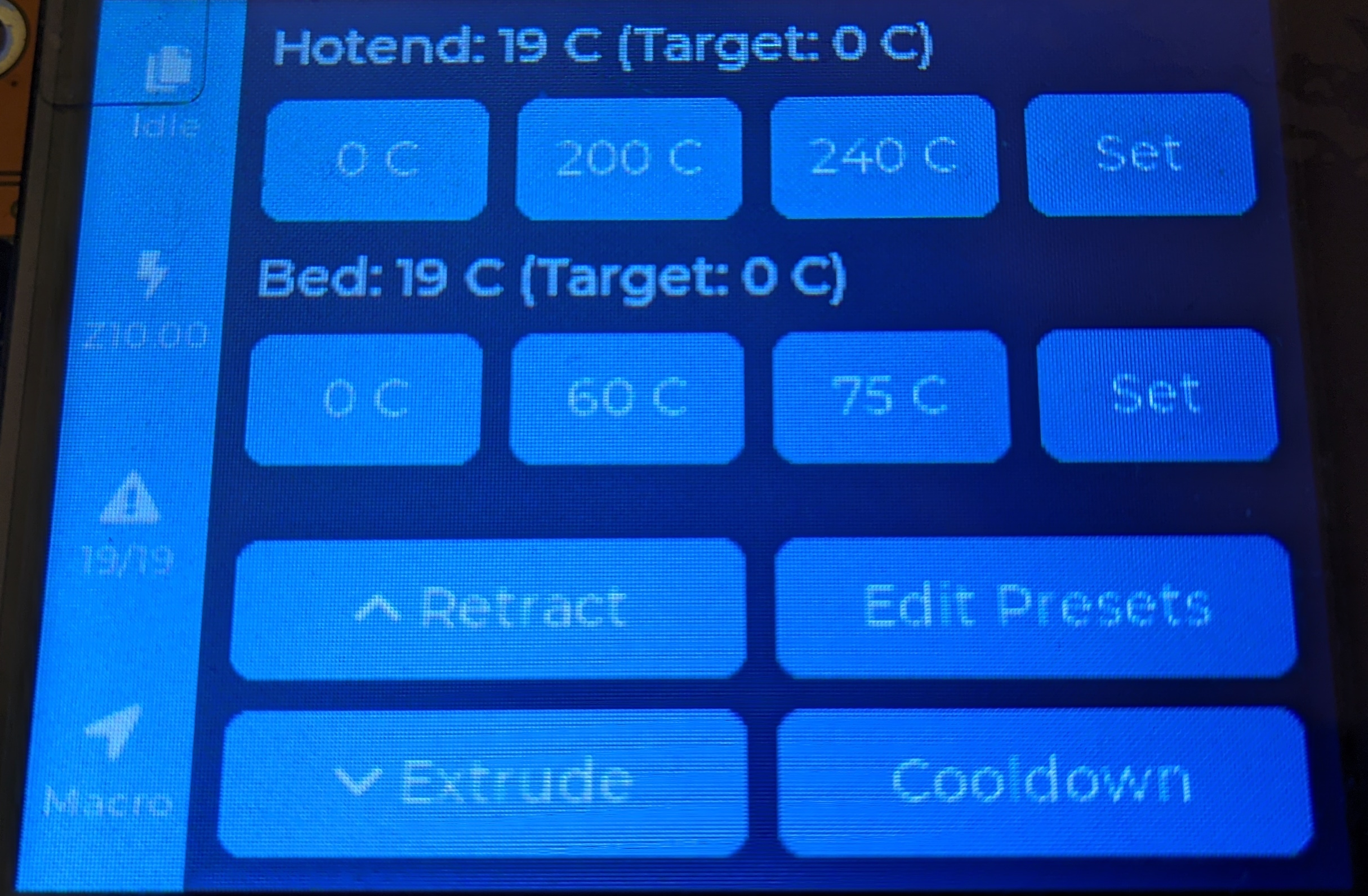

Manage temperature
Extrude/Retract filament

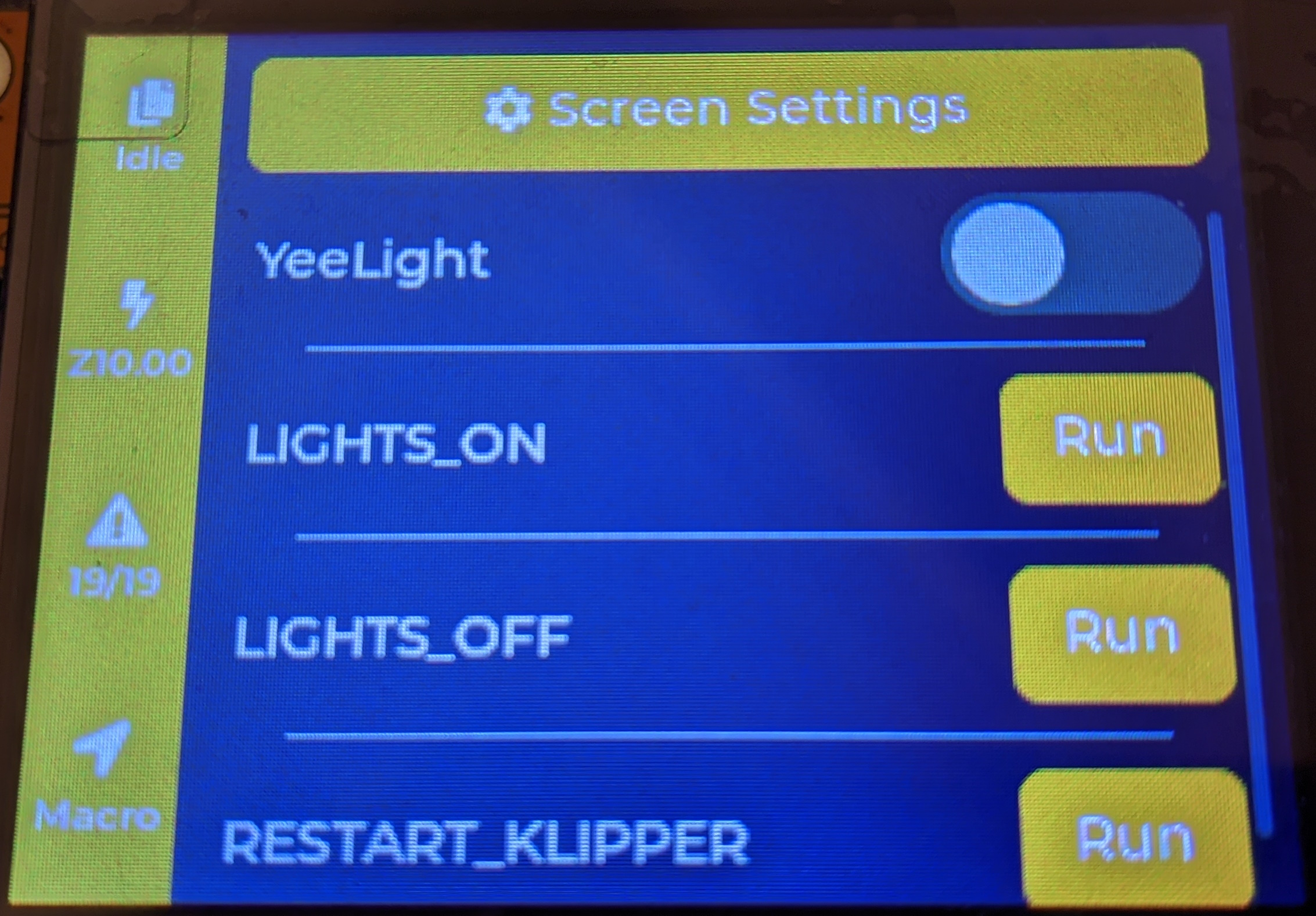

Execute predefined gcode macros
Toggle Moonraker power devices
OTA updates
Serial console over USB (115200 8n1, echo off, LF/LF)
Control Klipper, Octoprint and Bambu printers.
Wired Serial/Usb Klipper connection

Install

There is a web-based installer available. This is only supported on Chrome, Edge, Arc or Opera, and only on Desktop.

On initial install, all data should be wiped. On updates, data should be able to be kept without issues.

When there is an update available, a button in the settings will appear that can be pressed to update. If automatic updates are preferred, there is a toggle in the settings to automatically update. This will right after connecting to wifi update the screen.

Donate

If you found this project helpful, please consider a donation to my Ko-Fi. It would help out a lot in the development of this project, due to the need to buy the screens.

Thank you!

Where to buy hardware

All links below are affiliate links. Please also check yourself if there is a cheaper version available than the ones below. I have only linked ones that i have personally bought.

ESP32-2432S028R (2.8" Resistive, Cheapest)

ESP32-2432S032C (3.2" Capacitive)

ESP32-3248S035C (3.5" Capacitive)
