:rainbow: ERASOR (RA-L'21 with ICRA Option)

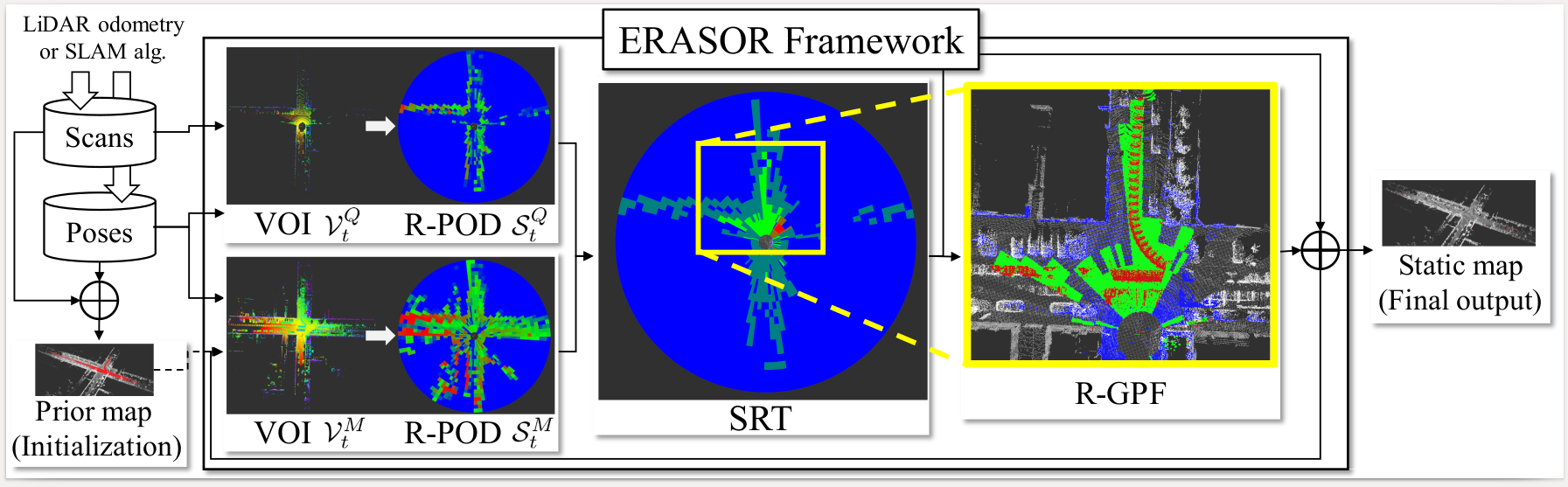

Official page of "ERASOR: Egocentric Ratio of Pseudo Occupancy-based Dynamic Object Removal for Static 3D Point Cloud Map Building", which is accepted by RA-L with ICRA'21 option
[Video] [Preprint Paper]

We provide all contents including

• Source code of ERASOR
• All outputs of the State-of-the-arts
• Visualization
• Calculation code of Preservation Rate/Rejection Rate

So enjoy our codes! :)

Contact: Hyungtae Lim (shapelimatkaistdotacdotkr)

Advisor: Hyun Myung (hmyungatkaistdotacdotkr)

NEWS

• 🎉 ERASOR2 is now available! Check out the successor at url-kaist/ERASOR2 — a ROS-free, pure-CMake C++ rewrite with a Python evaluator and improved benchmarks. If you're starting a new project, we recommend ERASOR2.
• 2026-05: Per-seq KITTI configs re-tuned against paper Table II; main-README and scripts/semantickitti2bag/README.md rewrites; expanded "ERASOR in the Wild" section with coordinate-frame cautions and a non-KITTI pitfall checklist.
• 2021-10: An example of running ERASOR in your own env is provided — see src/offline_map_updater/main_in_your_env.cpp and launch/run_erasor_in_your_env_vel16.launch. Details under ERASOR in the Wild.

---

Contents

0. Test Env.
1. Requirements
2. How to Run ERASOR
3. Calculate PR/RR
4. Benchmark
5. Visualization of All the State-of-the-arts
6. ERASOR in the Wild
7. Citation

Test Env.

The code is tested successfully at

• Linux 18.04 LTS
• ROS Melodic

Requirements

ROS Setting

• Install ROS on a machine.
• Also, jsk-visualization is required to visualize Scan Ratio Test (SRT) status.

bashCopy
sudo apt-get install ros-melodic-jsk-recognition
sudo apt-get install ros-melodic-jsk-common-msgs
sudo apt-get install ros-melodic-jsk-rviz-plugins

Build Our Package

• Thereafter, compile this package. We use catkin tools,

bashCopy
mkdir -p ~/catkin_ws/src
cd ~/catkin_ws/src
git clone https://github.com/LimHyungTae/ERASOR.git
cd .. && catkin build erasor

Python Setting

• Our metric calculation for PR/RR code is implemented by python2.7
• To run the python code, following pakages are necessary: pypcd, tqdm, scikit-learn, and tabulate

bashCopy
pip install pypcd
pip install tqdm
pip install scikit-learn
pip install tabulate

Prepared dataset

• Download the preprocessed KITTI data encoded into rosbag.
• The downloading process might take five minutes or so. All rosbags requires total 2.3G of storage space

bashCopy
wget https://urserver.kaist.ac.kr/publicdata/erasor/rosbag/00_4390_to_4530_w_interval_2_node.bag
wget https://urserver.kaist.ac.kr/publicdata/erasor/rosbag/01_150_to_250_w_interval_1_node.bag
wget https://urserver.kaist.ac.kr/publicdata/erasor/rosbag/02_860_to_950_w_interval_2_node.bag
wget https://urserver.kaist.ac.kr/publicdata/erasor/rosbag/05_2350_to_2670_w_interval_2_node.bag
wget https://urserver.kaist.ac.kr/publicdata/erasor/rosbag/07_630_to_820_w_interval_2_node.bag

NOTE! The rosbags above assume that the per-frame poses are estimated by SuMa (Behley & Stachniss, RSS 2018). As stated in §III.A of the paper, "Maps are constructed at the regular intervals with the poses provided by SuMa, which contains inherent uncertainty." If you regenerate any bag from raw SemanticKITTI data via scripts/semantickitti2bag/, copy sequences/<seq>/poses_suma_optim.txt to sequences/<seq>/poses.txt first so that pykitti.odometry.load_poses() picks up the SuMa poses; otherwise the resulting map will not align with the shipped ground-truth PCDs.

Description of Preprocessed Rosbag Files

• Please note that the rosbag consists of node. Refer to msg/node.msg.
• Note that each label of the point is assigned in intensity for the sake of convenience.
• And we set the following classes are dynamic classes:

# 252: "moving-car"
# 253: "moving-bicyclist"
# 254: "moving-person"
# 255: "moving-motorcyclist"
# 256: "moving-on-rails"
# 257: "moving-bus"
# 258: "moving-truck"
# 259: "moving-other-vehicle"

• Please refer to std::vector<int> DYNAMIC_CLASSES in our code :).

How to Run ERASOR

We will explain how to run our code on seq 05 of the KITTI dataset as an example.

Step 1. Build naive map

• Set the following parameters in launch/mapgen.launch.
  • target_rosbag: The name of target rosbag, e.g. 05_2350_to_2670_w_interval_2_node.bag
  • save_path: The path where the naively accumulated map is saved.
• Launch mapgen.launch and play corresponding rosbag on the other bash as follows:

bashCopy
roscore # (Optional)
roslaunch erasor mapgen.launch
rosbag play 05_2350_to_2670_w_interval_2_node.bag

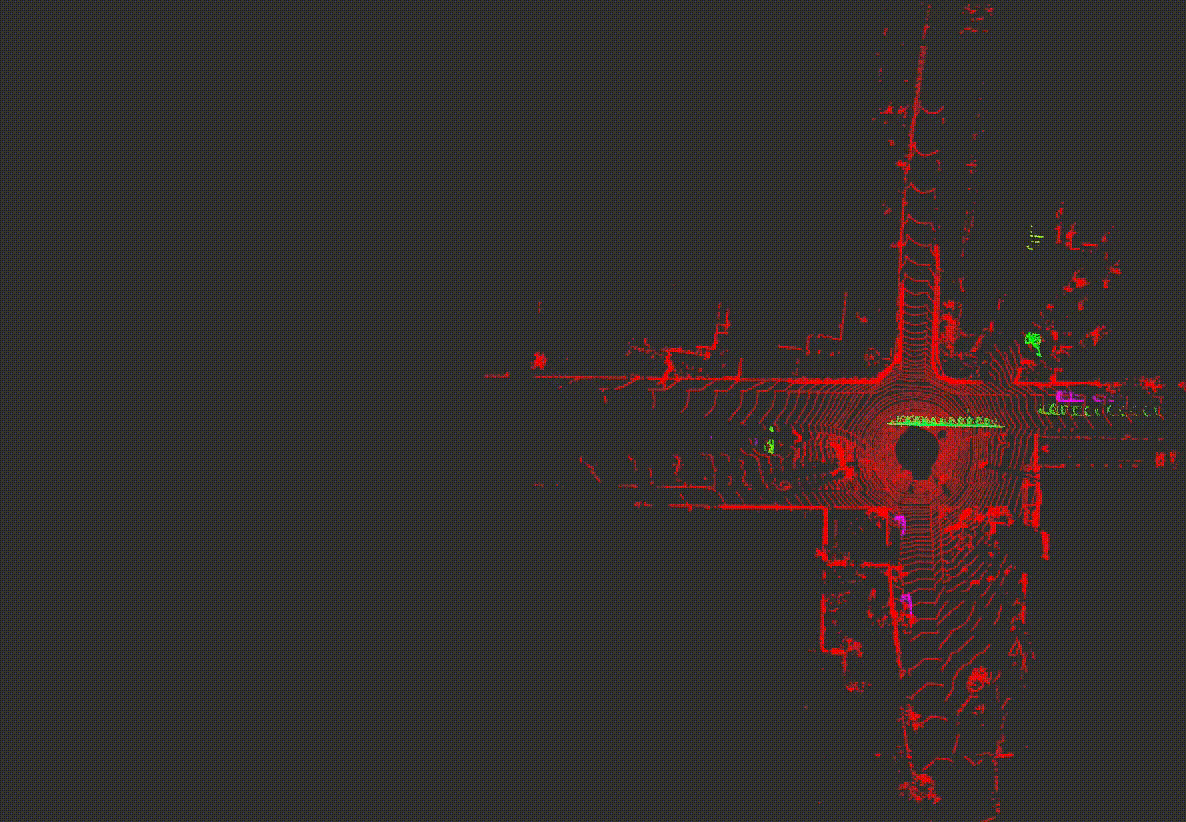

• Then, dense map and voxelized map are auto-saved at the save path. Note that the dense map is used for evaluation to fill corresponding labels. The voxelized map will be an input of step 2 as a naively accumulated map.

Step 2. Run ERASOR

• Set the following parameters in config/seq_05.yaml.

  • initial_map_path: The path of naively accumulated map
  • save_path: The path where the filtered static map is saved.

• Run the following command for each bash.

bashCopy
roscore # (Optional)
roslaunch erasor run_erasor.launch target_seq:="05"
rosbag play 05_2350_to_2670_w_interval_2_node.bag

News (22.03.01): The submap module is employed to speed up when extracing map VOI.

Plase check the below rosparams in run_erasor.launch:

<rosparam param="/large_scale/is_large_scale">true</rosparam>
<rosparam param="/large_scale/submap_size">160.0</rosparam>

Note that appropriate submap_size is > 2 * max_range.

• IMPORTANT: After finishing running ERASOR, run the following command to save the static map as a pcd file on another bash.
• "0.2" denotes voxelization size.

bashCopy
rostopic pub /saveflag std_msgs/Float32 "data: 0.2"

• Then, you can see the printed command as follows:

• The results will be saved under the save_path folder, i.e. $save_path$/05_result.pcd.

Calculate PR/RR

You can check our results directly.

• First, download all pcd materials.

bashCopy
wget https://urserver.kaist.ac.kr/publicdata/erasor/erasor_paper_pcds.zip
unzip erasor_paper_pcds.zip

Then, run the analysis code as follows:

bashCopy
python analysis.py --gt $GT_PCD_PATH$ --est $EST_PCD_PATH$

E.g,

bashCopy
python analysis.py --gt /home/shapelim/erasor_paper_pcds/gt/05_voxel_0_2.pcd --est /home/shapelim/erasor_paper_pcds/estimate/05_ERASOR.pcd

NOTE: For estimating PR/RR, more dense pcd file, which is generated in the mapgen.launch procedure, is better to estimate PR/RR precisely.

Benchmark

We re-ran the current master branch on the five SemanticKITTI snippets shipped with this repo (after re-tuning config/seq_{00,02}.yaml) and compared the resulting Preservation Rate (PR), Rejection Rate (RR), and F1 against the original Table II of the paper. Bold marks the higher value per cell.

Seq	Frames	PR [%] ( $\color{#c026d3}\textsf{paper}$ / $\color{#0969da}\textsf{ours}$ )	RR [%] ( $\color{#c026d3}\textsf{paper}$ / $\color{#0969da}\textsf{ours}$ )	F1 ( $\color{#c026d3}\textsf{paper}$ / $\color{#0969da}\textsf{ours}$ )
00	4390 – 4530	$\color{#c026d3}93.980$ / $\color{#0969da}\mathbf{95.790}$	$\color{#c026d3}\mathbf{97.081}$ / $\color{#0969da}95.642$	$\color{#c026d3}0.955$ / $\color{#0969da}\mathbf{0.957}$
01	150 – 250	$\color{#c026d3}91.487$ / $\color{#0969da}\mathbf{91.890}$	$\color{#c026d3}\mathbf{95.383}$ / $\color{#0969da}94.777$	$\color{#c026d3}\mathbf{0.934}$ / $\color{#0969da}0.933$
02	860 – 950	$\color{#c026d3}\mathbf{87.731}$ / $\color{#0969da}87.136$	$\color{#c026d3}97.008$ / $\color{#0969da}\mathbf{99.337}$	$\color{#c026d3}0.921$ / $\color{#0969da}\mathbf{0.928}$
05	2350 – 2670	$\color{#c026d3}\mathbf{88.730}$ / $\color{#0969da}88.589$	$\color{#c026d3}98.262$ / $\color{#0969da}\mathbf{98.328}$	$\color{#c026d3}\mathbf{0.933}$ / $\color{#0969da}0.932$
07	630 – 820	$\color{#c026d3}90.624$ / $\color{#0969da}\mathbf{93.876}$	$\color{#c026d3}\mathbf{99.271}$ / $\color{#0969da}98.875$	$\color{#c026d3}0.948$ / $\color{#0969da}\mathbf{0.963}$

_{$\color{#c026d3}\textsf{Magenta}$ = paper (Table II), $\color{#0969da}\textsf{blue}$ = our re-run on the current master commit. Both columns are evaluated against the dense semantic ground-truth map shipped in erasor_paper_pcds/gt/<seq>_voxel_0_2.pcd at a 0.2 m voxel size using scripts/analysis_runner.py. Each "ours" run uses a freshly mapgen-built accumulated map as initial_map_path so that the initial map sits in the same coordinate frame as the paper GT.}

• We also provide all pcd files. See Visualization of All the State-of-the-arts below.

Visualization of All the State-of-the-arts

• First, download all pcd materials.

bashCopy
wget https://urserver.kaist.ac.kr/publicdata/erasor/erasor_paper_pcds.zip
unzip erasor_paper_pcds.zip

• Set parameters in config/viz_params.yaml correctly

  • abs_dir: The absolute directory of pcd directory
  • seq: Target sequence (00, 01, 02, 05, or 07)

• After setting the parameters, launch following command:

bashCopy
roslaunch erasor compare_results.launch

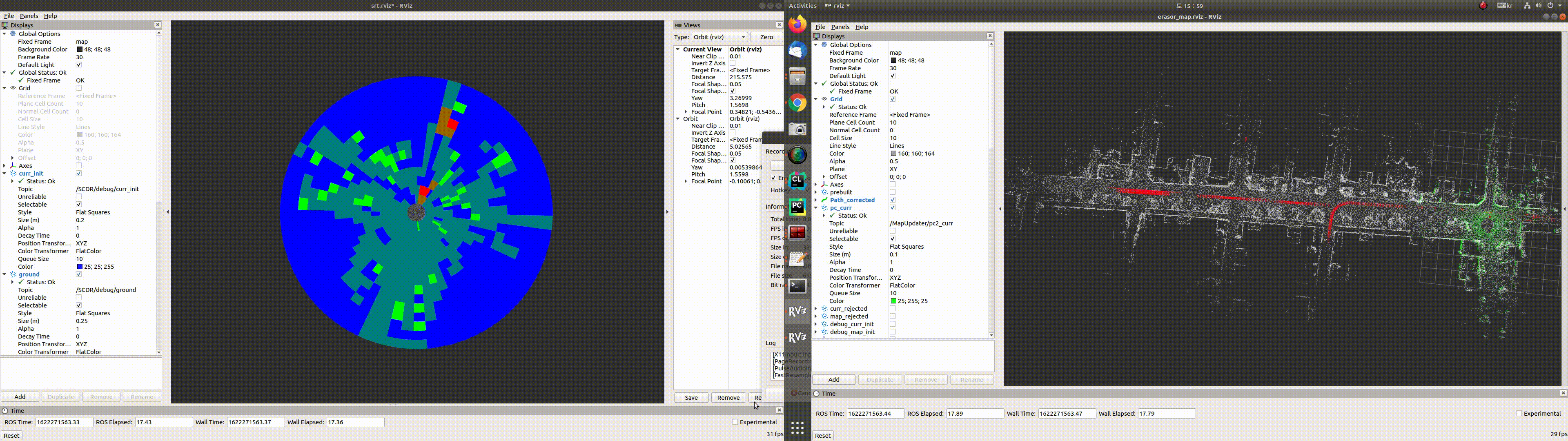

• Then you can inspect all pcd results that are already parsed into static points and dynamic points.
• All examples are here:
  • Sequence 00: 4,390~4,530
  • Sequence 01: 150~250
  • Sequence 02: 860~950
  • Sequence 05: 2,350~2,670
  • Sequence 07: 630~820

ERASOR in the Wild

In your own dataset

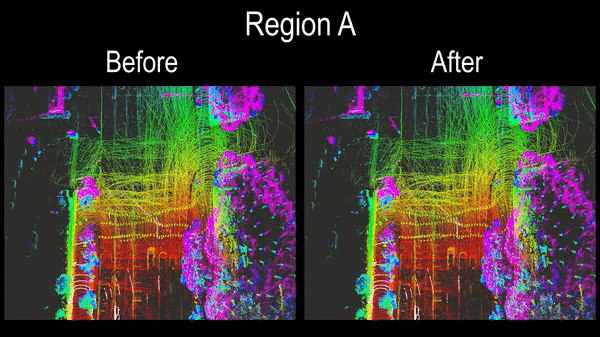

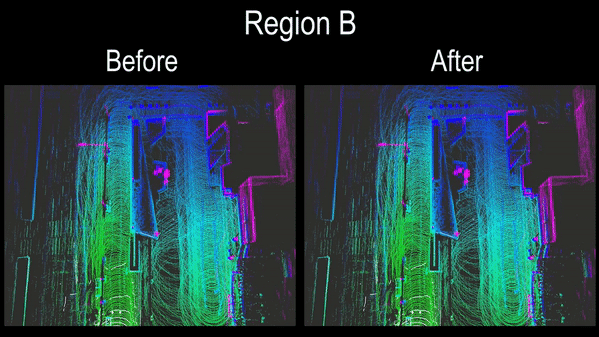

To check generalization of ERASOR, we tested ERASOR in more crowded environments. In that experiment, Velodyne Puck 16 was employed, and poses are estimated by LIO-SAM.

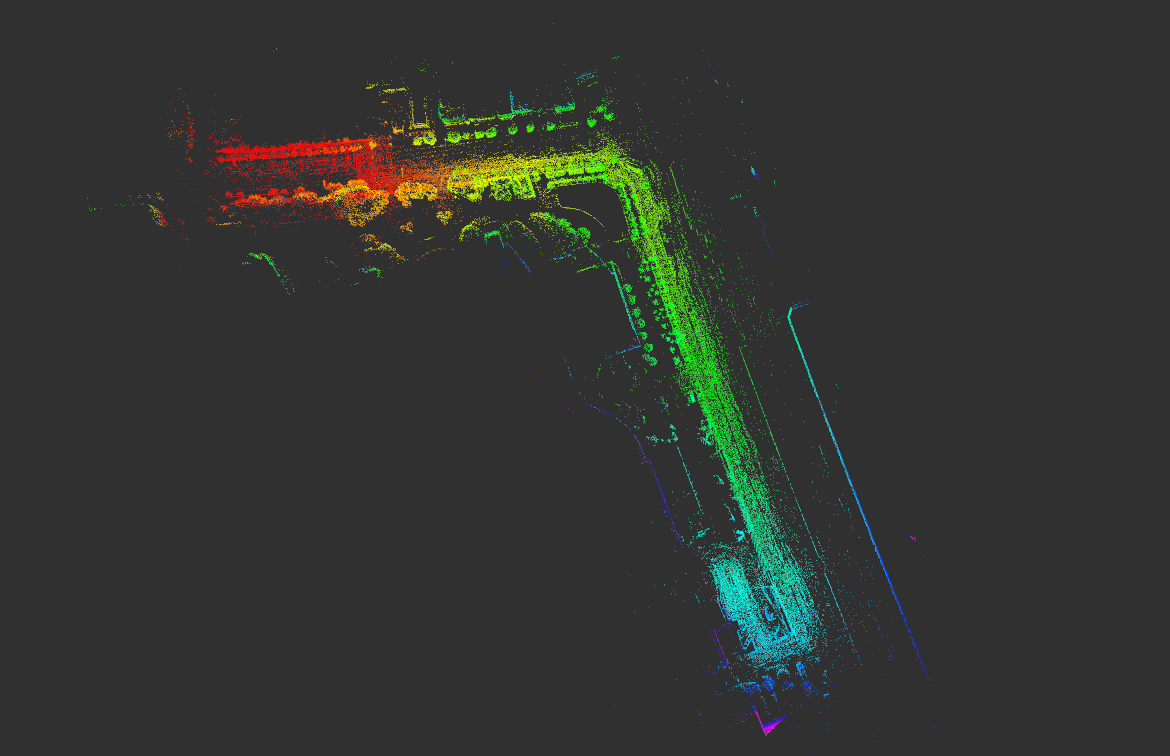

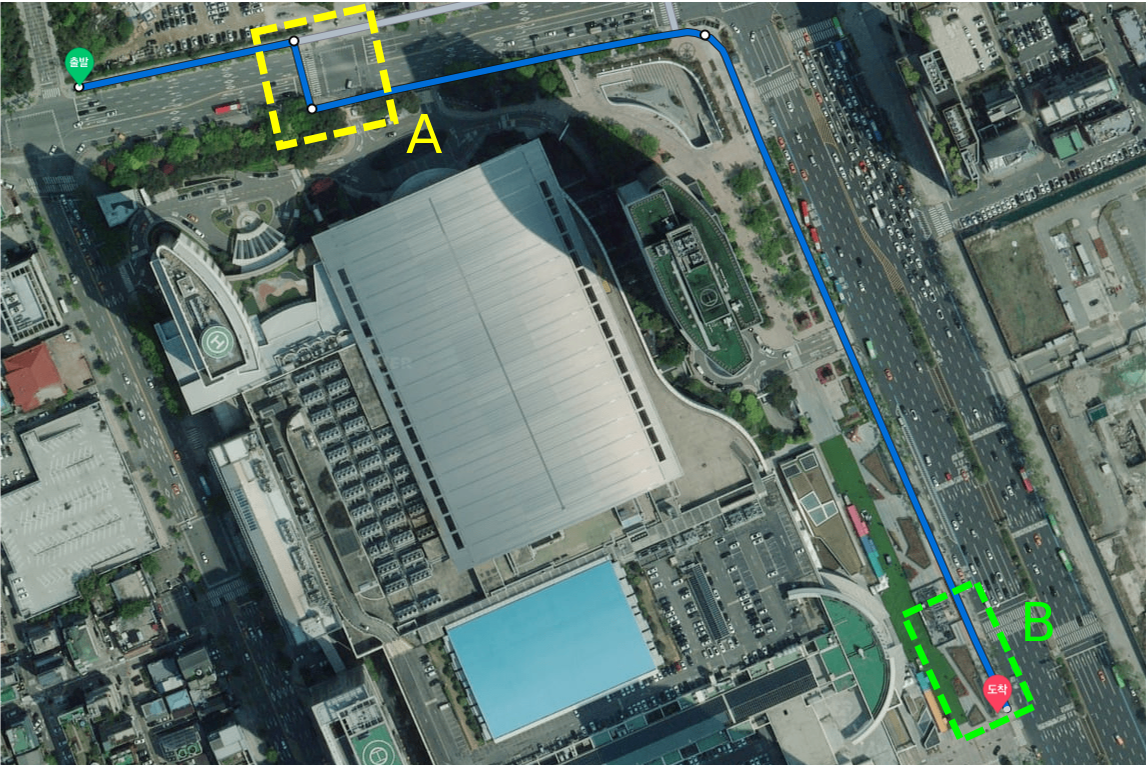

Satellite map	Pcd map by LIO-SAM

When running ERASOR in your own environments, refer to src/offline_map_updater/main_in_your_env.cpp and launch/run_erasor_in_your_env_vel16.launch. The non-KITTI driver reads per-frame point clouds + a CSV of poses (instead of a rosbag of node messages) and feeds them to the same OfflineMapUpdater.

You can learn how to set things up by reproducing our pre-set configuration first:

bashCopy
wget https://urserver.kaist.ac.kr/publicdata/erasor/bongeunsa_dataset.zip
unzip bongeunsa_dataset.zip

1. Input layout

Modify data_dir, MapUpdater/initial_map_path, and MapUpdater/save_path in config/your_own_env_vel16.yaml to point at your dataset. data_dir must contain:

<data_dir>/
├── pcds/
│   ├── 000000.pcd          # per-frame LiDAR scan (in the LiDAR's own frame)
│   ├── 000001.pcd
│   └── ...
├── dense_global_map.pcd    # naively-accumulated map you want ERASOR to clean
└── poses_lidar2body.csv    # one pose per frame (see format below)

poses_lidar2body.csv has one header line and one comma-separated row per frame. Each row has at least 9 columns; only columns 3–9 are used (0-indexed: pose[2..8]):

<ignored>, <ignored>, x, y, z, qx, qy, qz, qw

Indices 0–1 are reserved (we use them for timestamp / frame index but they aren't read). The CSV is parsed in main_in_your_env.cpp at load_all_poses().

❗ NOTE — what the poses must represent. The CSV name is historical and misleading. Each row is T_map_from_lidar — i.e. the transformation that takes a point in the LiDAR frame of that specific scan and places it directly into the map frame. Concretely, pose_i · pcds/00000<i>.pcd must overlay correctly on dense_global_map.pcd. Verify this before tuning anything else (an easy sanity check is to load the dense map and one transformed scan in CloudCompare or RViz — the static structures should overlay to within a few centimetres).

2. tf/lidar2body and the body frame

OfflineMapUpdater exposes a separate tf/lidar2body extrinsic in the yaml (7 floats: [x, y, z, qx, qy, qz, qw]). It is applied to every query scan before the egocentric VoI is extracted:

body_cloud = tf_lidar2body · lidar_cloud
map_cloud  = pose_i · body_cloud           # implicit: pose_i must be T_map_from_body in this convention

Two valid conventions:

Convention	poses_lidar2body.csv contains	tf/lidar2body should be
(A) "bake the offset into the poses" (what the bongeunsa example uses)	T_map_from_lidar (already includes the LiDAR-to-body offset, since body == lidar for ERASOR's purposes)	identity = [0, 0, 0, 0, 0, 0, 1]
(B) "keep poses in body frame"	T_map_from_body	the actual LiDAR-to-body extrinsic of your robot

❗ NOTE — body frame defines min_h / max_h. ERASOR's vertical thresholds (min_h, max_h, th_bin_max_h) are measured in the body frame after tf/lidar2body is applied. If your body frame's Z axis points up and Z = 0 sits at the LiDAR mount, then for a robot whose LiDAR is 1.6 m above the ground, you want min_h ≈ -1.6 (ground level) and max_h ≈ 1.5 (head clearance). If the resulting static map is tilted, shifted, or you see no ground retrieval, the most likely cause is a mismatch in convention (A vs B) — pick one and stick to it.

3. Launch

bashCopy
roslaunch erasor run_erasor_in_your_env_vel16.launch

The launch file loads config/your_own_env_vel16.yaml, starts main_in_your_env_ros, and opens two RViz views. After the last frame is processed the static map is saved to ~/staticmap_via_erasor.pcd.

Results

<details> <summary><b>📐 Setting appropriate parameters (per-sensor tuning notes — click to expand)</b></summary>

• Per-sensor geometry — depending on the LiDAR you use, max_range, num_rings, and num_sectors need to be changed so that each angular bin still contains enough points to fit a ground plane. For a low-channel LiDAR (e.g. Velodyne Puck-16), use small values similar to config/your_own_env_vel16.yaml (max_range: 9.5, num_rings: 8, num_sectors: 60); for 64-channel SemanticKITTI we use 60–80 m, 15–20 rings, 60–108 sectors.
• Vertical thresholds — set min_h / max_h to your body-frame VoI extents (see §2 above) and tune th_bin_max_h (a height delta above the per-bin ground) to whatever stops dynamic-but-tall obstacles from being reverted as ground. Typical values are 0.05 – 0.20 m.
• Ground filter — if too many points are classified as ground, reduce gf_dist_thr (the plane-fit inlier distance). If the ground filter misses obvious flat ground, raise it.
• Aggressiveness — scan_ratio_threshold is the single most impactful knob (higher = more aggressive removal). Sweep it over {0.10, 0.15, 0.20, 0.25, 0.30} and pick the F1 maximum; lowering also helps when you see static points being deleted (false positives). The KITTI configs in config/seq_*.yaml are a calibrated starting point per environment type (intersection, highway, countryside).
• Intensity carries the label. The pipeline assumes each input point's intensity field encodes the SemanticKITTI semantic label (uint32 reinterpreted as float32). If you only want the static map output and don't care about PR/RR, set intensity = 0 everywhere — ERASOR will still run, but scripts/analysis_runner.py won't have ground-truth labels to compare against.

</details> <details> <summary><b>⚠️ Common pitfalls when bringing your own data (click to expand)</b></summary>

1. Wrong pose convention → static map appears rotated or offset by tens of metres. Sanity-check by overlaying pose_0 · pcds/000000.pcd on dense_global_map.pcd in CloudCompare. Most points should sit within 0.5 × voxel_size of the dense map (see scripts/analysis_runner.py for an automated overlap check we use on KITTI).
2. Mismatched units between the dense map (.pcd) and the per-frame scans (e.g. one is in meters, the other in millimetres). All inputs must be in metres.
3. pcds/ indices not starting at 0 / not contiguous. The driver reads pcds/000000.pcd, 000001.pcd, … sequentially. Missing frames will be skipped silently. Use --init_idx N if your sequence starts later.
4. Labels in intensity get cast incorrectly. ERASOR stores uint32 labels inside a float32 field via byte reinterpretation. If you write the labels as a float number (e.g. intensity = 252.0 for a moving car), the C++ side will not parse the label — encode them via np.float32(np.uint32(label).view(np.float32)) (see scripts/semantickitti2bag/README.md).
5. Dense map and scans use different lidar-to-body offsets. If your dense map was accumulated by an external SLAM (e.g. LIO-SAM) using a slightly different extrinsic than the one you put in tf/lidar2body, the input/output frames disagree. Re-run mapgen with the same extrinsic the live pipeline will see.

</details>

Citation

If you use our code or method in your work, please consider citing the following:

@article{lim2021erasor,
title={ERASOR: Egocentric Ratio of Pseudo Occupancy-Based Dynamic Object Removal for Static 3D Point Cloud Map Building},
author={Lim, Hyungtae and Hwang, Sungwon and Myung, Hyun},
journal={IEEE Robotics and Automation Letters},
volume={6},
number={2},
pages={2272--2279},
year={2021},
publisher={IEEE}
}
