Secure NAS

What is it?

This is the complete configuration for a Linux-based multiservice secure server that you can create yourself.

Features

• A totally open source solution.
• Big hardware selection guide and "concurrents" description. On 2018.
• Debian-based.
• ZFS is the only filesystem that is used. Root and boot on ZFS mirror.
• Full-disk encryption with a native LUKS.
• Protection against reboot. Lightweight SSH server integrated in initramfs. You can decrypt disks remotely.
• All services communicate with user via HTTPS, even if the service does not explicitly support HTTPS.
• HTTPS with a regular certificate signed by Let's Encrypt.
• Certificate auto renewal.
• One certificate for all services using reverse proxy.
• Public-available services with CloudNS.
• Docker-isolation between services and between services and host.
• Most services are well-tested and stable from Linuxserver.io initiative.
• Multiuser with one authorization provider.
• LDAP as an authorization provider.
• Service can use LDAP authorization even if it doesn't support LDAP native.
• Integration between services. I.e. the media search service can use the torrent downloader to download movie.
• Some services were patched by the author for integration with others (i.e. Nextcloud was patched for use inside iframe Organizr).

And much more...

Subsystems

NAS control

OpenMediaVault installed as a package.

Backup

Multiagent backup service.
Implemented using UrBackup.

Cloud

Implemented using:

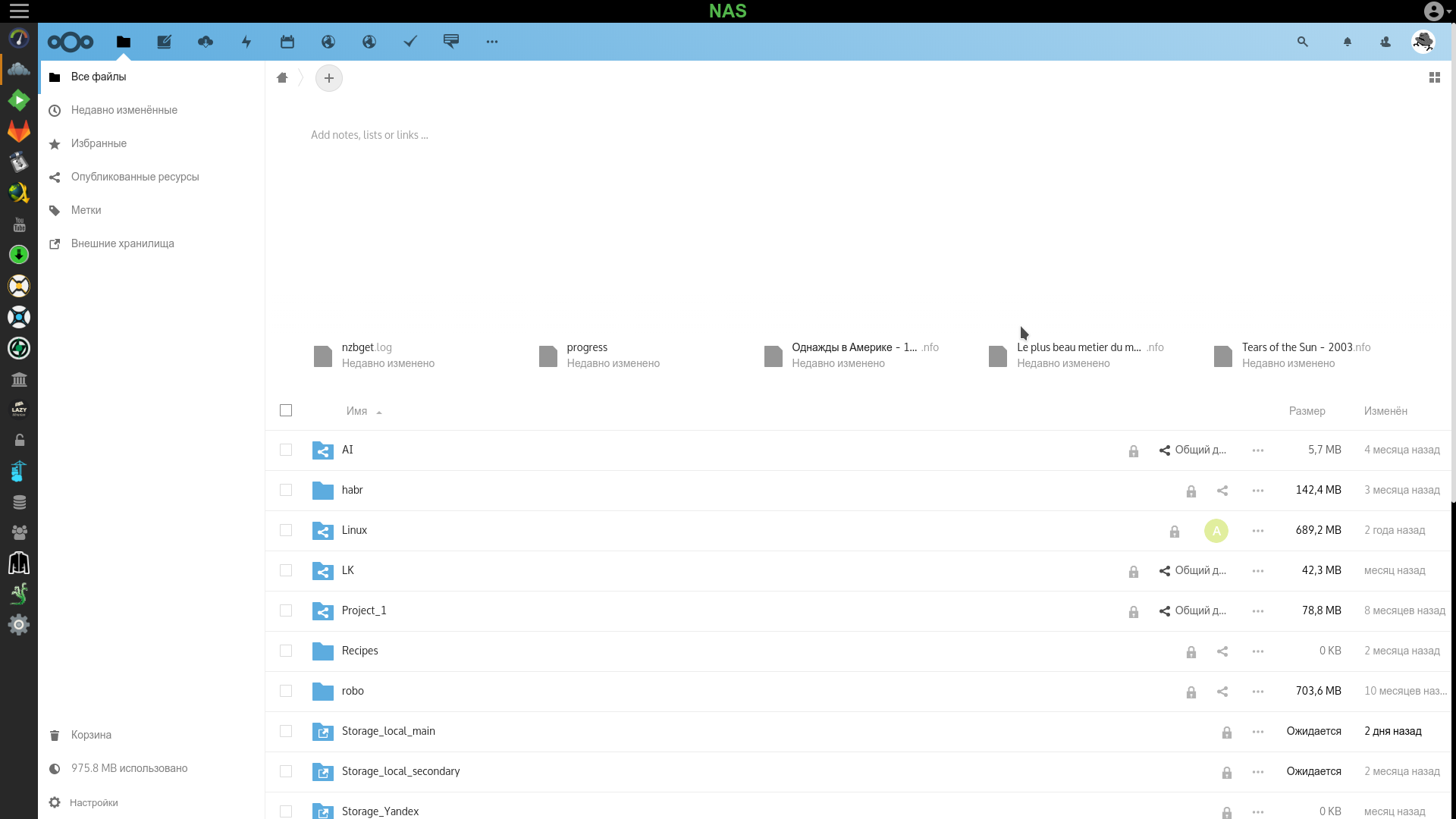

• NextCloud as a cloud provider.
• OnlyOffice as an office suite, integrated with NextCloud.

Download subsystem

• Searchers:
  • Radarr for the films.
  • Sonarr for the TV shows and series.
  • Lidarr for the music.
• Downloaders:
  • jDownloader2 for files.
  • NZBGet for Usenet.

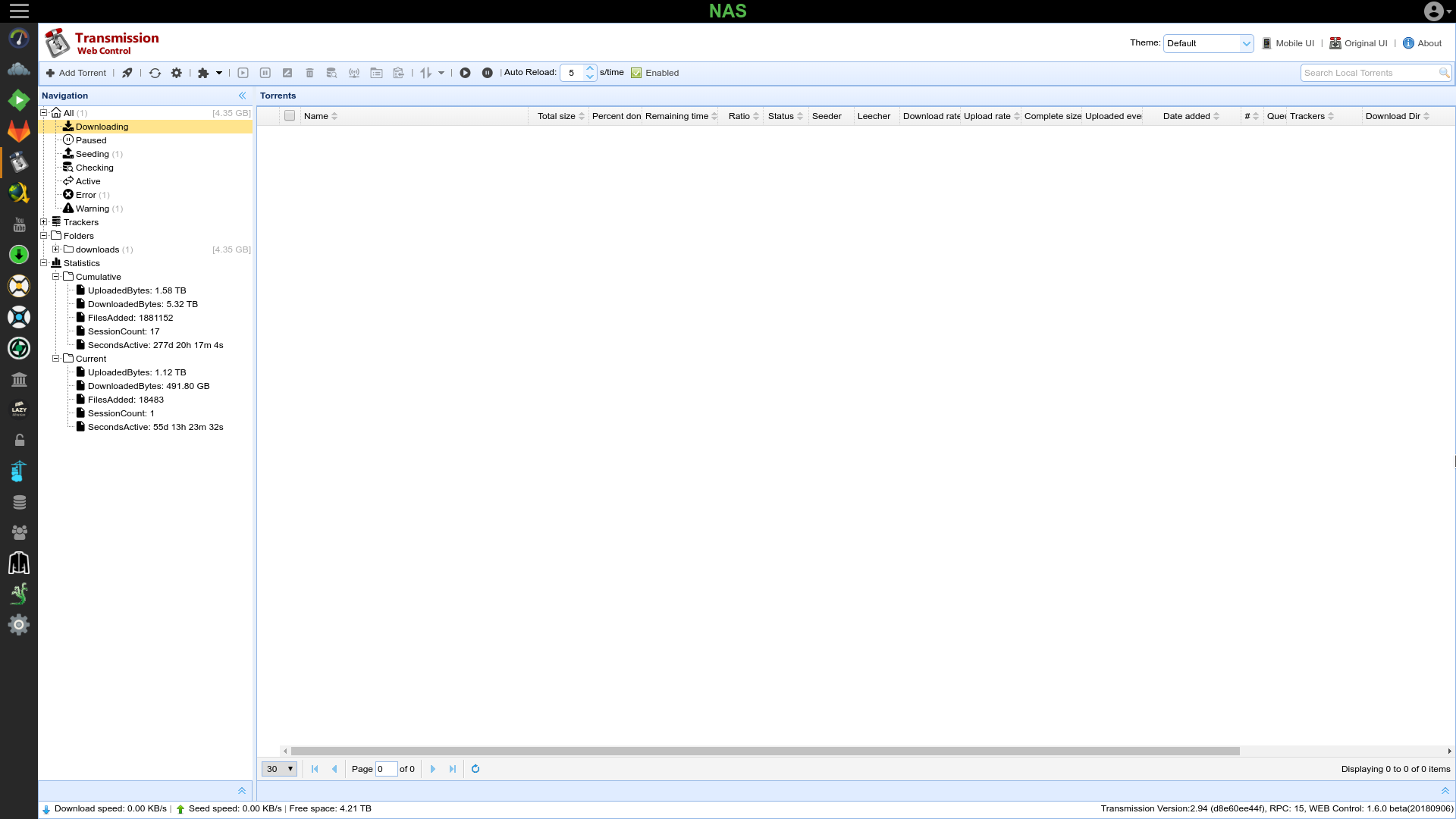

  • Transmission for torrents.
  • Youtube-dl with web-ui for video streams.
• Utilities:
  • Jackett.
  • Hydra2.

Version control system

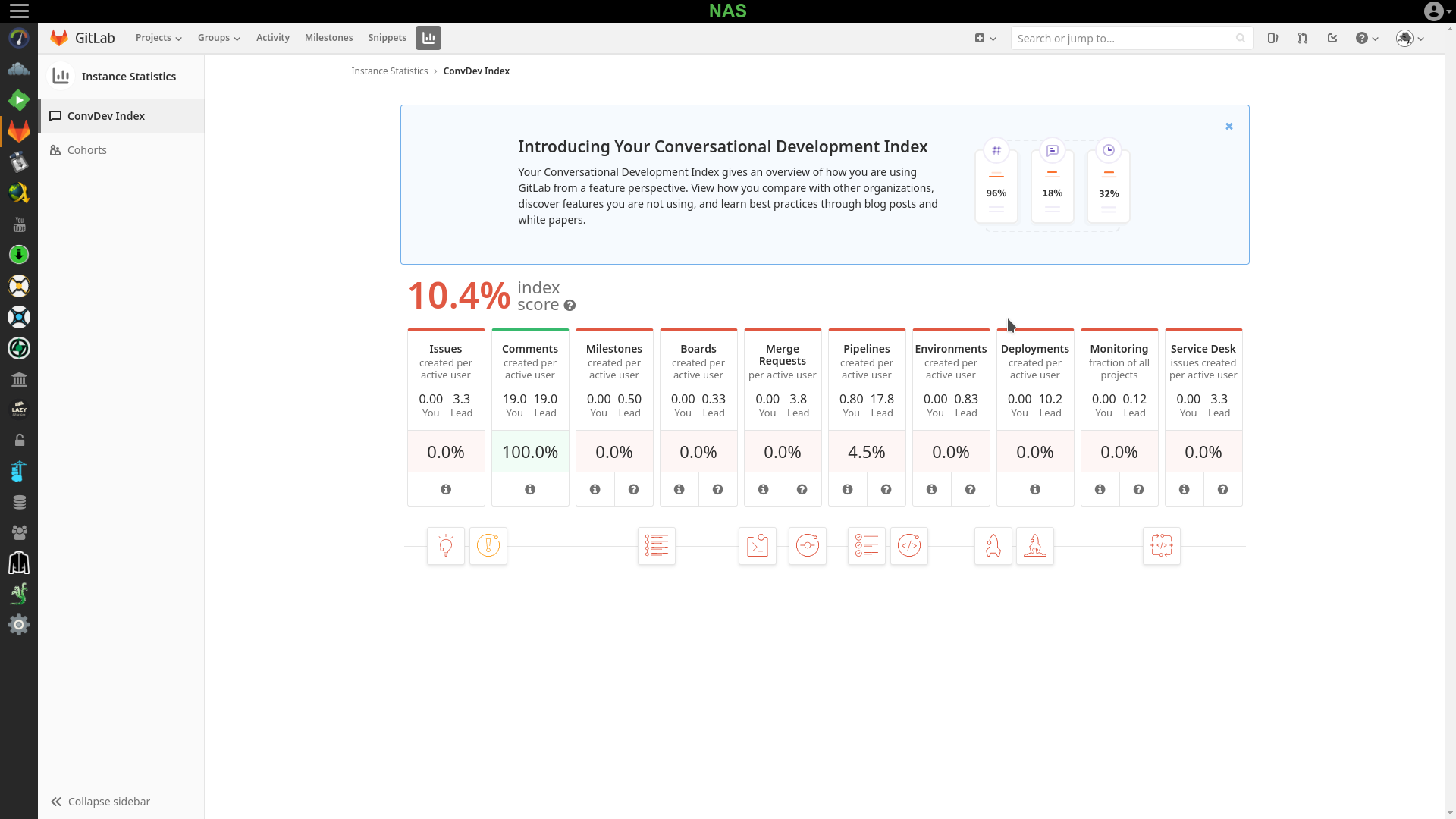

Implemented using GitLab.

Books library

• Database with automatic synchronization, based on patched Calibre. Only console. No user interaction required.

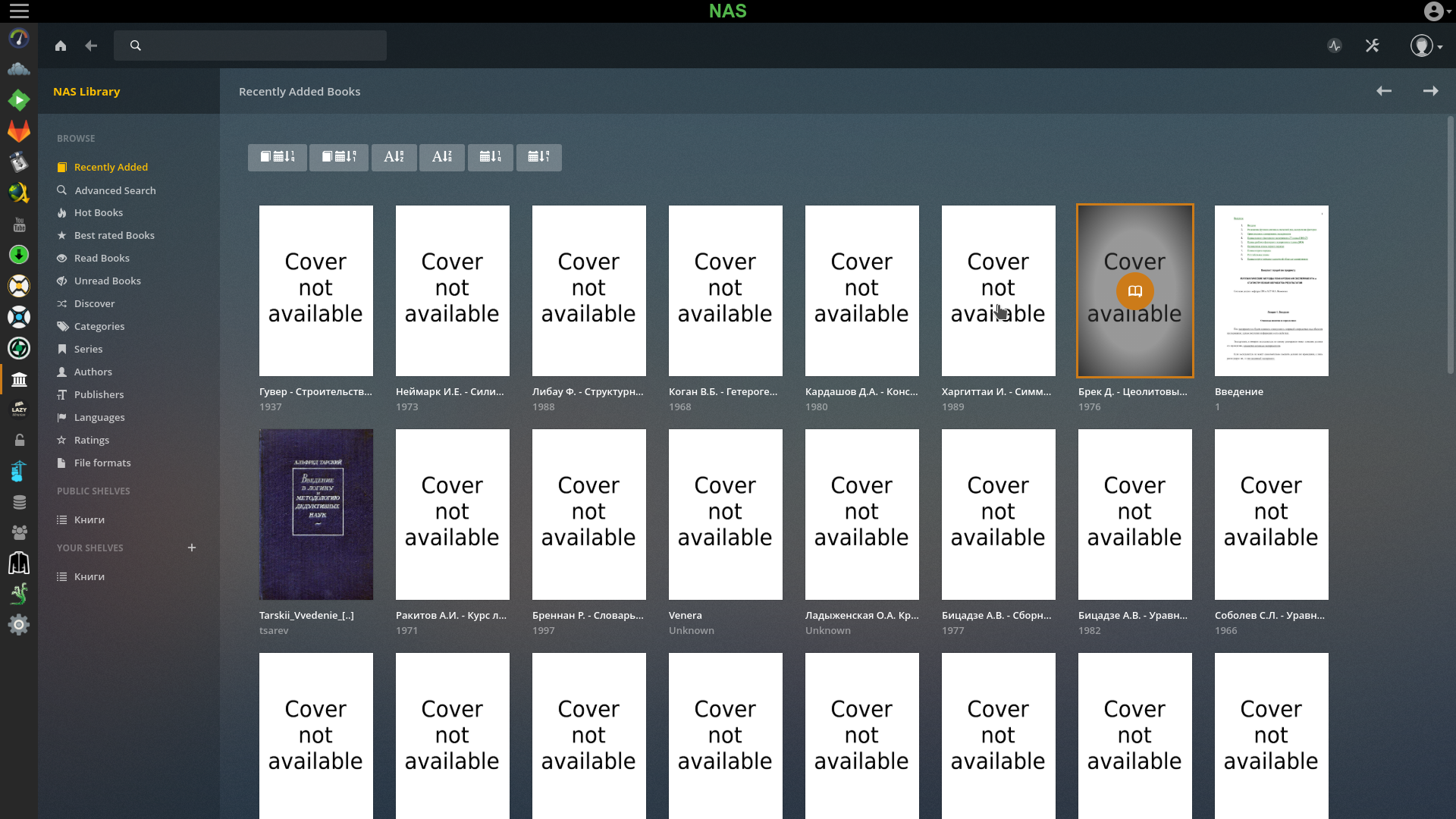

• Calibre-web as a web-interface.

This service has an independent repository here.

Media system

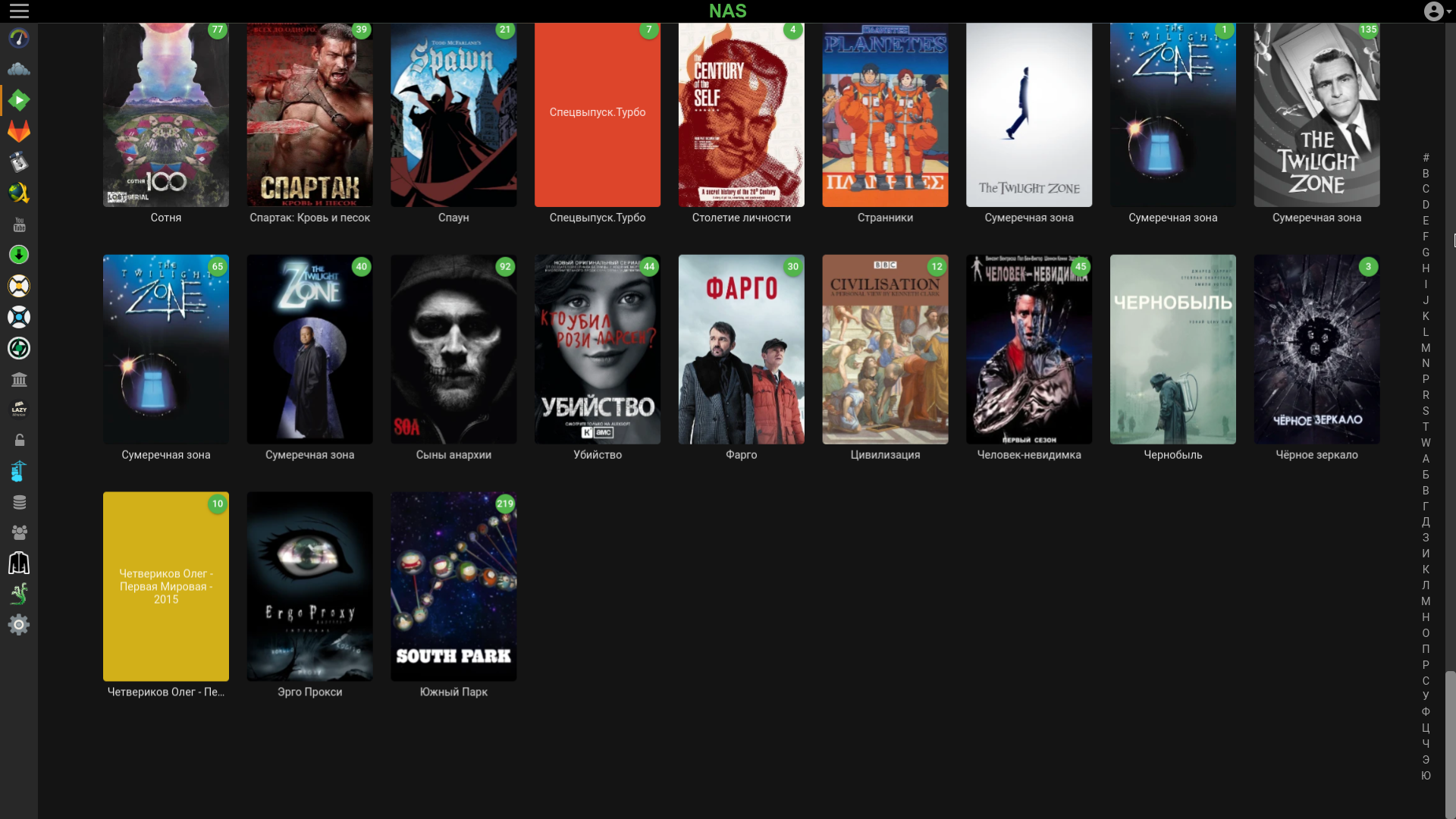

Implemented using Emby

LDAP server

• OpenLDAP Server.
• phpLDAPAdmin as an administrative interface.
• LDAP SSP for the user password changing.

Frontend

Organizr.

Alternatives

You can find here another services, such as SeaFile, but I don't use and support them inside NAS.

Note

This is a part of my article series on building secure NAS.
You can see a copy of the documentation in the docs directory.
