Android_boot_image_editor

A tool for reverse engineering Android ROM images.

Requirements

Make sure you have JDK17+ and Python3.

• Linux / WSL: sudo apt install git device-tree-compiler lz4 xz-utils zlib1g-dev openjdk-17-jdk gcc g++ python3 python-is-python3 p7zip-full android-sdk-libsparse-utils erofs-utils

• Mac: brew install lz4 xz dtc

• Windows: Install openssl and device-tree compiler with chocolate
  choco install openssl dtc-msys2 zip vim gzip 7zip

Getting Started

Put your boot.img to current directory, then start gradle 'unpack' task:

bashCopy
cp <original_boot_image> boot.img
./gradlew unpack

Your get the flattened kernel and /root filesystem under ./build/unzip_boot:

build/unzip_boot/
├── boot.json     (boot image info)
├── boot.avb.json (AVB only)
├── kernel
├── second        (2nd bootloader, if exists)
├── dtb           (dtb, if exists)
├── dtbo          (dtbo, if exists)
└── root          (extracted initramfs)

Then you can edit the actual file contents, like rootfs or kernel.
Now, pack the boot.img again

./gradlew pack

You get the repacked boot.img at $(CURDIR):

boot.img.signed

Well done you did it! The last step is to star this repo :smile

live demo

<!--  --> <p align="center"> <img src=doc/op.gif width="615" height="492"> </p>

Supported ROM image types

Image Type	file names	platforms	note
boot	boot.img, init_boot.img, boot-debug.img, boot-test-harness.img	all
vendor boot	vendor_boot.img, vendor_boot-debug.img, vendor_kernel_boot.img	all
recovery	recovery.img, recovery-two-step.img	all
vbmeta	vbmeta.img, vbmeta_system.img etc.	all
dtbo	dtbo.img	linux & mac
dtb	*.dtb	linux & mac
sparse images	system.img, vendor.img, product.img etc.	linux
OTA payload	payload.bin	all	Windows git-bash

Please note that the boot.img MUST follows AOSP verified boot flow, either Boot image signature in VBoot 1.0 or AVB HASH footer (a.k.a. AVB) in VBoot 2.0.

compatible devices

Device Model	Manufacturer	Compatible	Android Version	Note
Pixel 7 (panther)	Google	Y	13 (TQ2A.230505.002) <Br>2023)
ADT-3 (adt3)	Askey/Google	Y	12 (spp2.210219.010)	amlogic inside, <Br>Android TV
Pixel 3 (blueline)	Google	Y	12 (spp2.210219.008, <Br>2021)
Pixel 3 (blueline)	Google	Y	11 (RP1A.200720.009, <Br>2020)	more ...
Pixel 3 (blueline)	Google	Y	Q preview (qpp2.190228.023, <Br>2019)	more ...
Redmi K30 4G (phoenix[n])	XiaoMi	Y	10	verified by @eebssk1
TS10	Topway	Y	10	car headunit, @mariodantas
Pixel XL (marlin)	HTC	Y	9.0.0 (PPR2.180905.006, <Br>Sep 2018)	more ...
K3 (CPH1955)	OPPO	Y for recovery.img<Br> N for boot.img	Pie	more
Z18 (NX606J)	ZTE	Y	8.1.0	more...
Nexus 9 (volantis/flounder)	HTC	Y(with some tricks)	7.1.1 (N9F27M, Oct 2017)	tricks
Nexus 5x (bullhead)	LG	Y	6.0.0_r12 (MDA89E)
Moto X (2013) T-Mobile	Motorola	N
X7 (PD1602_A_3.12.8)	VIVO	N	?	Issue 35
Realme GT Neo 3	Realme	N	12	Issue 105

more examples

<details> <summary>working with recovery.img</summary>

Please remember to clean the work directory first.

bashCopy
rm *.img
cp <your_recovery_image> recovery.img
./gradlew unpack
./gradlew pack

</details> <details> <summary>working with vbmeta.img</summary>

bashCopy
rm *.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
./gradlew pack

</details> <details> <summary>clean workspace</summary> When you finished current work and need to clean the workspace for next image, it's a good idea to call the `clear` command:

bashCopy
./gradlew clear

</details> <details> <summary>working with boot.img and vbmeta.img</summary>

If your vbmeta.img contains hash of boot.img, you MUST update vbmeta image together.

bashCopy
rm *.img
cp <your_boot_image> boot.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
./gradlew pack

Your boot.img.signed and vbmeta.img.signd will be updated together, then you can flash them to your device.

</details> <details> <summary>working with vendor_boot.img + vbmeta.img (Pixel 5 etc.)</summary> Most devices include hash descriptor of vendor_boot.img in vbmeta.img, so if you need to modify vendor_boot.img, you need to update vbmeta.img together.

bashCopy
rm *.img
cp <your_vendor_boot_image> vendor_boot.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
./gradlew pack
./gradlew flash

Please note that to use 'gradle flash', your host machine must be connectted to your DUT with adb, and you already 'adb root'.

</details> <details> <summary>How to edit device tree blob(dtb) inside vendor_boot.img</summary>

If you want to edit the device-tree blob in place:

bashCopy
cp <your_vendor_boot_image> vendor_boot.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
==> now you can edit build/unzip_boot/dtb.dts directly
./gradlew pack

During unpack stage, dtb will be dumped to file build/unzip_boot/dtb, dts will be decompiled to build/unzip_boot/dtb.dts.
You can edit dtb.dts directly, and it will be compiled to dtb duing repack stage.

If you just want to replace the dtb with the one that is compiled outside this tool, please

bashCopy
cp <your_vendor_boot_image> vendor_boot.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
rm build/unzip_boot/dtb.dts
cp <your_dtb> build/unzip_boot/dtb
./gradlew pack

</details> <details> <summary>How to pull device tree blob(dtb) from a rooted device</summary>

If you have a rooted device and want to pull /proc/device-tree

bashCopy
touch fake.dtb
./gradlew pull

This tool will copy dtc to the target device via adb, and dump the dtb and dts file. Eventually you should get something like this

+--------+------------------------------+
|  What  |            Where             |
+--------+------------------------------+
| source | /proc/device-tree            |
+--------+------------------------------+
| DTB    | panther.dtb                  |
+--------+------------------------------+
| DTS    | build/unzip_boot/panther.dts |
+--------+------------------------------+

</details> <details> <summary>How to work edit device tree blob(dtb) file</summary>

If you have a dtb file and want to edit its content

bashCopy
cp <your_dtb_file> .
./gradlew unpack

This tool will decompile it and put the decompiled source to build/unzip_boot.

                        Unpack Summary of panther.dtb
+------+------------------------------+
| What |            Where             |
+------+------------------------------+
| DTB  | panther.dtb                  |
+------+------------------------------+
| DTS  | build/unzip_boot/panther.dts |
+------+------------------------------+

</details> <details> <summary>working with system.img</summary>

bashCopy
cp <your_system_image> system.img
./gradlew unpack

You get system.img.unsparse, that's a plain ext4 filesystem data.

</details> <details> <summary>How to disable AVB verification</summary>

The idea is to set flag=2 in main vbmeta.

bashCopy
rm *.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
vim -u NONE -N build/unzip_boot/vbmeta.avb.json  -c ":19s/0/2/g" -c ":wq"
./gradlew pack

Then flash vbmeta.img.signed to your device.

</details> <details> <summary>How to merge init_boot.img into boot.img</summary>

• unpack init_boot.img and copy out "build/unzip_boot/root".
• clear workspace by gradle clear, then unpack boot.img
• copy back the "build/unzip_boot/root"
• edit build/unzip_boot/boot.json

• change ramdisk.size to 1
• change ramdisk.file from "build/unzip_boot/ramdisk.img" to "build/unzip_boot/ramdisk.img.lz4"

</details> <details> <summary>work with payload.bin</summary>

• extract everything

Usage:

    gradle unpack

• extract only 1 specified partition
  Usage:

    gradle unpack -Dpart=<part_name>

Example:

    gradle unpack -Dpart=boot
    gradle unpack -Dpart=system

Note:
"build/payload/" will be deleted before each "unpack" task

</details> <details> <summary>work with apex images</summary>

AOSP already has tools like apexer, deapexer, sign_apex.py, these should suffice the needs on .apex and .capex.
Refer to Issue https://github.com/cfig/Android_boot_image_editor/issues/120

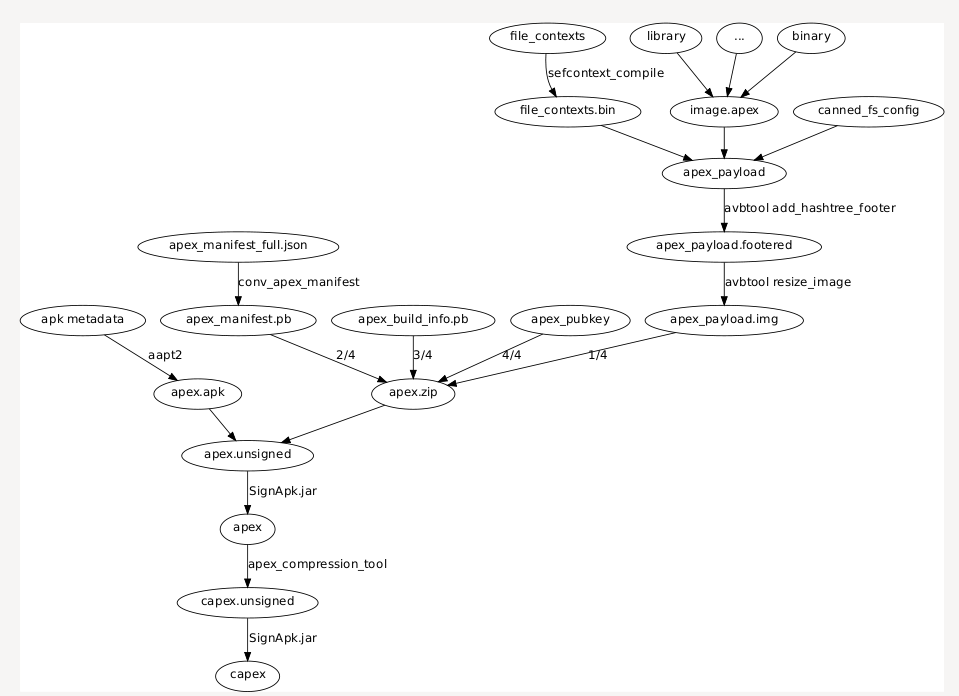

• For those who may be interested in apex generation flow, there is a graph here


</details> <details> <summary>How to work with vendor_dlkm.img</summary>

bashCopy
cp <your_vendor_dlkm.img> vendor_dlkm.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
# replace your .ko
./gradlew pack

Then flash vbmeta.img.signed and vendor_dlkm.img.signed to the device.

</details>

boot.img layout

Read boot layout of Android boot.img and vendor_boot.img.
Read misc layout of misc.img
