What is the language of Robotics?

This is a very deep question with difficult answers. If robotics is meant to equal or even surpass human capabilities, then the language of robotics should be able to describe human behaviour, all the way from muscle activation to intelligence. Achieving this on a single programming language seems like an impossible task. This project proposes a new framework where multiple domain specific languages are used together to describe the behaviour of a robot. Specifically, the Robotics Language (RoL) is a high level robotics programming language that generates ROS c++ nodes, HTML interfaces, or other elements.

Domain Specific Languages are computer languages specialised to a particular application domain. Such languages use the minimum information required to describe a particular concept for a domain, thus present an abstraction of information. This project uses the concept of abstraction languages to simplify programming by combining multiple domain specific languages in a single file.

The base RoL language has a structure similar to standard high-level programming languages

coffeescriptCopy
# A simple topic echo node
node(
  name:'example echo',

  definitions: block(
    # the input signal
    echo_in ∈ Signals(Strings, rosTopic:'/echo/in', onNew: echo_out = echo_in ),

    # the echo signal
    echo_out ∈ Signals(Strings, rosTopic:'/echo/out')
  )
)

The power of the RoL is in its ability to integrate mini-abstraction languages:

coffeescriptCopy
# A finite state machine
node(
  name:'example state machine',

  definitions: block(

    # a mini-language: code is defined within `<{ }>`
    FiniteStateMachine<{

      name:machine
      initial:idle

      (idle)-start->(running)-stop->(idle)
      (running)-error->(fault)-reset->(idle)
      (idle)-calibration->(calibrate)-reset->(idle)

    }>,

    # the start signal
    start ∈ Signals(Empty, rosTopic:'/start', onNew: machine.fire('start')),

    # the stop signal
    stop ∈ Signals(Empty, rosTopic:'/stop', onNew: machine.fire('stop'))

  )
)

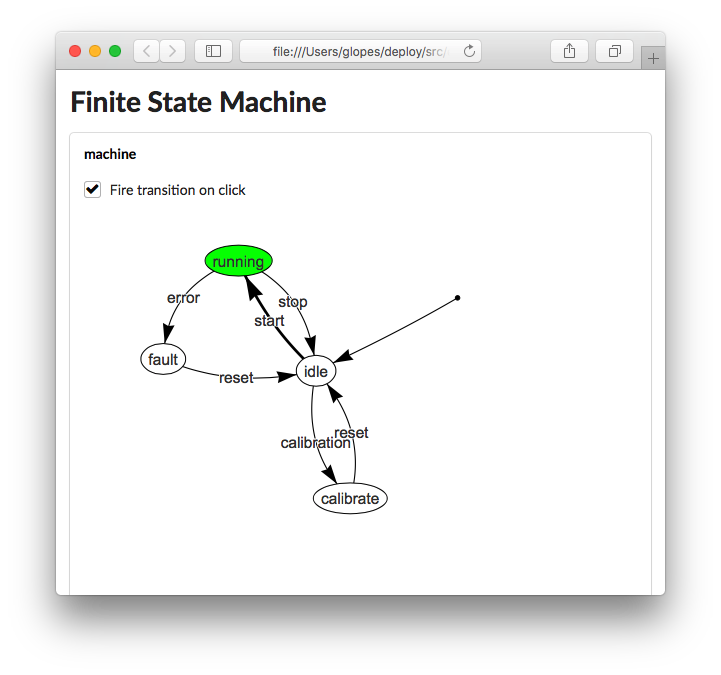

Automatically generated graphical user interfaces in the browser allow for development and monitoring.

RoL contains high-level language element abstractions that are very useful for robotics, such as Interval Temporal Logic for signals.

coffeescriptCopy
node(
  name:'temporal logic test example',

  definitions: block(

    # a signal
    x ∈ Signals(Booleans, rosTopic:'/temporal_logic/x'),

    when(□[1,0](x),
      print('always in the last second')),

    when(◇[4,1](x),
      print('eventually from 4 seconds to 1 second ago')),

    when(□[5,0](◇[1,0](x) ∧ ◇[1,0](¬x)),
      print('oscillating faster then 1Hz for at least 5 seconds'))

  )
)

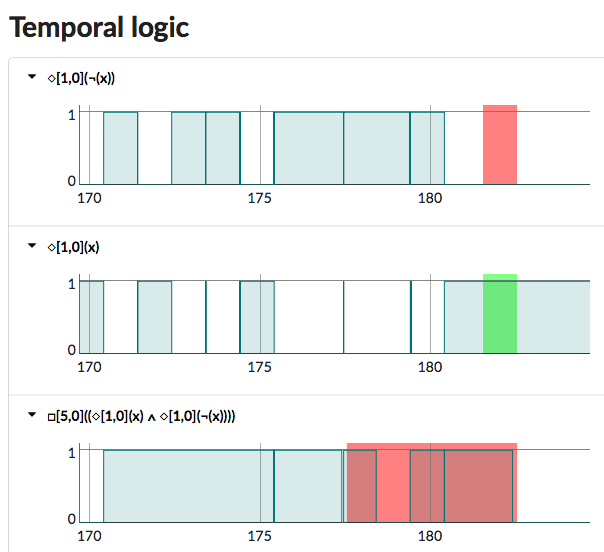

Generated GUIs visualise the signals in time and the outcome of the logic.

The RoL is in practice an open compiler where users can develop their own languages by means of plug-ins. The RoL is programmed in python and uses XML as the internal abstract syntax tree.

Documentation

• The Robotics Language

  • Philosophy
  • Tutorials
  • Reference

• The Robotics Language compiler

  • Philosophy
  • Tutorials
  • Reference

• Tutorials

  • IEEE IRC 2019

Install using pip

The best way to install is using pip:

shellCopy
pip install RoboticsLanguage

Install using github

To install this version in github, first git clone:

shellCopy
git clone https://github.com/robotcaresystems/RoboticsLanguage.git

Next, if you are a user run:

shellCopy
pip install .

If you are a developer run:

shellCopy
pip install -e .

Docker image scripts

To use the predefined docker scripts first install using pip:

shellCopy
pip install RoboticsLanguage

Next, if you are a ROS1 user run in the shell:

shellCopy
rol_docker

If you are a developer of the Robotics Language run in the shell:

shellCopy
rol_docker_development

For ROS2 use:

shellCopy
rol2_docker

or:

shellCopy
rol2_docker_development

Docker image "by hand"

Get the docker image:

shellCopy
docker pull roboticslanguage/rol

Create a folder to share files between docker and your system:

shellCopy
mkdir -p ~/RoL/docker_catkin_ws

Add easy launch commands by copying the lines below into your ~/.bashrc:

shellCopy
# where is your base RoL folder
export ROL_PATH=$HOME/RoL/

# alias to run robotics language docker
alias rol_docker='xhost +local:docker; \
  docker run -it --rm \
  --name="rol_docker" \
  --env=DISPLAY \
  --env=XDG_RUNTIME_DIR \
  --env=QT_X11_NO_MITSHM=1 \
  --device=/dev/dri:/dev/dri \
  -v /tmp/.X11-unix:/tmp/.X11-unix:rw \
  -v /etc/localtime:/etc/localtime:ro \
  -v "${ROL_PATH:?}/docker_catkin_ws:/home/roboticslanguage/catkin_ws/" \
  --workdir /home/roboticslanguage/examples \
  --net=host \
  --add-host rol_docker:127.0.0.1 \
  --hostname=rol_docker \
  roboticslanguage/rol'
# alias to attach to an existing rol_docker
alias rol_docker_attach='docker exec -it -e "COLUMNS=$COLUMNS" -e "LINES=$LINES" rol_docker bash'

Next start the docker image

shellCopy
source ~/.bashrc
rol_docker

You can open another shell by running rol_docker_attach.

For the first time, setup the user rights in the shared folder:

shellCopy
sudo chown $(whoami):$(whoami) ~/catkin_ws

Once in the docker, everything is configured. You can compile the example:

shellCopy
rol 1_hello_world.rol -c

Make sure to source for the first time:

shellCopy
source ~/catkin_ws/devel/setup.bash

Now you are ready to launch:

shellCopy
rol 1_hello_world.rol -l

Examples without docker

The following command will copy a collenction of examples into the current folder:

shellCopy
rol --copy-examples-here

Next try the examples:

shellCopy
rol 1_hello_world.rol -c

Make sure to source for the first time:

shellCopy
source ~/catkin_ws/devel/setup.bash

Now you are ready to launch:

shellCopy
rol 1_hello_world.rol -l

Note: if you are not using the docker images and you don't have a catkin workspace make sure to run:

shellCopy
mkdir -p ~/catkin_ws/src
cd ~/catkin_ws
catkin init

After compiling the rol package for the first time make sure to source it:

shellCopy
source ~/catkin_ws/devel/setup.bash

Work in progress

The Robotics Language is continuously evolving. Not all features are implemented. If find errors or you wish a new feature please let us know.
