Untold Engine

Untold Engine is a Swift + Metal 3D engine for macOS, iOS, and visionOS — with native Apple Vision Pro support and a growing focus on spatial computing — built for developers who:

Want full control over rendering and systems
Prefer working directly with Swift + Metal
Are building XR, 3D, or visualization applications
Need to handle large scenes, streaming data, or custom pipelines

If you've hit the ceiling of what existing engines allow on Apple platforms, this is for you.

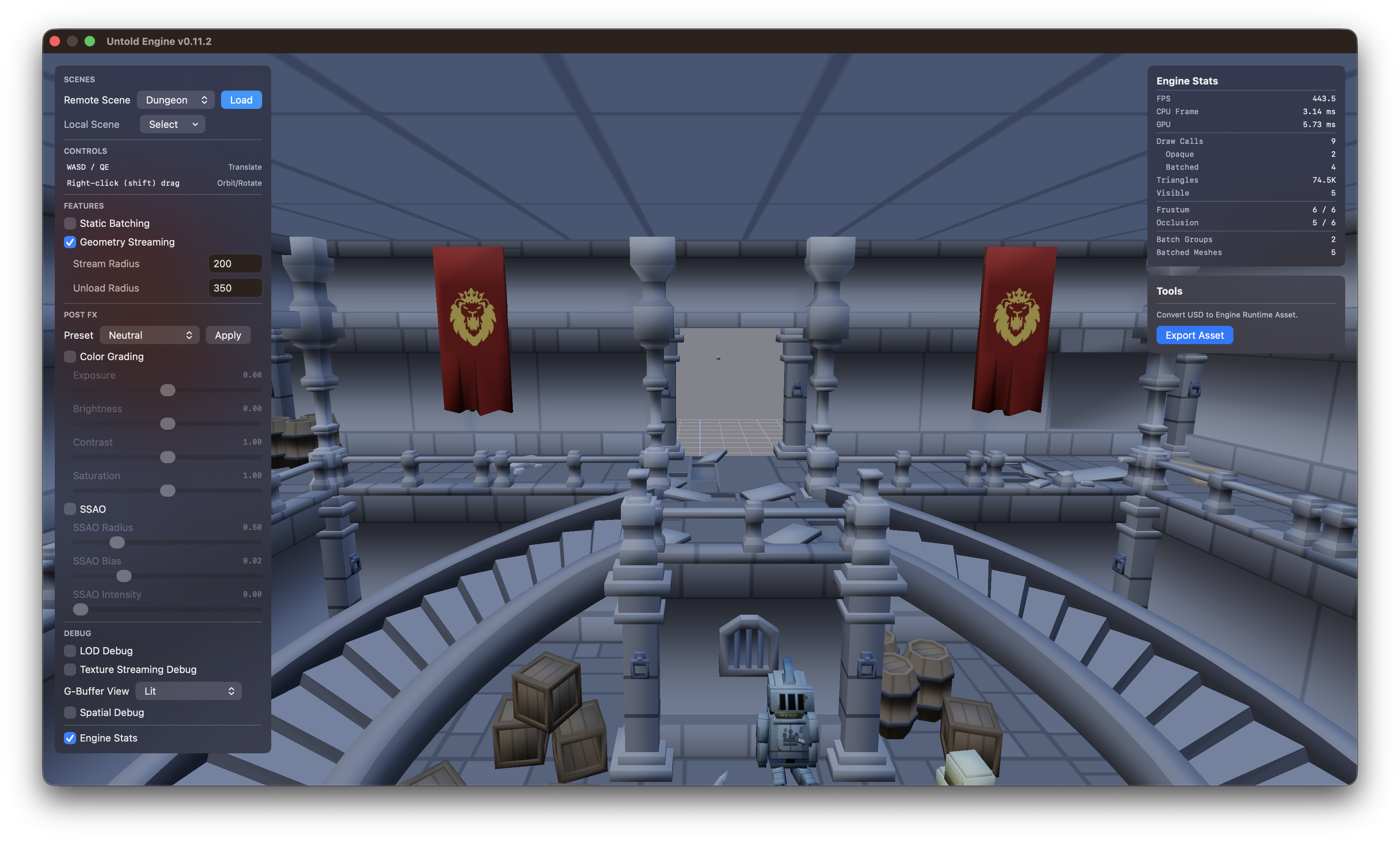

untoldengine-image

Watch It in Action — Apple Vision Pro Demos

Creator & Lead Developer:
http://www.haroldserrano.com

🚀 Try the Engine Right Now

The best first step is to run the Starter Demo. It is intentionally small and
shows the basic shape of an Untold Engine app without the extra systems used by
the larger showcase.

Recommendation: Use the latest stable release instead of the develop
branch. The develop branch is the bleeding-edge version of Untold Engine and
is updated frequently, so it may contain unstable changes or regressions.

Clone the repository and launch the Starter Demo:

bash
git clone https://github.com/untoldengine/UntoldEngine.git
cd UntoldEngine
git checkout v0.13.3
swift run starterdemo

After that, run the focused demos based on what you want to learn:

Demo	Command	Start here when you want to learn
Starter Demo	`swift run starterdemo`	The minimal app structure: renderer setup, camera, light, input, and a simple scene.
Interaction / Gameplay Demo	`swift run interactiongameplaydemo`	Gameplay-style movement, input handling, animation switching, physics pause/resume, and parented entities.
Rendering Quality Demo	`swift run renderingqualitydemo`	Post-processing controls such as color grading, SSAO, bloom, vignette, depth of field, anti-aliasing, and debug views.
Large Scene Streaming Demo	`swift run largescenestreamingdemo`	Manifest-driven tiled scene streaming, LOD, batching, streaming stats, and large-world traversal.
Exporter Pipeline Demo	`swift run exporterpipelinedemo`	Loading exported `.untold` assets, applying exported animation clips, and checking validation metadata.
Showcase Demo	`swift run showcasedemo`	A broader engine showcase that combines many systems in one app. Use this after the focused demos.

The demos live under Sources/Demos. The older swift run untolddemo command
still works as a compatibility alias for the Showcase Demo.

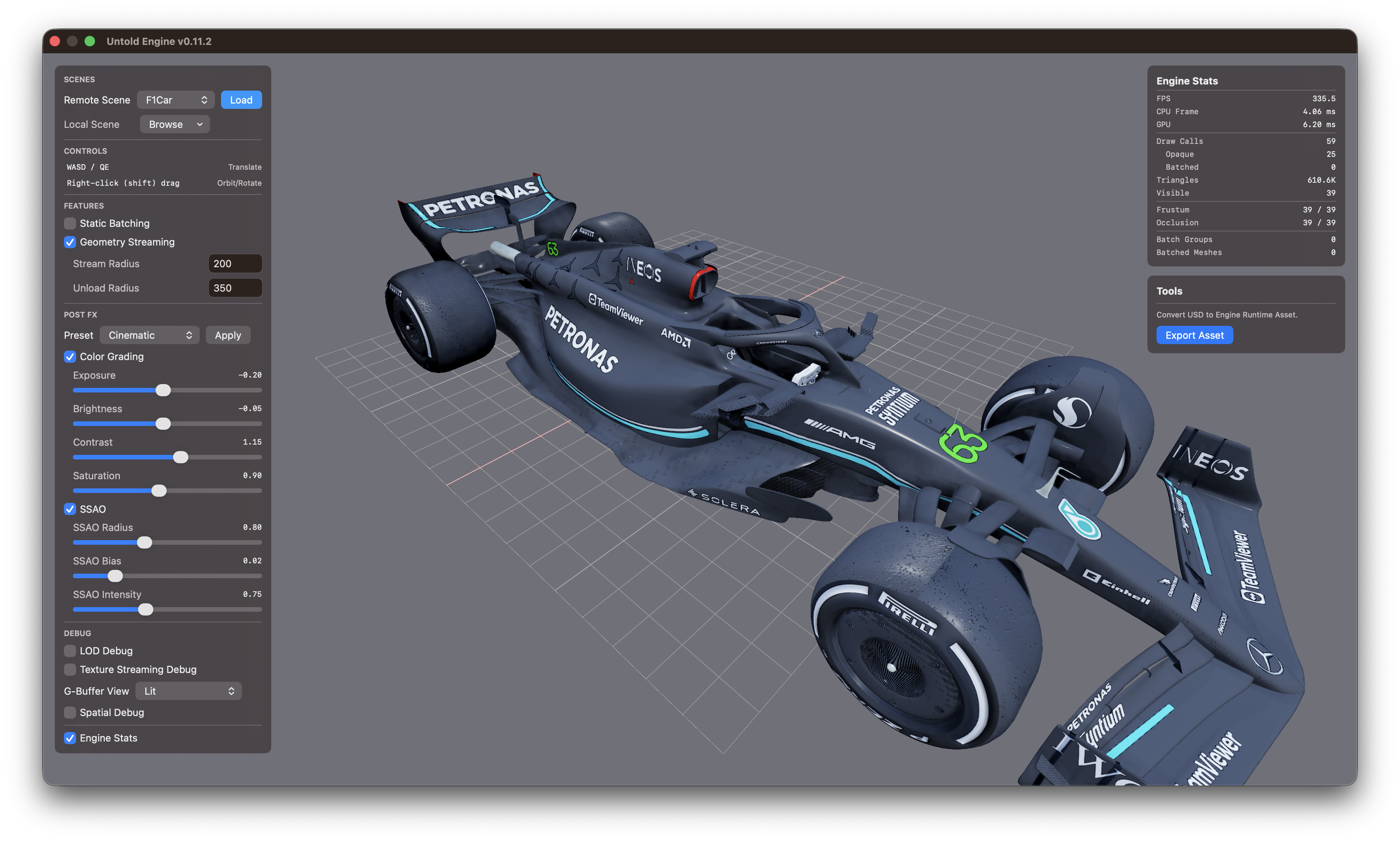

untoldengine-image-2

I want to try my own USDZ

Untold Engine uses its own native asset format: .untold.

To try your own USDZ file, first convert it to .untold. The recommended workflow is to use the Untold Engine Blender add-on: import or open your model in Blender, then export it with File > Export > Untold (.untold).

The add-on can export models already loaded in Blender, so it also works with other Blender-supported source formats such as .fbx, .glb, and .obj.

For installation and export details, see Using The Blender Plugin.

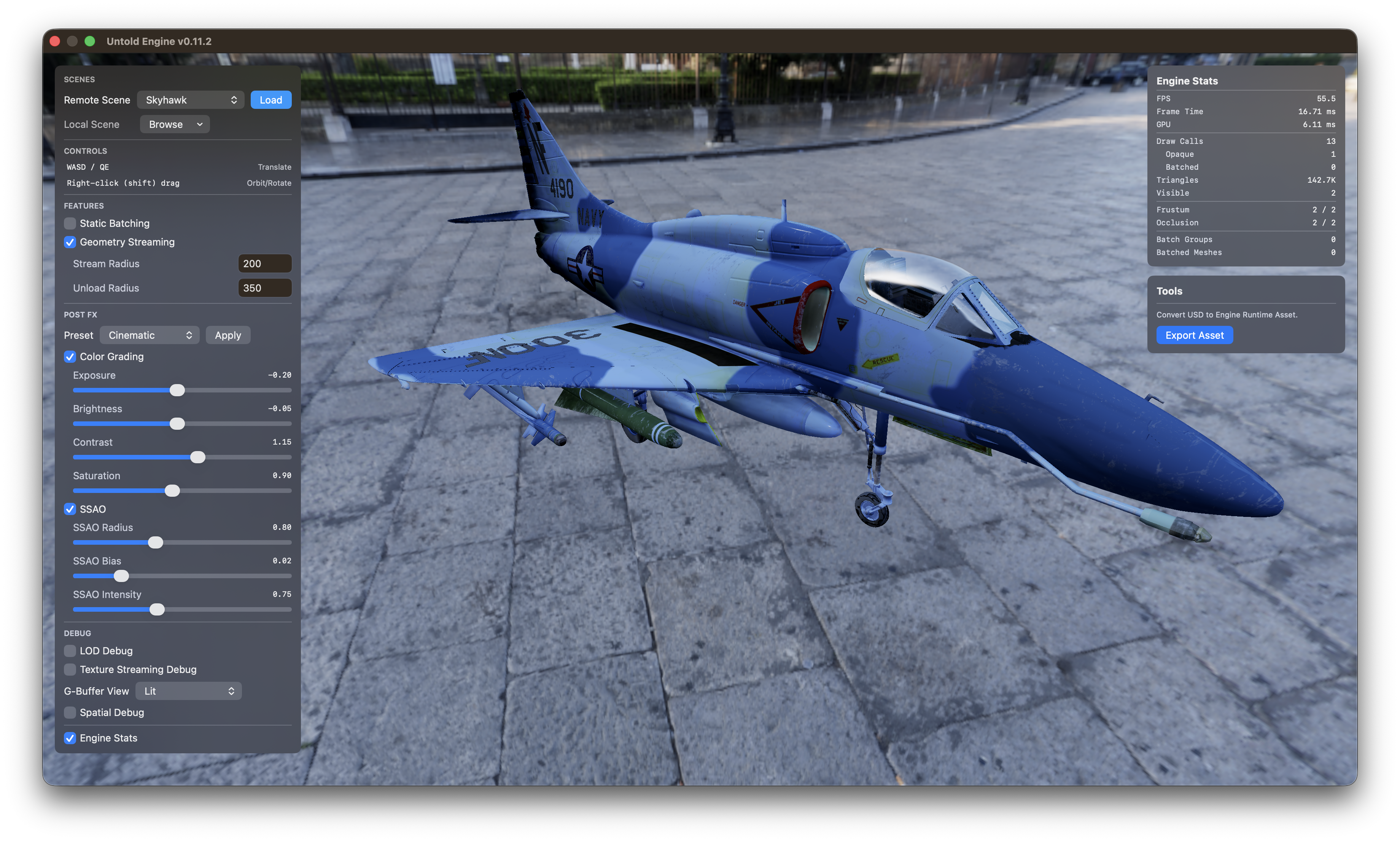

untoldengine-image-3

Getting Started

To create your own project/game using the Untold Engine, see
Getting Started.

🧱 Core Direction

Untold Engine is built around three focused goals:

Spatial Engine First — Designed for spatial computing applications. LOD, geometry streaming, and static batching exist to support large, real-world-scale environments where presence and performance both matter.
XR / visionOS Support — Spatial input, AR workflows, and Vision Pro support are functional today and expanding with each release.
Metal-First Architecture — The rendering layer stays close to Metal to maintain performance and control, without abstraction layers getting in the way.

🖼 Example Use Cases

Untold Engine is well-suited for:

XR applications (Vision Pro, ARKit-based apps)
Large-scale scene visualization (cities, archviz, datasets)
Custom rendering pipelines and experiments
Simulation tools and interactive 3D systems

Current Features

Apple Platform Coverage — Unified Swift + Metal codebase for macOS, iOS, and visionOS
Rendering Pipeline — Metal renderer with PBR/IBL workflows and post-processing across standard and XR paths
AR and XR Runtime Support — Built-in AR workflows plus visionOS integration and spatial interaction support
ECS + Scene Graph Core — Component-based architecture with hierarchical transforms and scene root transform controls
Async Content Loading — Asynchronous loading pipeline for scenes and assets to improve responsiveness on large worlds
LOD and Streaming — LOD support with geometry streaming, streaming regions, and memory budget management
Static Batching and Culling — Static batching, octree acceleration, and occlusion culling for large-scene performance
Advanced Picking — Scene, ground, and GPU ray picking with octree-backed intersection paths
Spatial Input Features — XR spatial input helpers including anchored pinch drag, distance tracking, and two-hand rotation
Scripting System (USC) — Untold Script Core with multi-script support plus camera, math, and physics APIs (Experimental)
Gameplay Systems — Physics, animation, camera waypoint, and input systems (keyboard, mouse, touch, and gamepad)
Gaussian Splat Rendering — Native Metal support for rendering and compositing 3D Gaussian content
Tooling Integration — Optional Untold Editor workflow and Swift Package Manager integration

Engine API

Engine Architecture

Roadmap

See open issues for planned features and known improvements.

Support

For help or questions, open a GitHub Issue.

Contributing

Contributions are welcome — whether that's fixing bugs, improving systems, writing documentation, or proposing ideas.

Before submitting a pull request, please review the Contributing Guidelines.

All contributions are licensed under MPL-2.0.

Contributor License Agreement

By submitting a pull request you agree that your contributions may be distributed under the Mozilla Public License 2.0. See CONTRIBUTOR_LICENSE_AGREEMENT.md for details.

GitHub Sponsors

A huge thanks to the people helping shape the Untold Engine.

License

Untold Engine is licensed under the Mozilla Public License 2.0 (MPL-2.0).

This allows developers to build commercial applications while ensuring improvements to the engine itself remain open.

Use Case	Allowed	Obligation
Build games	Yes	Game code can remain proprietary
Commercial apps	Yes	No royalties
Modify engine	Yes	Modified engine files remain MPL
Create plugins	Yes	Any license allowed

Full license: https://www.mozilla.org/MPL/2.0/

Need to keep engine modifications private? A commercial license is available for teams that require it. See COMMERCIAL.md for details.

Trademark

"Untold Engine" and the Untold Engine logo are trademarks of Untold Engine Studios. Forks may not use the name in a way that implies official endorsement. See TRADEMARKS.md.
