lidarslam_ros2

Turn a rosbag into a map you can actually drive on.

ROS 2 LiDAR SLAM that outputs an Autoware-ready map bundle — pointcloud_map/,
map_projector_info.yaml, and auto-generated lanelet2 — and proves it by driving
autonomously on that map in AWSIM. Frontend is RKO-LIO (MIT), backend is
graph_based_slam (BSD-2). No GPL components on the default workflow.

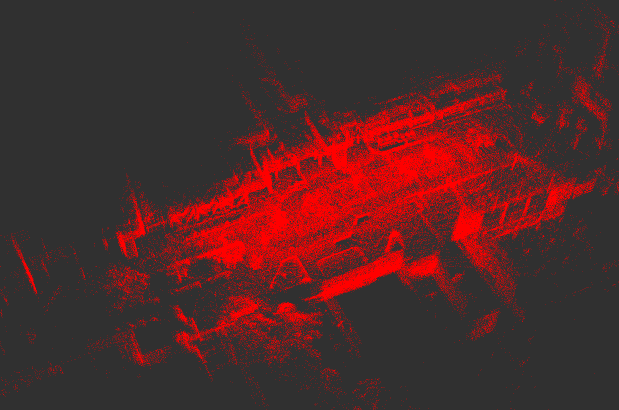

Shinjuku point cloud map built from a demo rosbag with this stack — start at the
Quickstart. For the animated map flythrough and the optional photoreal
render, jump to Photoreal 3DGS map. develop is the
default branch; latest release notes: v0.6.0.

Why lidarslam_ros2

Most LiDAR SLAM stacks stop at a trajectory and a point cloud. This one ships the
artifacts you need downstream:

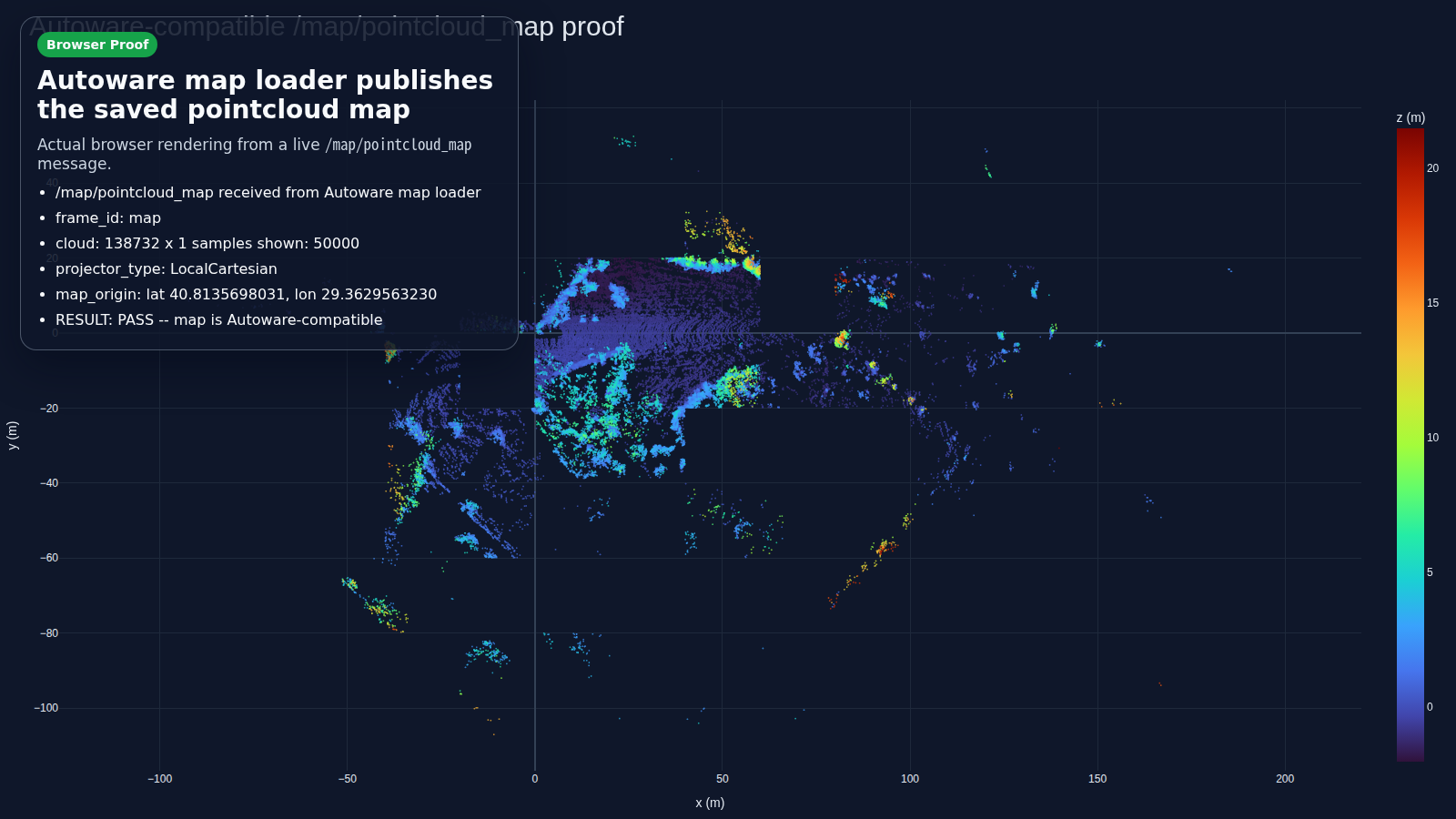

• Autoware-ready output — pointcloud_map/ + map_projector_info.yaml open
  directly in Autoware map loaders; verify_autoware_map.py prints
  map_verify: PASS on every saved bundle.
• lanelet2 auto-generation — drivable lanelets from the SLAM trajectory,
  validated for multi-segment Autoware routing.
• Driven, not just plotted — the map → autonomous-driving loop is dogfooded
  end-to-end in AWSIM (tutorial).
• Surveyed ground truth — releases are gated in CI by per-dataset APE
  thresholds, including total-station checkpoints on a Livox MID-360
  (accuracy).
• Loop closure, GPL-free — built-in Scan Context by default, plus opt-in
  BEV / SOLiD / STD/BTC-style Triangle descriptors and 3D-BBS verification.
• Deterministic offline mapping — graph_slam_offline_runner (backend,
  recorded odometry bag) and scan_matcher_offline_runner (frontend, raw bag)
  produce byte-identical trajectories, loop edges and submaps on every run
  (verified 3-run on MID-360 and NTU VIRAL); the release gate enforces both
  (--offline-determinism-bag / --frontend-determinism-bag).
• Globally refined, quality-gated maps — clean-room plane bundle adjustment
  refines submap poses offline (default on) under holdout-validated quality
  thresholds; APE and crispness improve together on every GT substrate
  (evidence).
• GNSS georeferencing — optional GNSS constraints and projector metadata for
  real-world coordinates.

mermaidCopy
flowchart LR
    bag(["rosbag2"]) --> rko["RKO-LIO<br/>LiDAR-inertial odometry"]
    rko --> gbs["graph_based_slam<br/>loop closure + graph optimization"]
    gbs --> bundle["Autoware map bundle<br/>pointcloud_map · lanelet2 · projector info"]
    bundle --> drive["AWSIM × Autoware<br/>autonomous driving"]
    bundle -.-> gs3d["3DGS photoreal map<br/>(optional)"]

Quickstart

Try it with Docker (one command, no build)

bashCopy
docker run --rm -v "$PWD/lidarslam_output:/lidarslam_ws/output" \
  ghcr.io/rsasaki0109/lidar_slam_ros2:humble

This pulls the prebuilt image, downloads a public Livox MID-360 driving bag
(517 MB, Zenodo, CC-BY 4.0) and runs the
full RKO-LIO + graph_based_slam pipeline headless — a few minutes later
./lidarslam_output/mid360_demo/ holds the Autoware-ready map bundle and
the loop-closed trajectory (traj_corrected.tum). Add
-v lidarslam_demo_data:/lidarslam_ws/datasets to cache the bag between runs;
appending bash instead drops you into an interactive shell.

Build from source

bashCopy
cd ~/ros2_ws/src
git clone --recursive https://github.com/rsasaki0109/lidarslam_ros2.git
cd ..
rosdep install --from-paths src --ignore-src -r -y
colcon build --symlink-install --cmake-args -DCMAKE_BUILD_TYPE=Release
source install/setup.bash

If you cloned without --recursive: git -C src/lidarslam_ros2 submodule update --init --recursive.

Then run one public dataset end to end — NTU VIRAL tnp_01 (~580 s outdoor bag)
through RKO-LIO + graph_based_slam into an Autoware-loadable map:

bashCopy
cd src/lidarslam_ros2
bash scripts/download_ntu_viral_tnp01.sh
bash scripts/run_autoware_quickstart.sh
python3 scripts/verify_autoware_map.py output/.../pointcloud_map

Use your own bag

bashCopy
bash scripts/run_autoware_map_beginner.sh /path/to/rosbag2

One command turns the bag into a complete Autoware map bundle:
pointcloud_map/ tiles, map_projector_info.yaml, and a lanelet2_map.osm
generated from the loop-closed trajectory.

Or invoke the launch files directly:

bashCopy
ros2 launch lidarslam rko_lio_slam.launch.py \
  bag_path:=/path/to/rosbag2 \
  lidar_topic:=/os_cloud_node/points \
  imu_topic:=/os_cloud_node/imu
ros2 service call /map_save std_srvs/srv/Empty

Required topics, optional GNSS / IMU pre-integration, and the dynamic-object
filter parameters are documented in docs/workflows.md.

Drive on your map (AWSIM × Autoware)

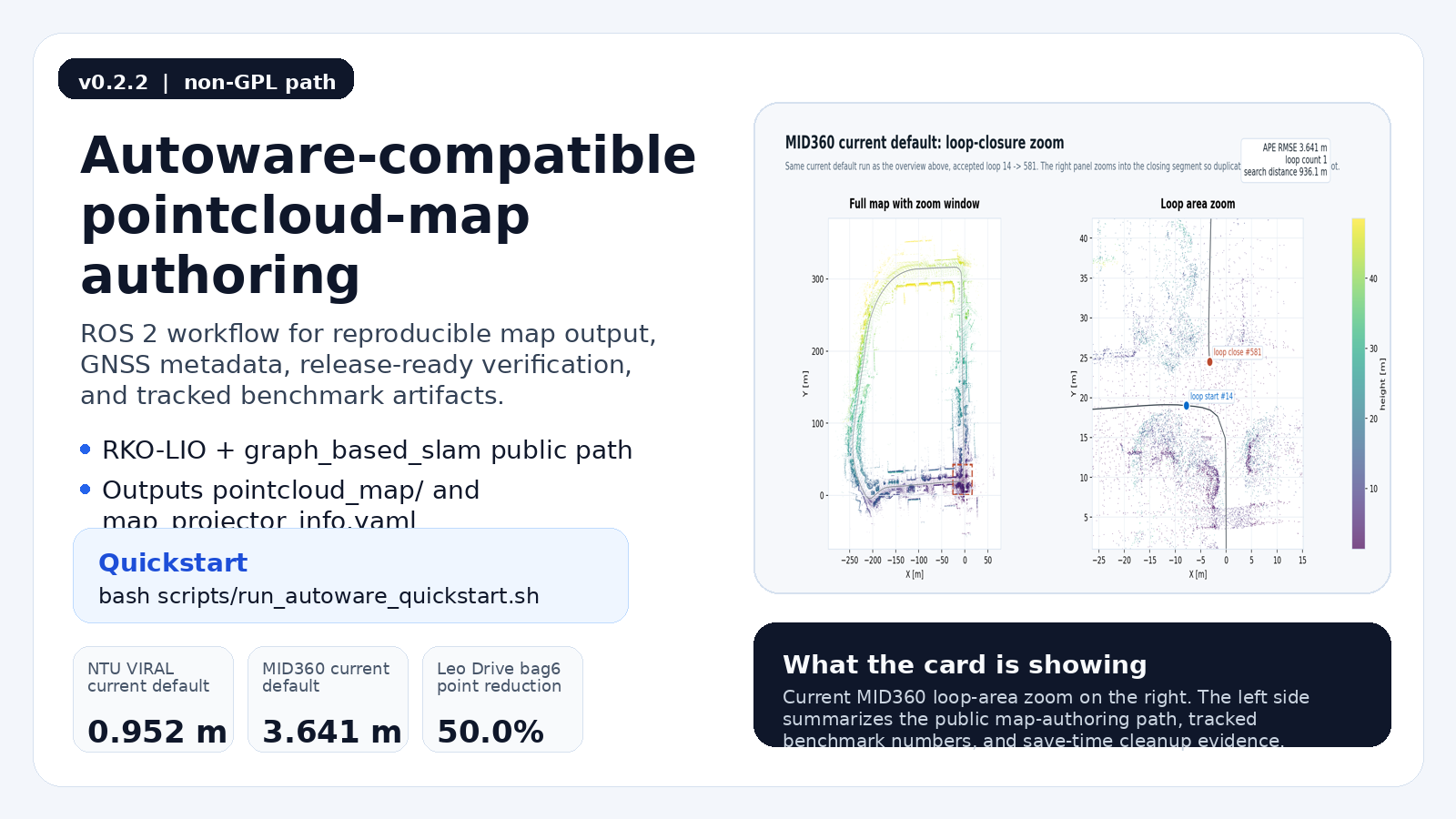

Click the card for the demo video.

bashCopy
bash scripts/test_awsim_setup.sh
bash scripts/run_awsim_selfmade_map_demo.sh

Builds the Autoware map bundle from your SLAM output, generates lanelet2 from the
trajectory, and brings up AWSIM + Autoware to drive on it. Multi-terminal bringup
and lanelet2 notes: docs/awsim-autonomous-driving-tutorial.md.

Accuracy

Current numbers from the release-gate profiles (scripts/release_profiles.yaml).
Every release is blocked in CI by these per-dataset thresholds.

Dataset	Sensor	Reference	APE RMSE	Gate (pass)
NTU VIRAL tnp_01 (outdoor, ~580 s)	Ouster OS1-16 + VN-100	Leica prism ground truth	0.95 m (best 0.87)	≤ 1.00 m
RTK-SLAM Construction Hall 2 (indoor, ~600 s)	Livox MID-360	total-station checkpoints¹	0.154 m (median 0.061)	≤ 0.30 m
RTK-SLAM Construction Hall 1 (indoor, ~741 s)	Livox MID-360	total-station checkpoints¹	0.403 m (median 0.263)	≤ 0.55 m
RTK-SLAM Stadtgarten 2 (outdoor park, ~876 s)	Livox MID-360	total-station checkpoints¹	0.835 m (median 0.327)	report-only²
RTK-SLAM Stadtgarten 1 (outdoor park, ~1 km loop)	Livox MID-360	total-station checkpoints¹	1.666 m (median 1.511)	report-only²
Newer College math-hard (~320 m loop)	Ouster OS0-128	prism ground truth	reported separately	≤ 0.10 m

¹ Surveyed checkpoints from the public RTK-SLAM dataset (CC-BY 4.0), scored like
its published baselines (dense odometry trajectory).
² Outdoor profiles soak as report-only before graduating; the former GLIM
cross-validation gate is also report-only since v0.5. Methodology and
caveats: docs/comparison.md.

Reproduce locally:

bashCopy
bash scripts/run_rko_lio_graph_benchmark.sh
bash scripts/run_release_readiness_checks.sh --fail-on-profiles

Details and optional MID-360 / production-bundle gates: docs/benchmarking.md.

Photoreal 3DGS map (optional)

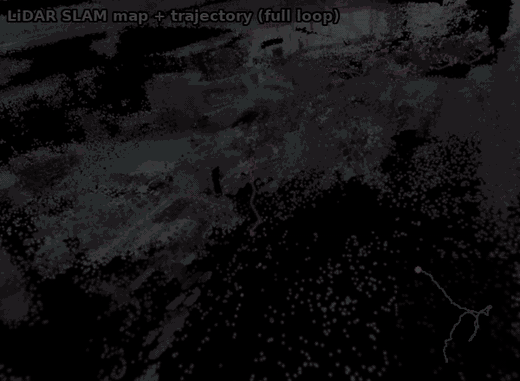

Below, the SLAM deliverable itself — the point-cloud map in real camera
colours (the synced images projected onto the LiDAR points) with the estimated
walking trajectory — as a follow-camera flythrough riding the full 60 m loop of
the RTK-SLAM Construction Hall sequence (CC-BY 4.0), the same sequence the
release gate scores against:

The same SLAM output plus synced camera images can also be trained into a
photoreal 3D Gaussian Splatting scene — LiDAR-primed (no COLMAP), trained with
gsplat (Apache-2.0) — and spun in your browser → (no install, no GPU):

bashCopy
python3 tools/gaussian_splatting/render_map_flythrough.py --help  # the flythrough above (--color-mode rgb)
bash scripts/run_rtkslam_3dgs_flythrough.sh   # photoreal 3DGS (or run_koide_3dgs_flythrough.sh)

Pipeline, quality levers, the interactive viewer, and data-suitability notes: docs/3dgs-map-tutorial.md.

Docs

• Getting started: Autoware quickstart · Operator workflows · Autoware Foxglove
• Pipelines: AWSIM autonomous-driving tutorial · Autoware-compatible map authoring · 3DGS map tutorial
• Benchmarking: Benchmarking and release gate · Comparison
• Project: v0.2.2 release notes · Contributing · Changelog · Releasing

Preview the doc site locally: python3 -m mkdocs serve.

Support and license

ROS 2 distro	Ubuntu	Scope
Humble	22.04	default workflow build + package tests in CI
Jazzy	24.04	default workflow build + package tests in CI; Autoware dogfood exercised locally

graph_based_slam is BSD-2-Clause; RKO-LIO, DLIO, and the optional vendored
3D-BBS are MIT; FAST_GICP is BSD-3-Clause; built-in Scan Context is local. GPL-only
components (Thirdparty/lio-sam, Thirdparty/3d_bbs) are excluded via COLCON_IGNORE.

Quality gates

bashCopy
bash scripts/run_default_ci_checks.sh
bash scripts/run_release_readiness_checks.sh --ape-threshold 0.10

Reference commands and parameter pointers live in docs/workflows.md.

---

If this project saves you mapping time, a ⭐ helps others find it.
